LiFePO4 lithium Battery, ESS, Energy Storage System module, customized battery packs

Key Points for Quality control:

Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.

Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.

100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.

Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.

Certifications:

Product advantages:

• Product advantages:


• Real double protection (comply with UL1973 and IEC62619).

• High Temperature Tolerance.

• Max. 16pcs in Parallel to get Max. 86kwh system.

• Compatible with most Brands inverters.

• Modular, Scalable & Proven Performance.

• Maintenance Free.




HC48106-W module could be compatible with the inverters as below:

Operating instruction:

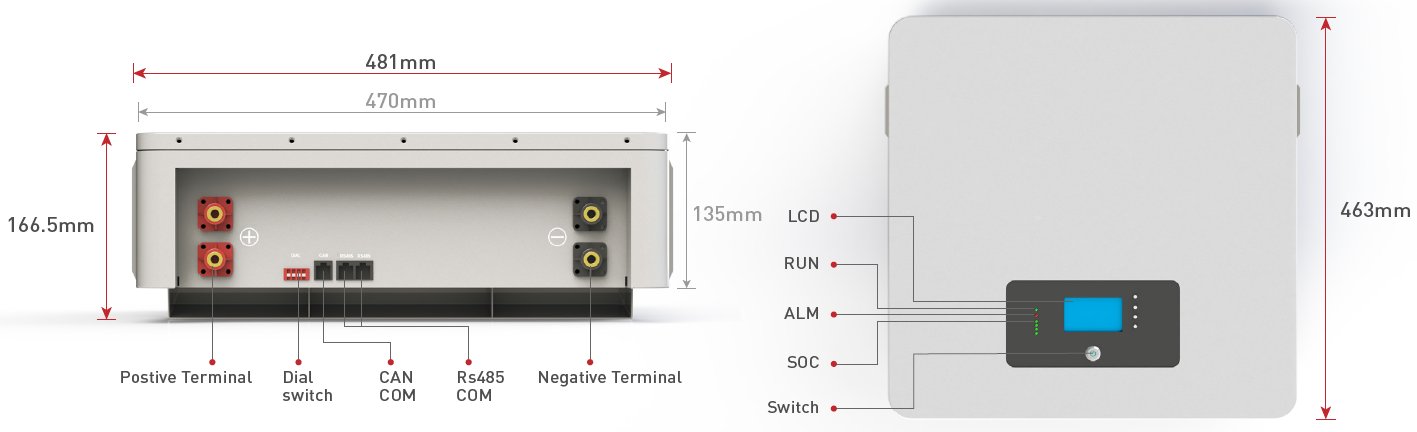

• Step 1: learn Interface Instruction and dimensions:

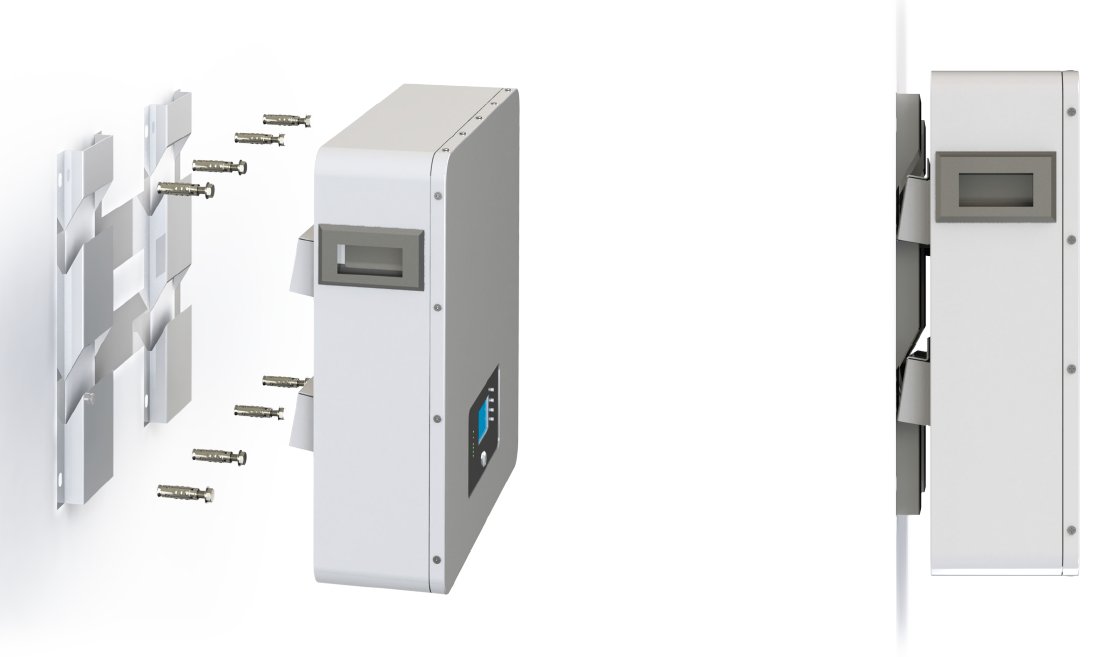

• Step 2: Installation:

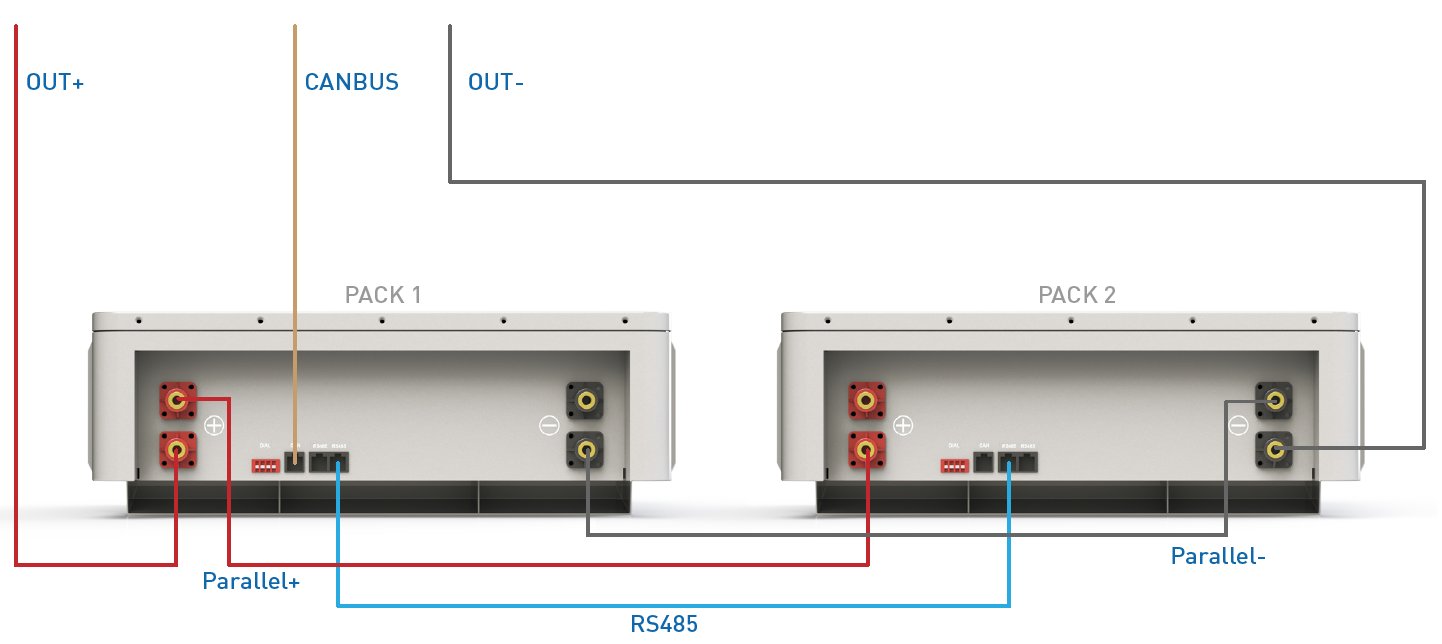

• Step 3: Connection:

• Step 4: Dialing address

       Automatic dialing. Manual dialing (optional)

       Single machine address setting：0000 0000

       Address setting for parallel operation: the definition of dial switch is shown in the table below.

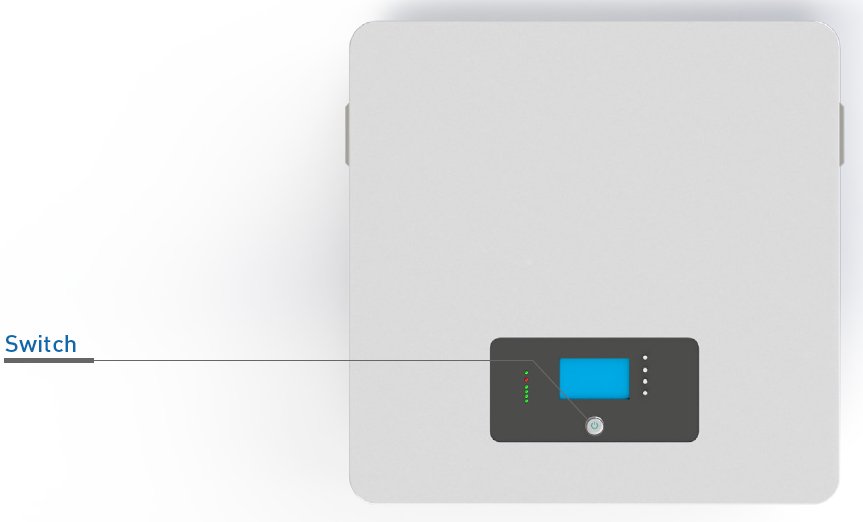

• Step 5: Turn on the switch separately

• With a load/inverter, the energy storage system start to work!

Noted:

Sleep mode:

a ：The system will immediately go to Standby mode without load or charger, and RUN LED will flash (1s ON, 1s OFF). After 48h later, the system will automatically go to sleep mode. And then all LEDs in panel will turn off.

b: With the standby state, the system can be forced into sleep mode through pressing the Switch.

Wake mode:

The following operations can wake up the system from sleep mode：

a. Automatically wake up when connect to a charger.

b. Press on the “Switch” key.

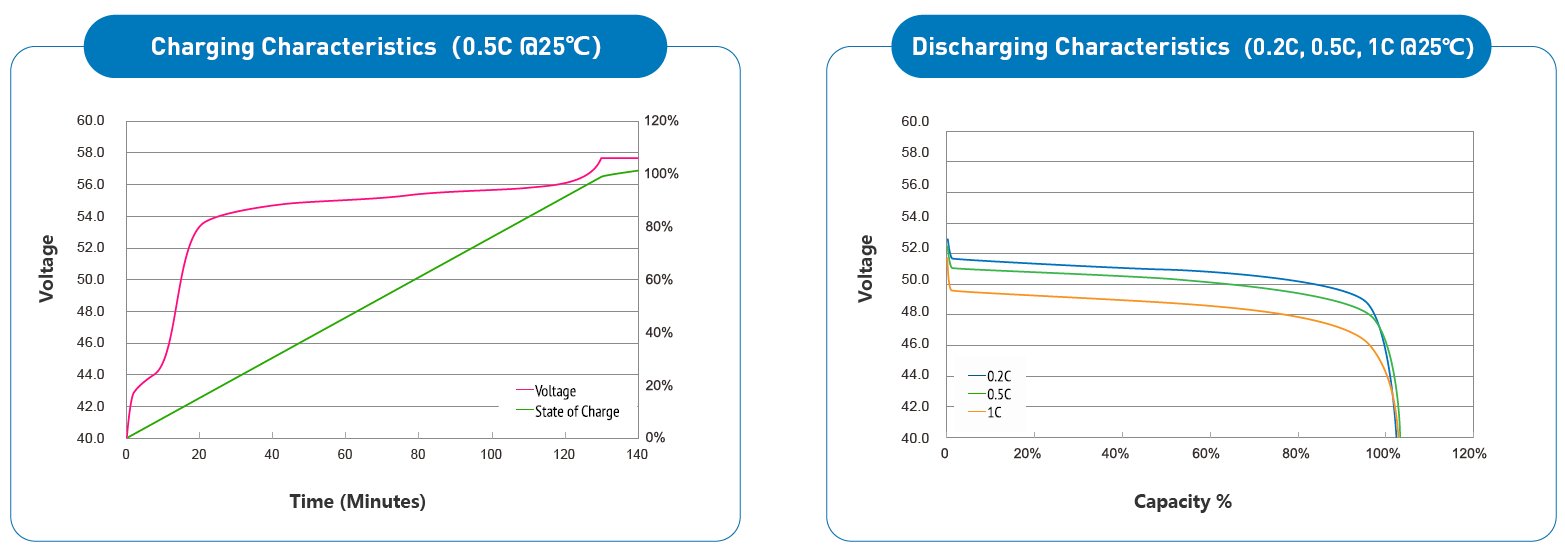

Characteristics Curve:

Key Benefits:

Higher qualified prismatic cell:

IEC62619 listed with Cycle life more than 3000times and excellent consistency.

UL1973 certificated battery pack:

UL1973 certification means higher quality and safety, easier to win more markets and more challenging projects.

Easy to install without extral cost:

The modules can be stacked one by one to get morecapacity easily with our simple side plate design, and also can be com-patible with most of inverter brands.

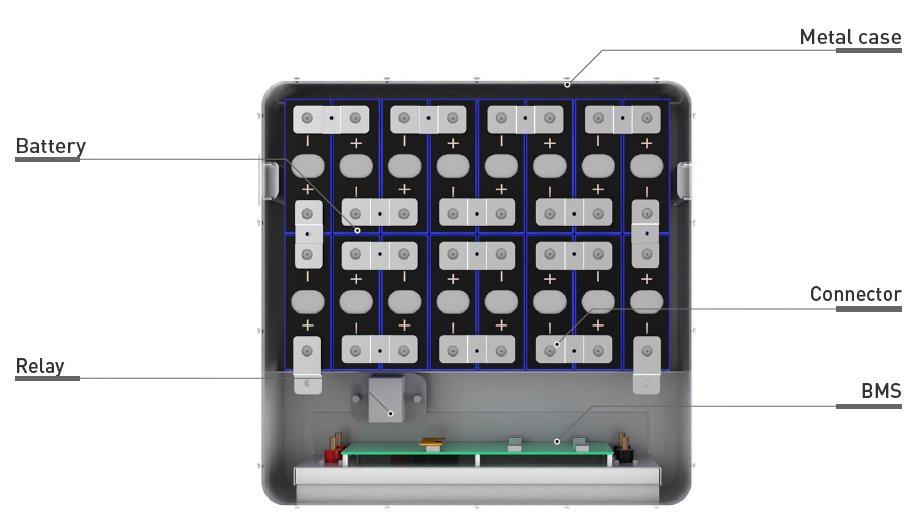

More stable and firm internal structure:

Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.

Market Applications:

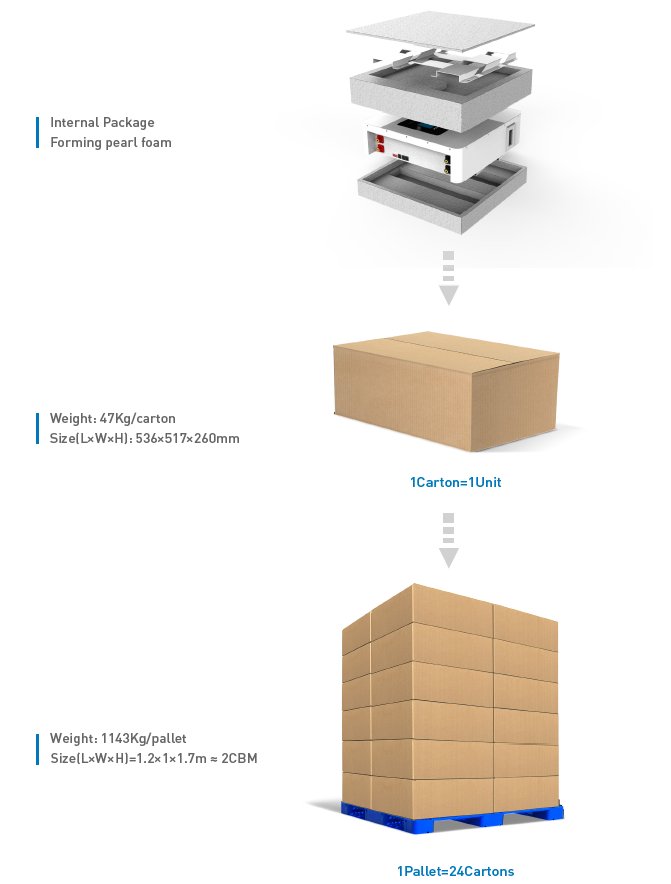

Package:

20'Container=10Pallets=240Cartons=240Units

40'Container=20Pallets=480Cartons=480Units

Customized items:

Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.

Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.

Label design: We can help you to design customized label on the battery.

Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.

Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.

NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
