Power Your Drive with Lithium
Model Included:
HC Golf-36105: 36V105Ah Golf Cart LiFePO4 Battery
Electrical Specifications:
Nominal Voltage38.4V
Nominal Capacity105Ah
Parallel ConnectionMax. 4units
Serial ConnectionNo
BMS12S100A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationRS485, CAN, LCD , Active balancing module
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage43.2±0.6V
Standard Current21A
Fast Current52.5A
Discharge Specifications:
Standard Current21A
Max. Con. Current100A
Peak Current700A (300ms)
Cut-off Voltage30V
Mechanical Specifications:
Dimensions (mm)320×310×262mm
Approx Weight(KG)32
Terminal TypeM8
Case Color/materialBlack Metal case
IP RatingIP65
Cell Type3.2V105Ah Prismatic cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-20°C to 45°C （-4°F to 113°F）
Key Points for Quality control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

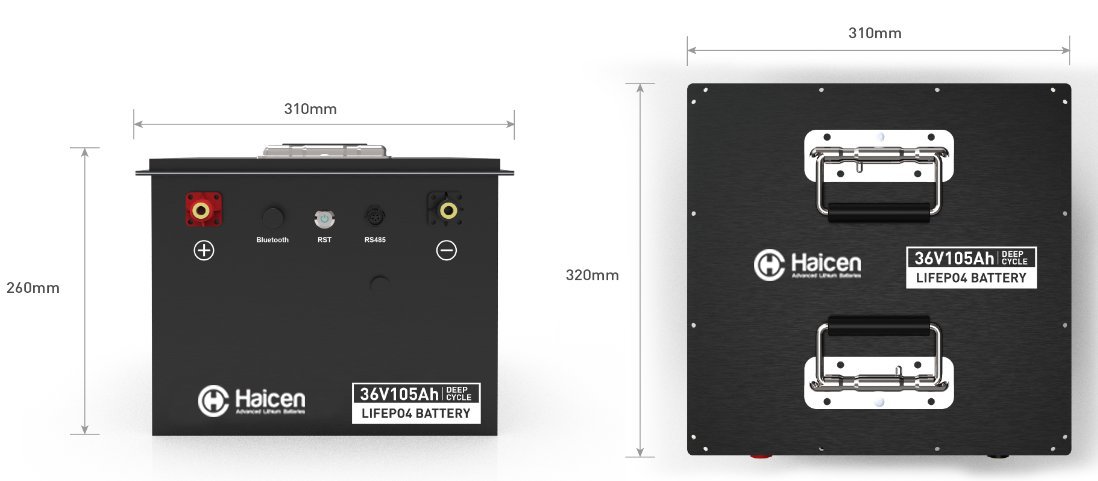

Dimensions:

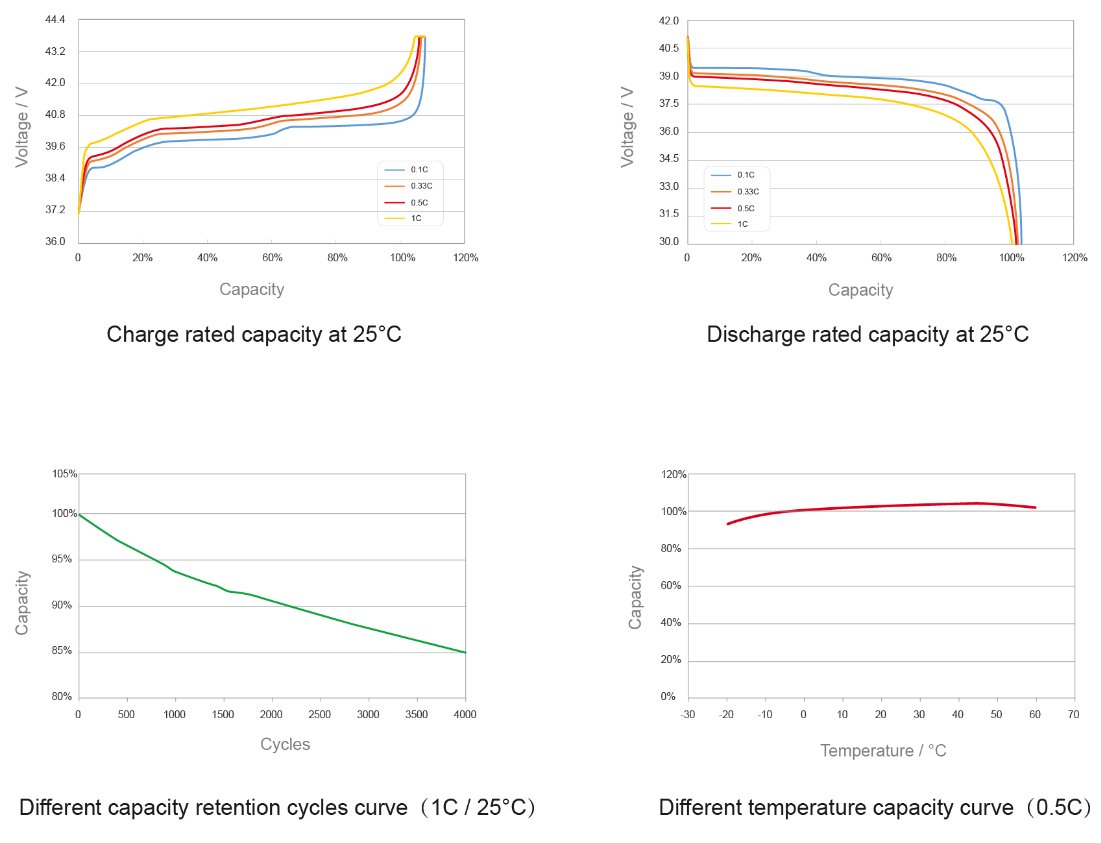

Characteristics Curve:
Product advantages:
Higher qualified cylindrical cell:
UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000times and excellent consistency.
Stronger BMS:
Equip with 200A BMS, delivering more power when golf cart running uphill.
Active balancing module:
The active balancing module could keep the battery always be in balance state and ensure long cycle life.
High waterproof:
We make waterproof treatment on the top cover and handle to ensure the battery won't affected by rainy weather and humid environment.
More stable and firm internal structure:
Each model is equiped with metal fixing frame or cell holder to strongly fix the cell and lessen the vibration to cell caused by driving on an uneven road.
Higher energy density with less weight:
The 3.2V105Ah prismatic cell which be used in these two model is with energy density 169wh/kg, about 15% higher than others, which bring less weight.
Market Applications:
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
| TECH & SPECS | Model | |
| HC Golf-36105 | ||
| Electrical Specifications | Nominal Voltage | 38.4V |
| Nominal Capacity | 105Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | No | |
| BMS | 12S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Optional Function | Rs485 ,CAN; LCD; Active balancing module | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 43.2±0.6V |
| Standard Current | 21A | |
| Fast Current | 52.5A | |
| Discharge Specifications | Standard Current | 21A |
| Max. Con. Current | 100A | |
| Peak Current | 700A(300ms) | |
| Cut-off Voltage | 30V | |
| Mechanical Specifications | Dimensions (mm) | 320x310x262mm |
| Approx Weight(KG] | 32 | |
| Terminal Type | M8 | |
| Case Color/material | Black Metal case | |
| IP Rating | IP65 | |
| Cell Type | 3.2V105Ah Prismatic Cell | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -20℃ to 45℃ (-4℉ to 113℉) | |
