24/7 Power for Homes & Businesses Solar I Storage Synergy
Haicen Power, ISO9001 certified factory, mainly focus on the R&D of : 1)12V to 48V LiFePO4 Batteries used for RV, Marine, Energy storage, Golf carts applications. 2) 48V LiFePO4 batteries for Energy storage system
Model Included:
HC48106-3U: 48V 106Ah LiFePO4 Battery
Key Points for Quality control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642 (Cell) | IEC62619 (Cell) | UN38.3 (Cell / Pack) |
| IEC62133 (Cell) | ROHS (Cell) | CE (Pack) |
| UL1973 (Cell / Pack) |
Product advantages:
Product advantages:
Real double protection (comply with UL1973 and IEC62619).
High Temperature Tolerance.
Max. 16pcs in Parallel to get Max. 86kwh system.
Compatible with most Brands inverters.
Modular, Scalable & Proven Performance.
Maintenance Free.

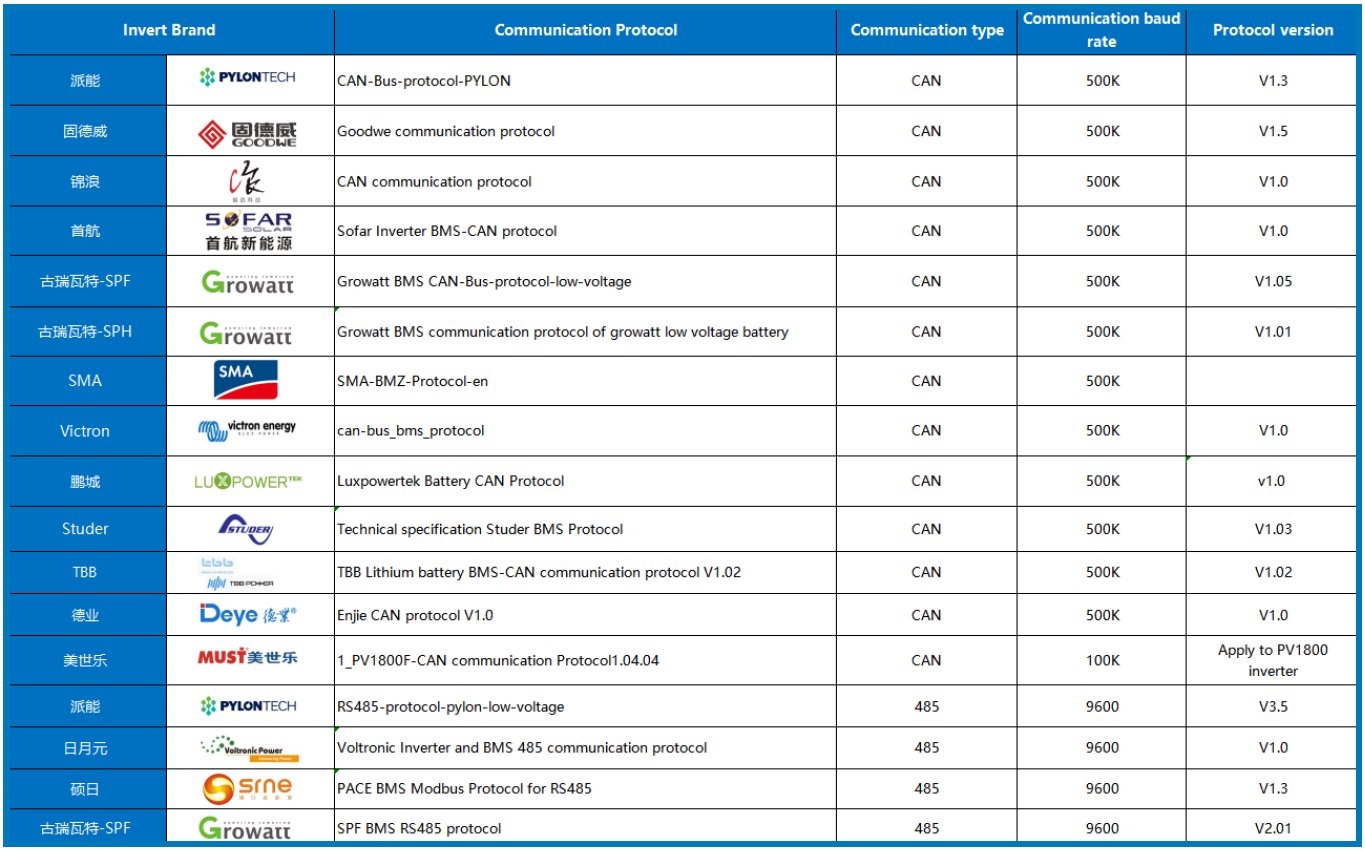

HC48106-3U module could be compatible with the inverters as below:
Operating instruction:

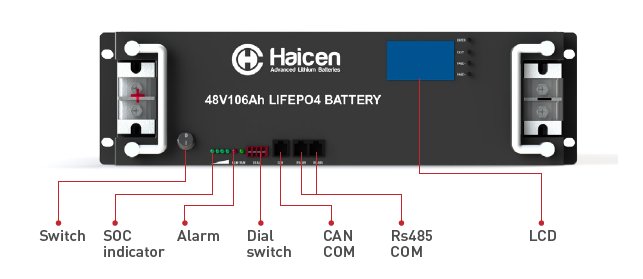

Step 1: learn Interface Instruction:

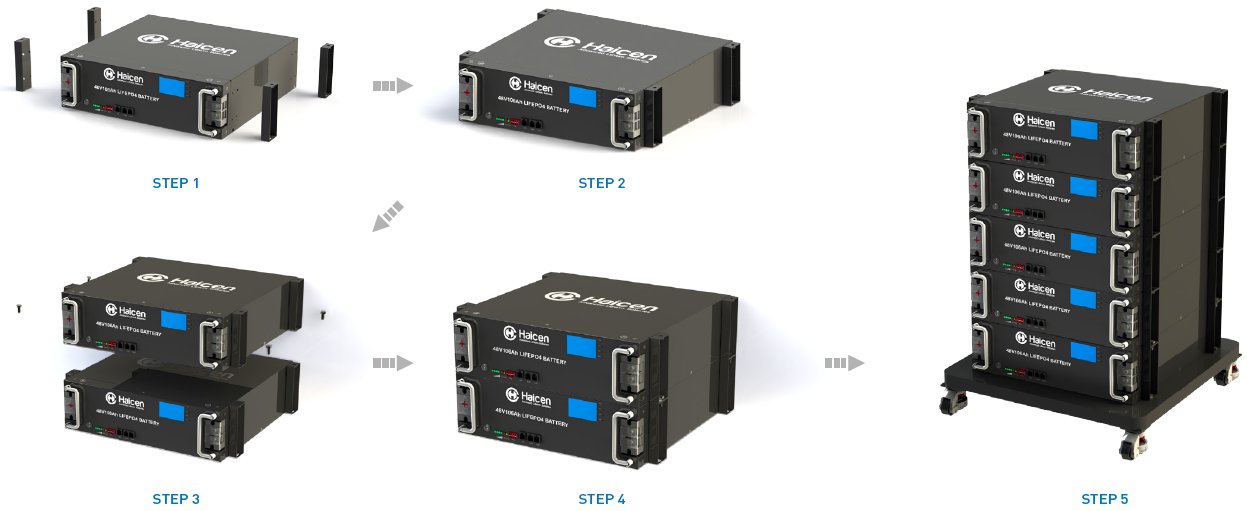

Step 2: Installation:

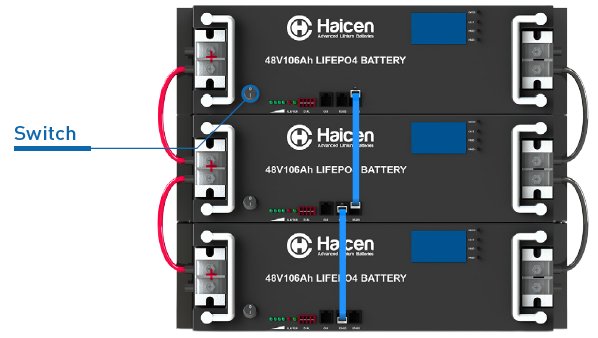

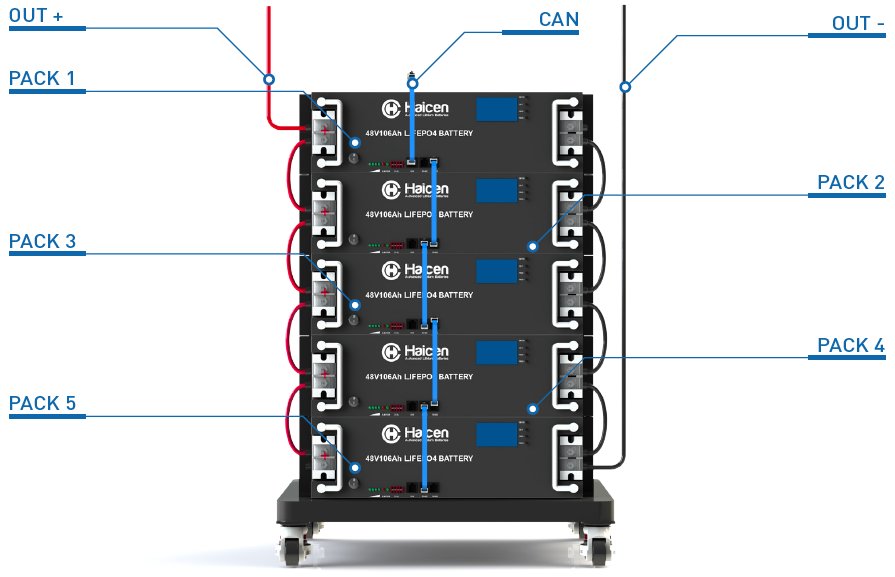

Step 3: Connection:
Step 4: Dialing address
Automatic dialing. Manual dialing (optional)
Single machine address setting：0000 0000

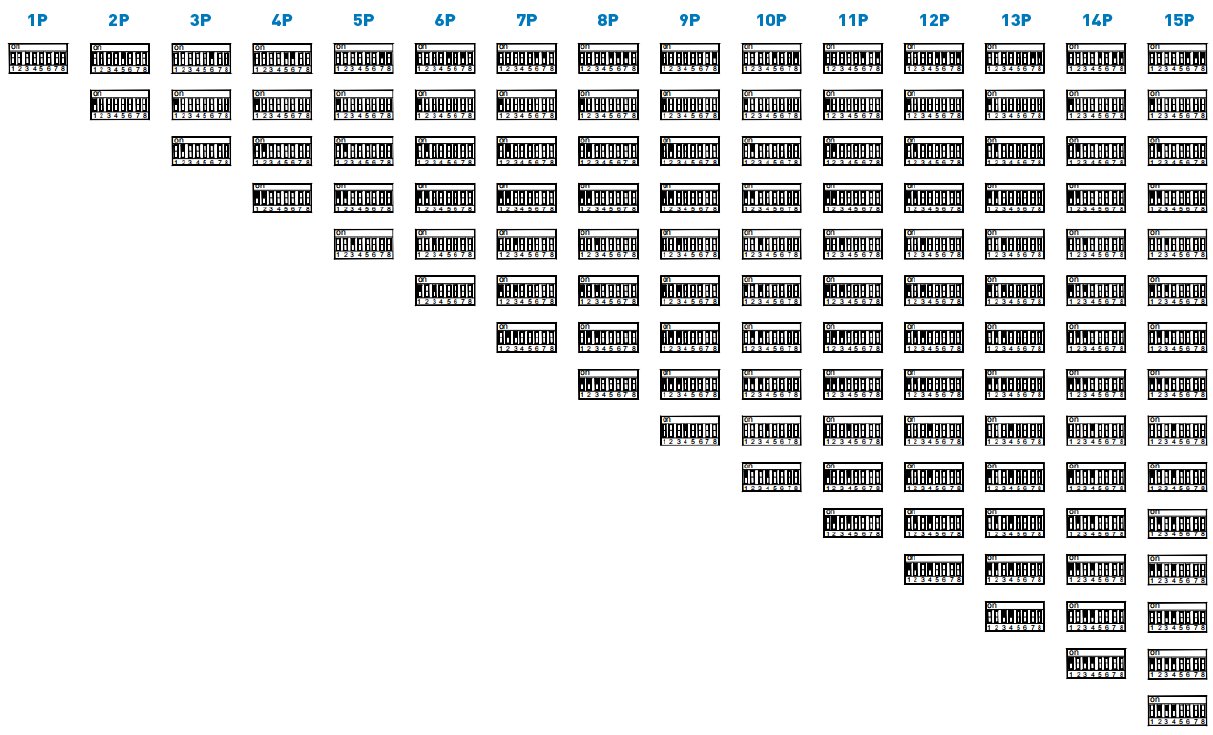

Address setting for parallel operation: the definition of dial switch is shown in the table below.
Step 5: Turn on the switch separately
With a load/inverter, the energy storage system start to work!
Noted:
Sleep mode:
a ：The system will immediately go to Standby mode without load or charger, and RUN LED will flash (1s ON, 1s OFF). After 48h later, the system will automatically go to sleep mode. And then all LEDs in panel will turn off.
b: With the standby state, the system can be forced into sleep mode through pressing the Switch.
Wake mode:
The following operations can wake up the system from sleep mode：
a. Automatically wake up when connect to a charger.
b. Press on the “Switch” key.

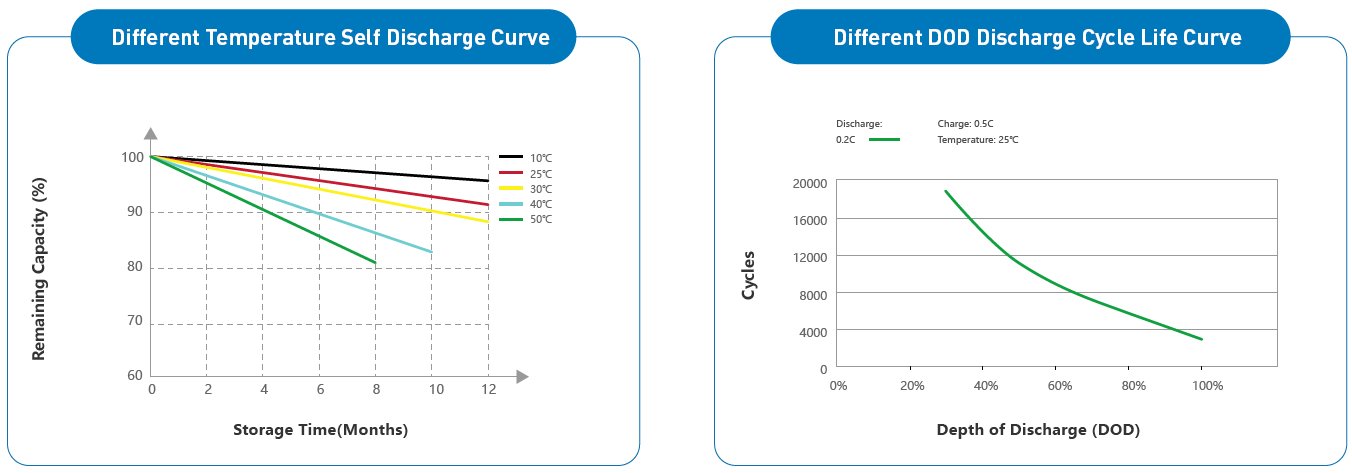

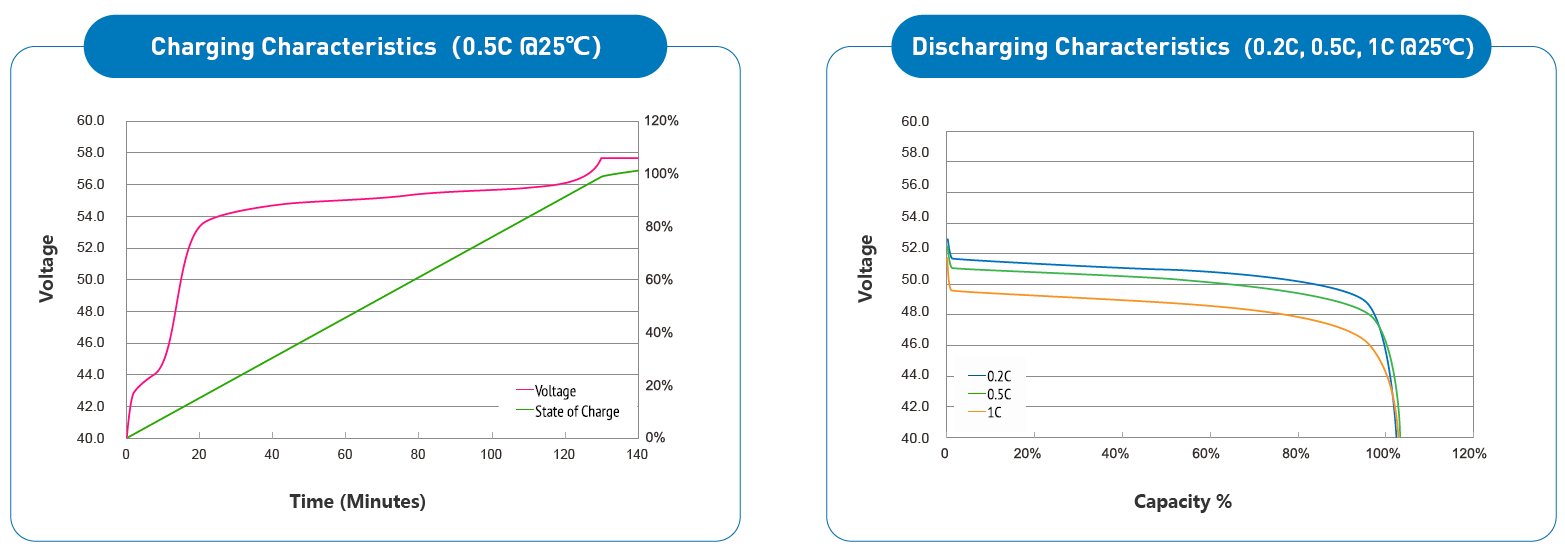

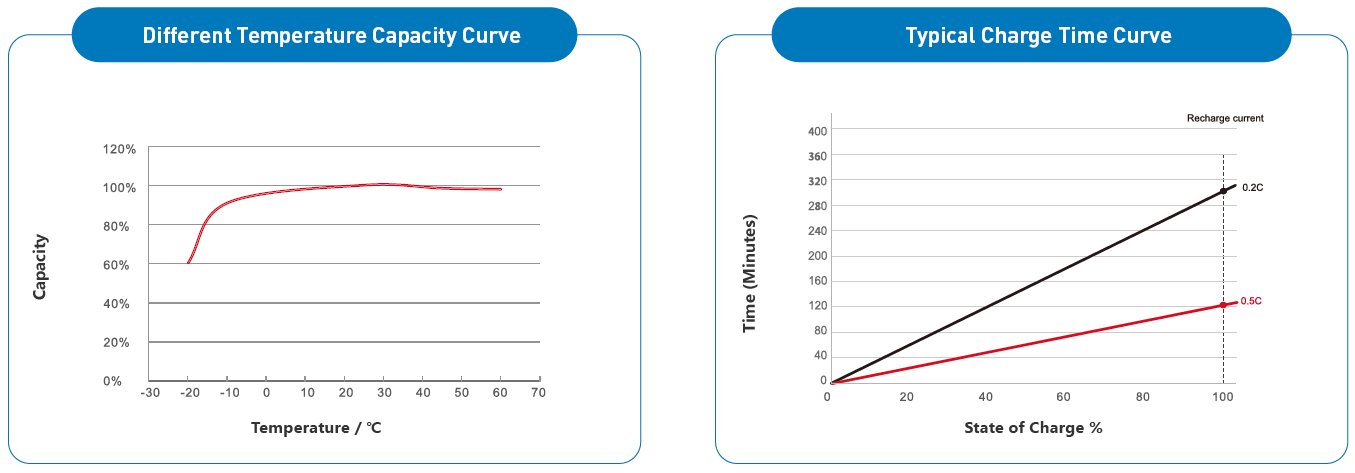

Characteristics Curve:
Key Benefits:
Higher qualified cylindrical cell:
UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000times and excellent consistency.
UL1973 certificated battery pack:
UL1973 certification means higher quality and safety, easier to win more markets and more challenging projects.
Easy to install without extral cost:
The modules can be stacked one by one to get morecapacity easily with our simple side plate design, and also can be com-patible with most of inverter brands.

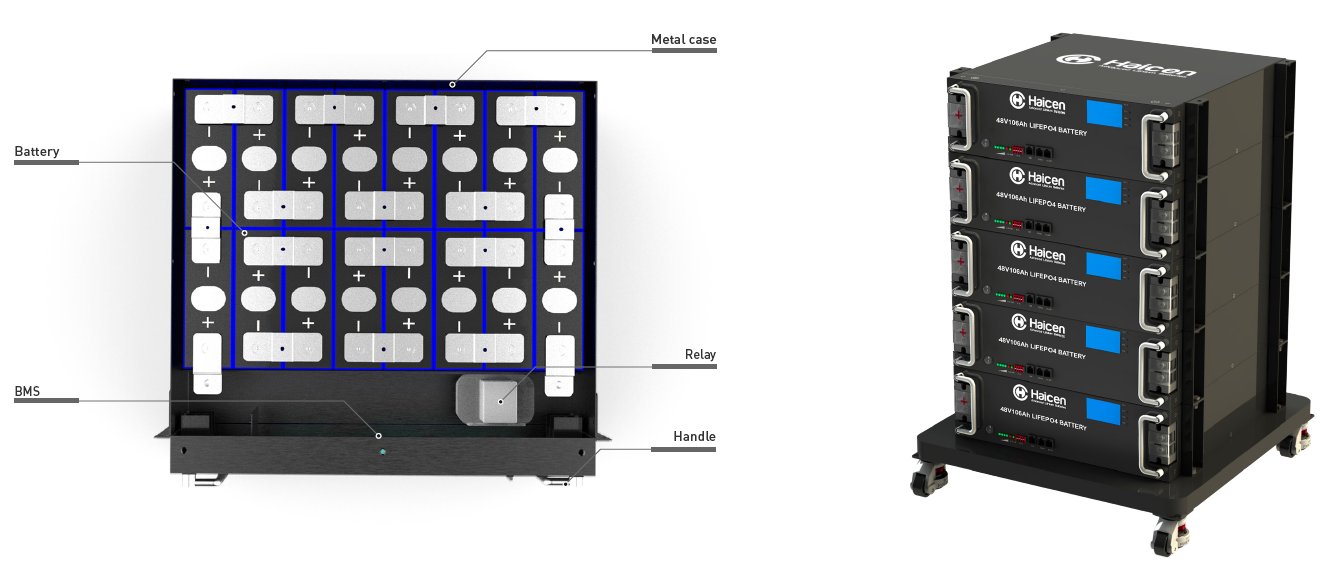

More stable and firm internal structure:
Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.
Market Applications:

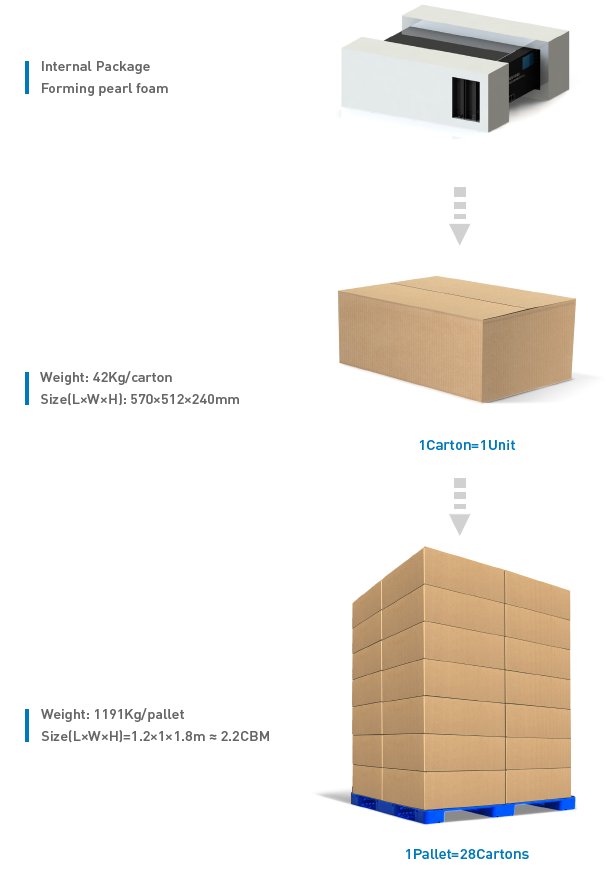

Package:
20'Container=10Pallets=280Cartons=280Units
40'Container=20Pallets=560Cartons=560Units
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
| TECH & SPECS | Model | |
| HC48106-3U | ||
| Electrical Specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 106Ah | |
| Parallel Connection | Max. 16units | |
| Serial Connection | No | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | 2xRs485 and 1xCAN, LCD | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 57.6±0.8V |
| Standard Current | 20A | |
| Fast Current | 50A | |
| TECH & SPECS | Standard Current | 20A |
| Max. Con. Current | 100A | |
| Peak Current | 250A(2s) | |
| Cut-off Voltage | 40V | |
| Mechanical Specifications | Dimensions (mm) | 482x425x133.5mm(3U standard size) |
| Approx Weight(KG] | 40 | |
| Terminal Type | 4*M6 | |
| Case Color/material | Black Metal Case | |
| IP Rating | IP56 | |
| Cell Type | 3.2V106Ah prismatic cell | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -20℃ to 45℃ (-4℉ to 113℉) | |
