| Lithium Battery Pack | |||||||||
| Model | Rated Voltage | Capacity | Charge Voltage | Max. Continuous current | Dimensions（mm） | Weight | Optional Functions and Applications | ||
| L | W | H | |||||||

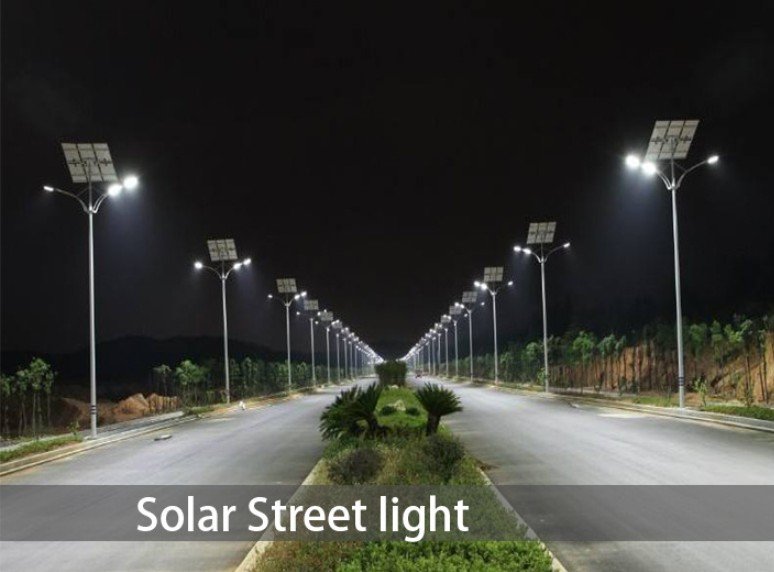

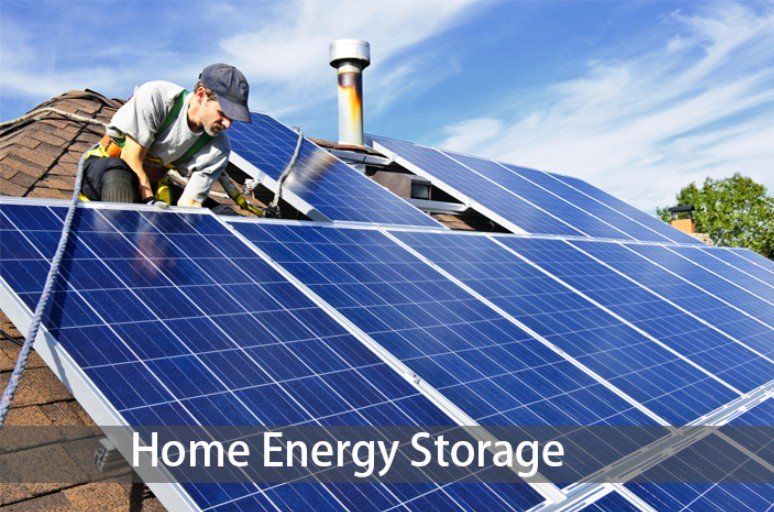

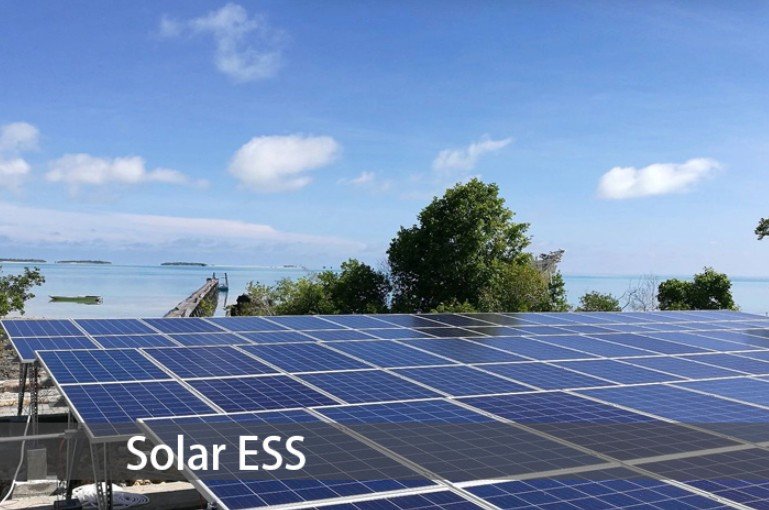

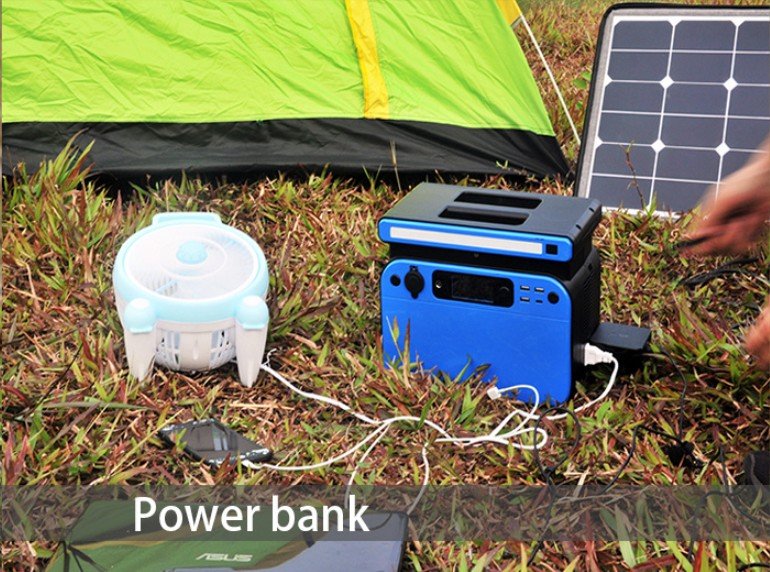

| 12V 8Ah LiFePO4 Battery | 12.8V | 8Ah | 14.6V | 10A | 151 | 95 | 65 | 1.0kg | Optional Functions: SOC Indicator, remote monitoring, communication, series and parallel connection, etc. Applications: solar street lights, lighting African projects, communication base stations, UPS, home energy storage, outdoor portable energy storage, etc. |
| 12V 12Ah LiFePO4 Battery | 12.8V | 12Ah | 14.6V | 10A | 152 | 99 | 96 | 1.7kg | |
| 12V 20Ah LiFePO4 Battery | 12.8V | 20Ah | 14.6V | 15A | 181 | 77 | 167 | 2.4kg | |
| 12V 24Ah LiFePO4 Battery | 12.8V | 24Ah | 14.6V | 15A | 166 | 175 | 125 | 3.2kg | |
| 12V 32Ah LiFePO4 Battery | 12.8V | 32Ah | 14.6V | 20A | 195 | 130 | 160 | 4.2kg | |
| 12V 40Ah LiFePO4 Battery | 12.8V | 40Ah | 14.6V | 20A | 197 | 165 | 170 | 4.8kg | |
| 12V 50Ah LiFePO4 Battery | 12.8V | 50Ah | 14.6V | 30A | 197 | 165 | 170 | 5.3kg | |
| 12V 60Ah LiFePO4 Battery | 12.8V | 60Ah | 14.6V | 30A | 230 | 138 | 208 | 7.0kg | |
| 12V 80Ah LiFePO4 Battery | 12.8V | 80Ah | 14.6V | 30A | 305 | 169 | 210 | 9.0kg | |
| 12V 100Ah LiFePO4 Battery | 12.8V | 100Ah | 14.6V | 50A | 330 | 173 | 216 | 11kg | |
| 12V 120Ah LiFePO4 Battery | 12.8V | 120Ah | 14.6V | 50A | 330 | 173 | 216 | 13.8kg | |
| 12V 150Ah LiFePO4 Battery | 12.8V | 150Ah | 14.6V | 100A | 330 | 173 | 216 | 16.5kg | |
| 12V 170Ah LiFePO4 Battery | 12.8V | 170Ah | 14.6V | 100A | 406 | 173 | 236 | 18.5kg | |
| 12V 200Ah LiFePO4 Battery | 12.8V | 200Ah | 14.6V | 100A | 490 | 171 | 240 | 22.5kg | |
| 12V 220Ah LiFePO4 Battery | 12.8V | 220Ah | 14.6V | 100A | 490 | 171 | 240 | 25.8kg | |
| 12V 300Ah LiFePO4 Battery | 12.8V | 300Ah | 14.6V | 100A | 521 | 267 | 220 | 33kg | |
| 12V 400Ah LiFePO4 Battery | 12.8V | 400Ah | 14.6V | 200A | 521 | 267 | 220 | 42kg | |
| 24V 24Ah LiFePO4 Battery | 25.6V | 24Ah | 29.2V | 20A | 197 | 165 | 170 | 5.3kg | |
| 24V 32Ah LiFePO4 Battery | 25.6V | 32Ah | 29.2V | 20A | 197 | 165 | 170 | 7.0kg | |
| 24V 50Ah LiFePO4 Battery | 25.6V | 50Ah | 29.2V | 30A | 330 | 173 | 216 | 11kg | |
| 24V 80Ah LiFePO4 Battery | 25.6V | 80Ah | 29.2V | 50A | 406 | 173 | 216 | 17.8kg | |
| 24V 100Ah LiFePO4 Battery | 25.6V | 100Ah | 29.2V | 50A | 406 | 173 | 216 | 21.5kg | |
| 24V 150Ah LiFePO4 Battery | 25.6V | 150Ah | 29.2V | 100A | 521 | 267 | 220 | 31.2kg | |
| 24V 200Ah LiFePO4 Battery | 25.6V | 200Ah | 29.2V | 150A | 420 | 400 | 160 | 42kg | |
| 24V 300Ah LiFePO4 Battery | 25.6V | 300Ah | 29.2V | 150A | 600 | 400 | 160 | 65kg | |
| 24V 400Ah LiFePO4 Battery | 25.6V | 400Ah | 29.2V | 150A | 800 | 400 | 160 | 86kg | |
| 24V 500Ah LiFePO4 Battery | 25.6V | 500Ah | 29.2V | 150A | 800 | 520 | 160 | 106kg | |
| 48V 32Ah LiFePO4 Battery | 51.2V | 32Ah | 58.4V | 30A | 380 | 360 | 160 | 14kg | |
| 48V 50Ah LiFePO4 Battery | 51.2V | 50Ah | 58.4V | 50A | 490 | 171 | 240 | 22.5kg | |
| 48V 80Ah LiFePO4 Battery | 51.2V | 80Ah | 58.4V | 100A | 580 | 520 | 100 | 37kg | |
| 48V 100Ah LiFePO4 Battery | 51.2V | 100Ah | 58.4V | 100A | 420 | 400 | 160 | 45kg | |
| 48V 200Ah LiFePO4 Battery | 51.2V | 200Ah | 58.4V | 150A | 800 | 400 | 160 | 86kg | |
| 48V 300Ah LiFePO4 Battery | 51.2V | 300Ah | 58.4V | 150A | 720 | 680 | 280 | 128kg | |
| 48V 400Ah LiFePO4 Battery | 51.2V | 400Ah | 58.4V | 150A | 780 | 780 | 280 | 175kg | |
