Sodium-ion Battery
Smaller size and less weight
Model Included:
12.4V89Ah Sodium-ion Battery
Electrical Specifications:
Nominal Voltage12.4V
Nominal Capacity89Ah
Parallel ConnectionMax. 6units
Serial ConnectionMax. 4units
BMS4S100A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationBluetooth, Heating, Display, RS485 or CANBus
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage15.8±0.2V
Standard Current17.8A
Fast Current44.5A
Discharge Specifications:
Standard Current17.8A
Max. Con. Current100A
Peak Current400A (300ms)
Cut-off Voltage6V
Mechanical Specifications:
Dimensions (mm)260×170×208mm (Group 24)
Approx Weight(KG)10.2
Terminal TypeM8
Case Color/materialBlack Plastic Case (ABS)
IP RatingIP65
Cell TypeSodium-ion Rechargeable Cell
Temperature Specifications:
Charge Temp-10°C to 45°C （14°F to 113°F）
Discharge Temp-30°C to 60°C （-22°F to 140°F）
Storage Temp-20°C to 45°C （-4°F to 113°F）
Product advantages:
Better performance at low temperature:
Better low-temperature charging and storage performance, greatly reducing safety hazards.
More stable and firm internal structure:
Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.
Stronger BMS:
Can support the batteries in parallel and series connection.
Smaller size and less weight:
The size of our battery is just 3/4 size of the standard 12V 89Ah battery from other suppliers
Characteristics Curve:

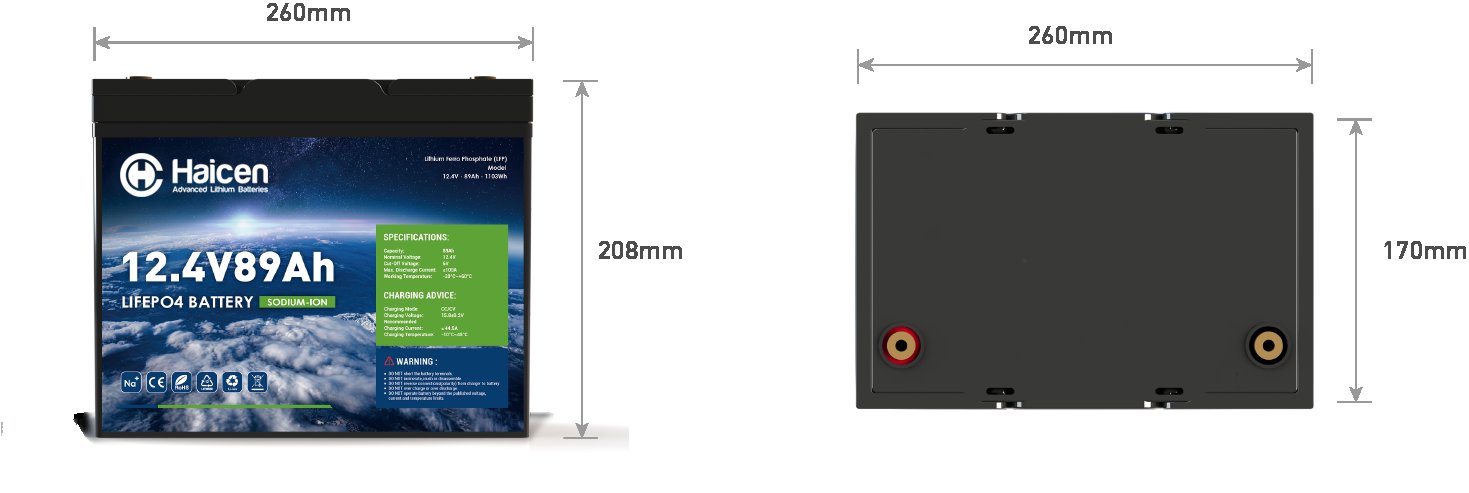

Dimensions:
Market Applications:
Customized items:
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
| TECH & SPECS | Model | |
| 12.4V89Ah Sodium-ion Battery | ||
| Electrical Specifications | Nominal Voltage | 12.4V |
| Nominal Capacity | 89Ah | |
| Parallel Connection | Max. 6units | |
| Serial Connection | Max. 4units | |
| BMS | 4S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | Bluetooth, Heating, Display, RS485 or CANBus | |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 15.8±0.2V |
| Standard Current | 17.8A | |
| Fast Current | 44.5A | |
| Discharge Specifications | Standard Current | 17.8A |
| Max. Con. Current | 100A | |
| Peak Current | 400A(300ms) | |
| Cut-off Voltage | 6V | |
| Mechanical Specifications | Dimensions (mm) | 260×170×208mm (Group 24) |
| Approx Weight(KG] | 10.2 | |
| Terminal Type | M8 | |
| Case Color/material | Black Plastic Case (ABS) | |
| IP Rating | IP65 | |
| Cell Type | Sodium-ion Rechargeable Cell | |
| Temperature Specifications | Charge Temp | -10°C to 45°C （14°F to 113°F） |
| Discharge Temp | -30°C to 60°C （-22°F to 140°F） | |
| Storage Temp | -20°C to 45°C （-4°F to 113°F） | |
