LiFePO4 lithium Battery, ESS, Energy Storage System module, customized battery packs

Key Points for Quality control:

Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.

Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.

100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.

Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.

Certifications:

Product advantages:

Product advantages:

• Adopt cylindrical cell, no swelling, no thermal runaway, no fire risk.

• Adaptable to most inverter brands for greater applicability to end customers.

• Equip with active balancing module, which can make sure the battery pack always be in balance state and further ensure long cycle time.

• Keep high performance at high temperture, cycle 2800 times at 55℃, 100%DOD, no worries in summer or hot area.

• The UL489 certificated circuit breaker with SHT, form a strong double-protection to battery.

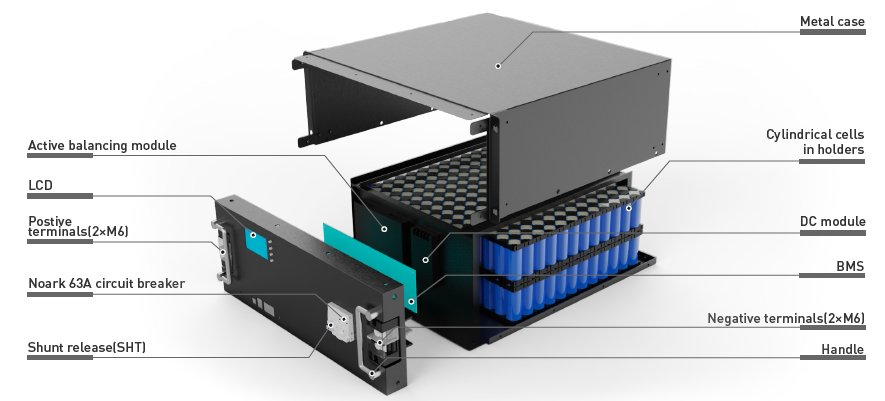

• Cell holder, ensure stable internal structure and improve heat disspation.

• All key components are UL approved, such as cell, part of BMS, terminal, cable, circuit breaker, which bring better quality and higher safty to battery.

• Easy to install and move for end customers .

HC48100-4U module could be compatible with the inverters as below:

Operating instruction:

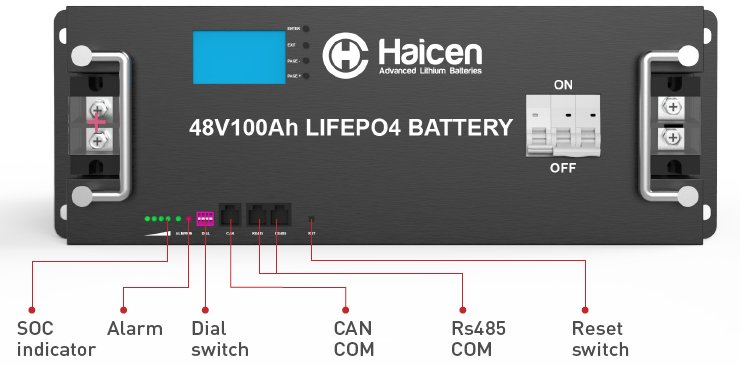

• Step 1: learn Interface Instruction:

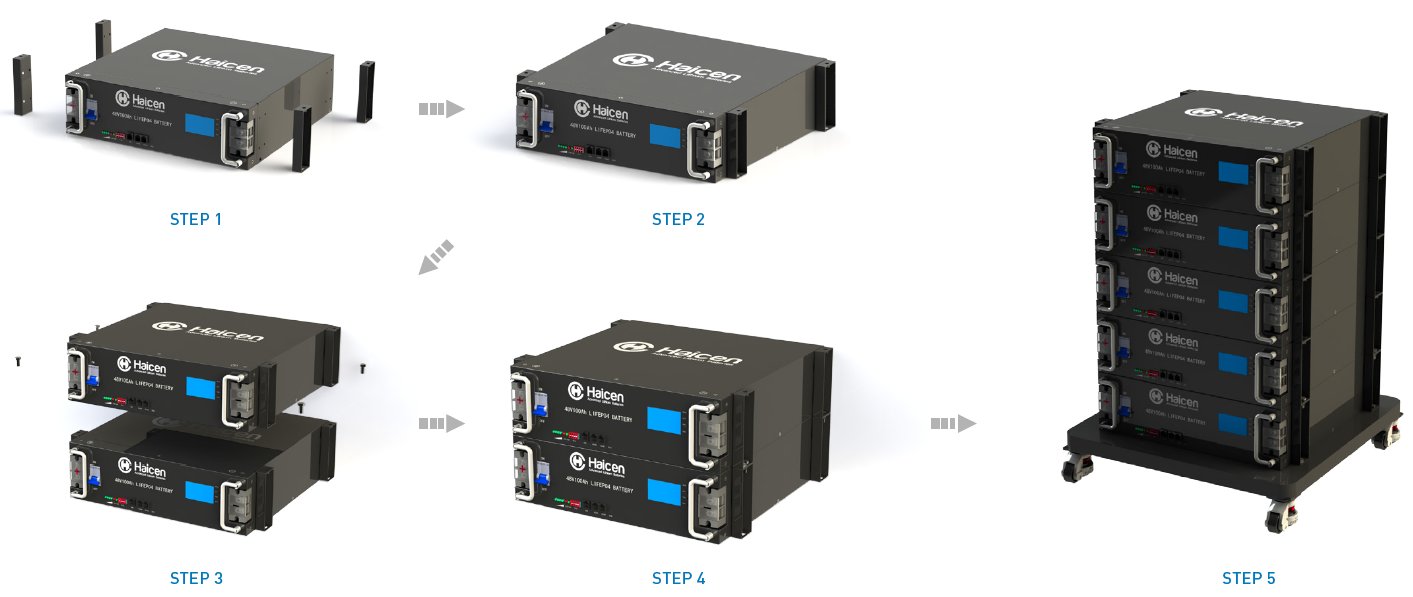

• Step 2: Installation:

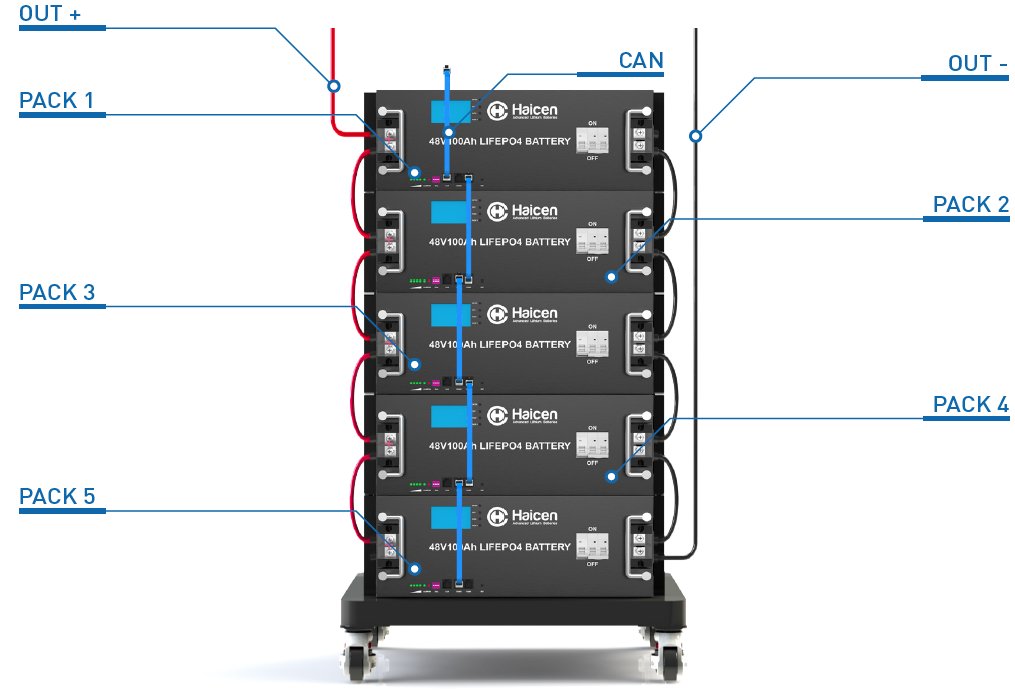

• Step 3: Connection:

• Step 4: Dialing address

       Single machine address setting：0000

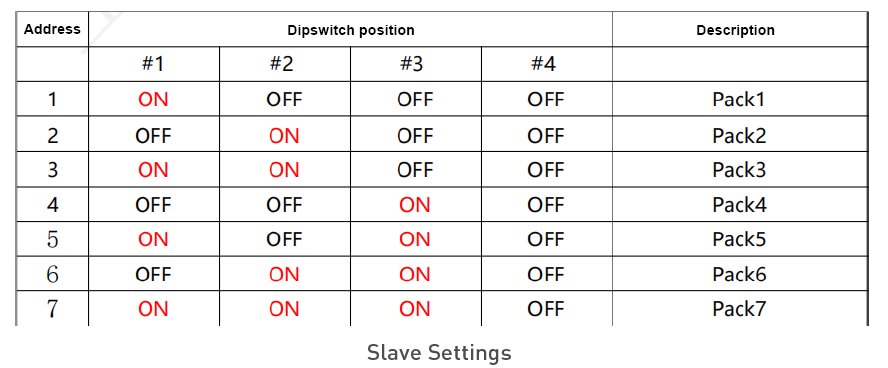

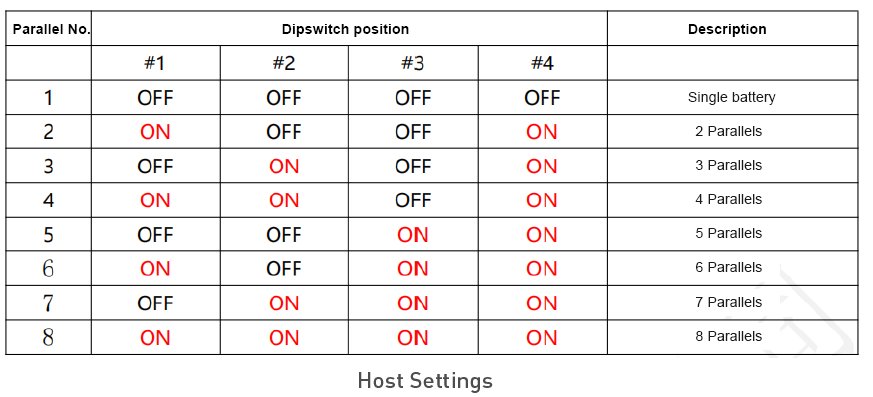

       Address setting for parallel operation: the definition of dial switch is shown in the table below.

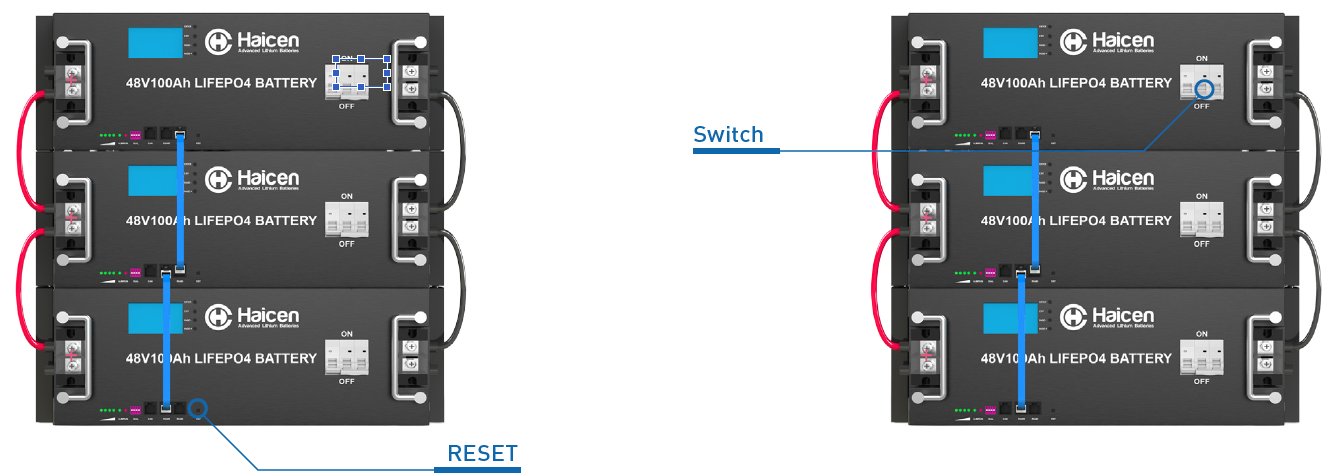

• Step 5: Press the “RESET” button for over 3s separately, for wake up                                                                  Step:6 Turn on the switch separately

• With a load/inverter, the energy storage system start to work!

Noted:

Sleep mode:

a ：The system will immediately go to Standby mode without load or charger, and RUN LED will flash (1s ON, 1s OFF). After 48h later, the system will automatically go to sleep mode. And then all LEDs in panel will turn off.

b: With the standby state, the system can be forced into sleep mode through pressing the reset key for 3s.

Wake mode:

With the standby state, the system can be forced into sleep mode through pressing the reset key for 3s.

a. Automatically wake up when connecting a charger.

b. Press on the “reset” key for 3s.

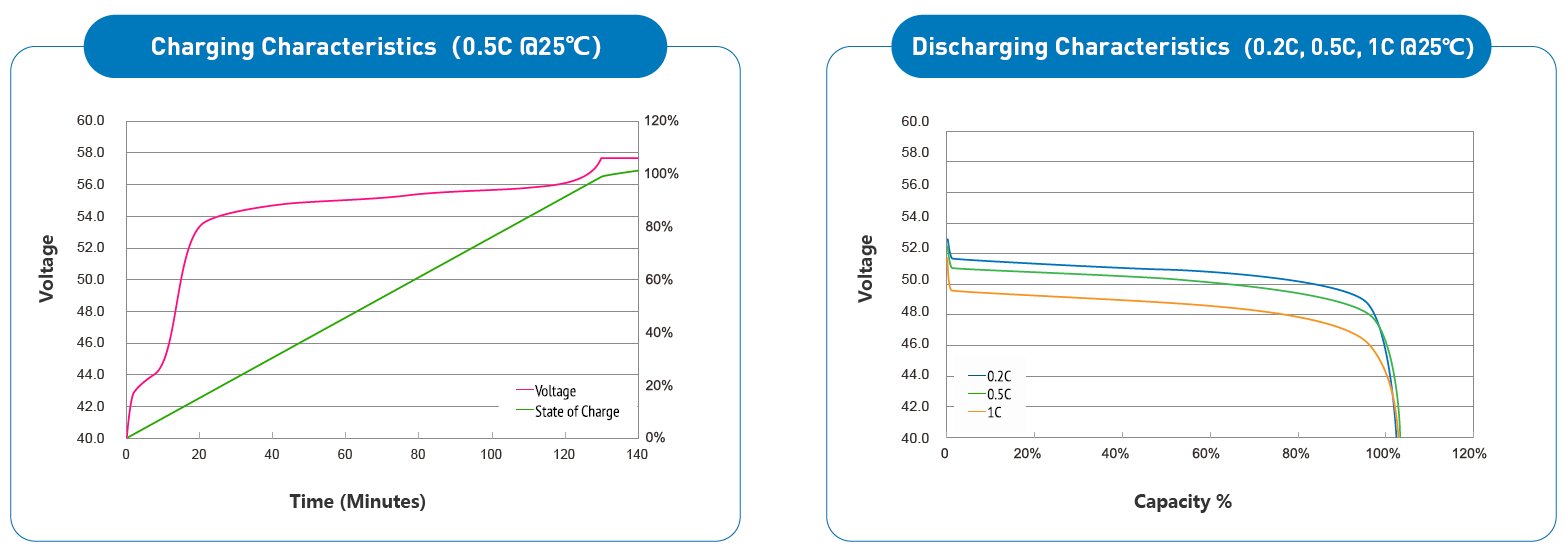

Characteristics Curve:

Key Benefits:

Higher qualified cylindrical cell:

UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000times and excellent consistency.

UL1973 certificated battery pack:

UL1973 certification means higher quality and safety, easier to win more markets and more challenging projects.

Easy to install without extral cost:

The modules can be stacked one by one to get morecapacity easily with our simple side plate design, and also can be com-patible with most of inverter brands.

More stable and firm internal structure:

Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.

Market Applications:

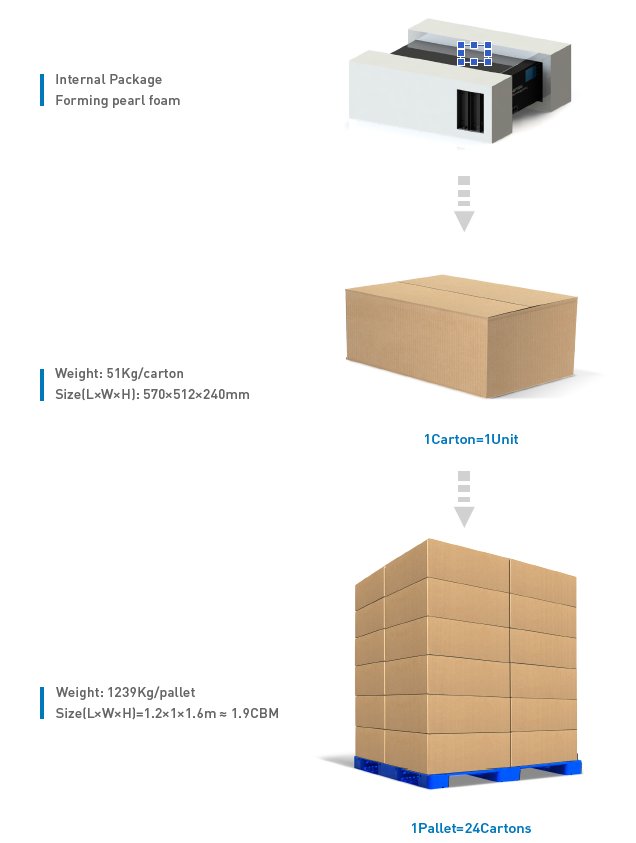

Package:

20'Container=10Pallets=240Cartons=240Units

40'Container=20Pallets=480Cartons=480Units

Customized items:

Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.

Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.

Label design: We can help you to design customized label on the battery.

Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.

Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.

NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
