Reliable Power for RVs, Solar Systems, Marine & More
Model Included:
HCG24-12106: 12V 106Ah LiFePO4 Battery
HCG24S-12106BT: 12V 106Ah LiFePO4 Battery with Bluetooth
Key Points for Quality control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1973 (Cell) | CE (Pack) | UL9540 (Cell) |
| UN38.3 (Cell / Pack) | IEC62133 (Cell) | ROHS (Cell) |
| IEC62919 (Cell) |
Dimensions:

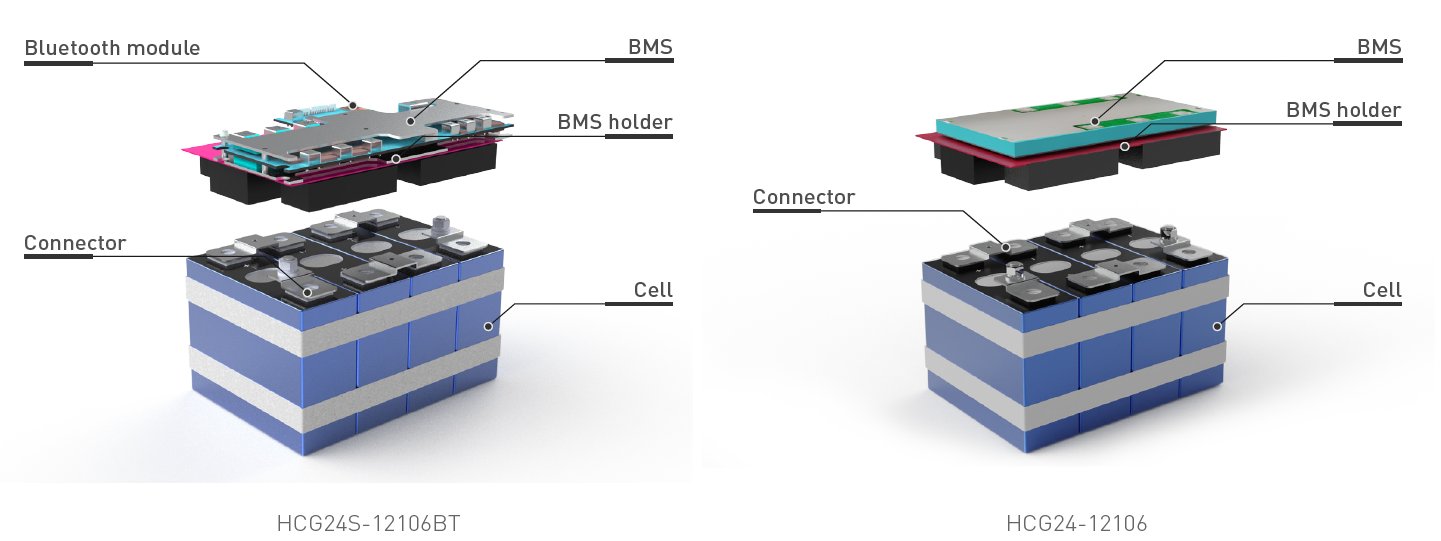

Internal Structure:
SOC Display (optional):
Characteristics Curve:
Key Benefits:
Higher qualified Prismatic Cell:
UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000times and excellent consistency.
Bluetooth:
enable to monitor the battery status(charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
Higher energy density with less weight:
The 3.2V106Ah prismatic cell which be used in these two model is with energy density 169wh/kg, about 15% higher than others, which bring less weight.
Market Applications:

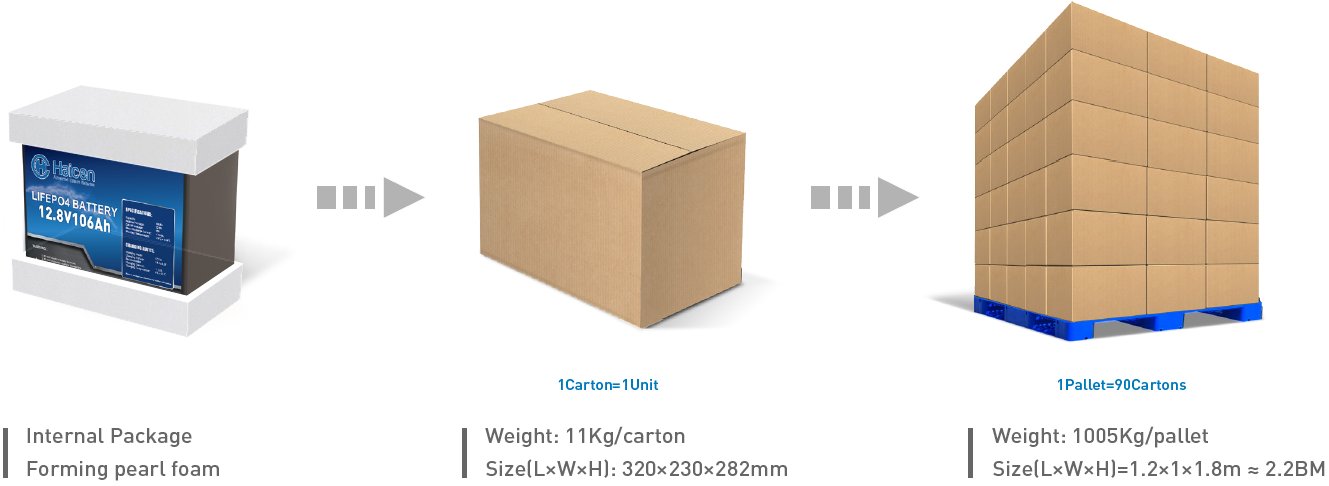

Package:
20'Container=10Pallets=900Cartons=900Units
40'Container=20Pallets=1800Cartons=1800Units
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
| TECH & SPECS | Model | ||
| HCG24-12106 | HCG24S-12106BT | ||
| Electrical Specifications | Nominal Voltage | 12.8V | 12.8V |
| Nominal Capacity | 106Ah | 106Ah | |
| Parallel Connection | Max. 4units | Max. 4units | |
| Serial Connection | Max. 4units | Max. 4units | |
| BMS | 4S100A | 4S100A | |
| Bluetooth | No | Android/IOS | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | ||
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | ||
| Self Discharge | Less than 3% per month | ||
| Charge Efficiency | 100%@0.2C | ||
| Discharge Efficiency | 98-100%@1C | ||
| Charge Specifications | Charge Voltage | 14.4±0.2V | 14.4±0.2V |
| Standard Current | 21A | 21A | |
| Fast Current | 53A | 53A | |
| Discharge Specifications | Standard Current | 21A | 21A |
| Max. Con. Current | 100A | 100A | |
| Peak Current | 500A(300ms) | 700A(300ms) | |
| Cut-off Voltage | 10V | 10V | |
| Mechanical Specifications | Dimensions (mm) | 260×170×208mm (Group 24) | |
| Approx Weight(KG) | 10 | 10 | |
| Terminal Type | M8 | ||
| Case Color/material | Black Plastic case(ABS) | ||
| IP Rating | IP65 | ||
| Cell Type | 3.2V106Ah prismatic cell | ||
| Cell holder | Yes | ||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉ to 131℉) | |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | ||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | ||
