Lithium Cells Model: HCITR26/70-36P | 3.2V 3600mAh

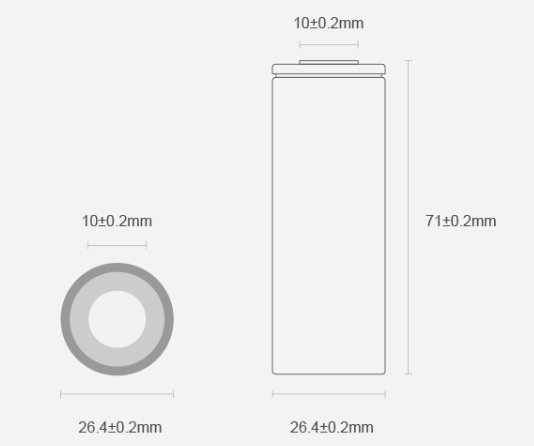

Dimensions:
Major Technical Parameters:
| HCITR26/70-36P | |||
| Item | Standard | Note | |
| Standard Capacity | 3600mAh | 1C (current value of 3600mA at 1C) | |
| Minimum Capacity | 3600mAh | ||
| Standard Voltage | 3.2V | ||
| Alternating Internal Resistance | ≤20mΩ | ||
| Charge Conditions | 3.65±0.05V 0.01C | 3.65±0.05V 0.02C | Constant-current charge to 3.65V at 1C, constant voltage charge to stop until 0.02C mA |
| Standard Charge Current | 1C | ||
| Max. Charging Current | 3C | ||
| Discharge Cut-off Voltage | 2.0V | ||
| Standard Discharge Current | 1C | ||
| Max. Continuous Discharge Current | 5C | ||
| Cycle Characteristic | ≥2000 times (100%DOD) ≥4000 times (80%DOD) | The residual capacity is no less than 80% of rated capacity at 1C charge / 5C discharge. | |
| Working Temperature | Charge: 0℃~55℃ Discharge: -20℃~60℃ | ||
| Storage Temperature | -20℃~55℃ | Short-term storage (< 3 months) | |
| Cell Weight | <93g | ||

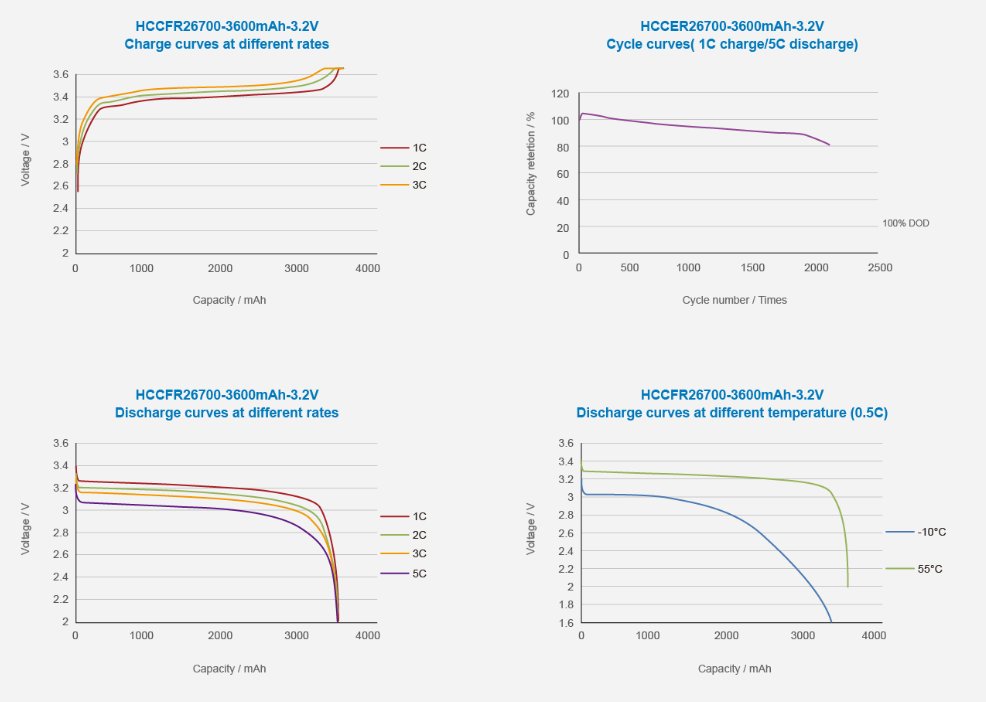

Characteristics Curves:
| HCITR26/70-36P | |||
| Item | Standard | Note | |
| Standard Capacity | 3600mAh | 1C (current value of 3600mA at 1C) | |
| Minimum Capacity | 3600mAh | ||
| Standard Voltage | 3.2V | ||
| Alternating Internal Resistance | ≤20mΩ | ||
| Charge Conditions | 3.65±0.05V 0.01C | 3.65±0.05V 0.02C | Constant-current charge to 3.65V at 1C, constant voltage charge to stop until 0.02C mA |
| Standard Charge Current | 1C | ||
| Max. Charging Current | 3C | ||
| Discharge Cut-off Voltage | 2.0V | ||
| Standard Discharge Current | 1C | ||
| Max. Continuous Discharge Current | 5C | ||
| Cycle Characteristic | ≥2000 times (100%DOD) ≥4000 times (80%DOD) | The residual capacity is no less than 80% of rated capacity at 1C charge / 5C discharge. | |
| Working Temperature | Charge: 0℃~55℃ Discharge: -20℃~60℃ | ||
| Storage Temperature | -20℃~55℃ | Short-term storage (< 3 months) | |
| Cell Weight | <93g | ||
