Total Control and Insight at Your Fingertips
Step into the future of cart management. Our Smart BMS Series battery goes beyond power—it's an intelligent connected device. With built-in Bluetooth and a sophisticated management system, you gain unprecedented real-time insight into your battery's health, performance, and usage, putting you in complete control.
Key Benefits:
Real-Time Performance Monitoring:
Connect directly to your battery via a smartphone app to view precise State of Charge (SOC%), voltage, current, temperature, and remaining runtime at a glance.
Advanced Diagnostics & History:
Track cycle count, identify potential issues before they become problems, and review historical data to understand your usage patterns and optimize performance.
Cell Balancing & Protection:
The advanced smart BMS actively balances individual cells to maximize overall pack lifespan and provides multi-layer protection for unparalleled safety and health.
Customizable Parameters:
(Optional for advanced users) Fine-tune charging and discharging settings to perfectly match your specific cart and usage requirements through the app.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | CE (Pack) | UN38.3(Cell/ Pack) |
| UN38.3 (Cell / Pack) | UL2580 (Cell) | MSDS (Cell / Pack) |
| IEC62619 (Cell) |

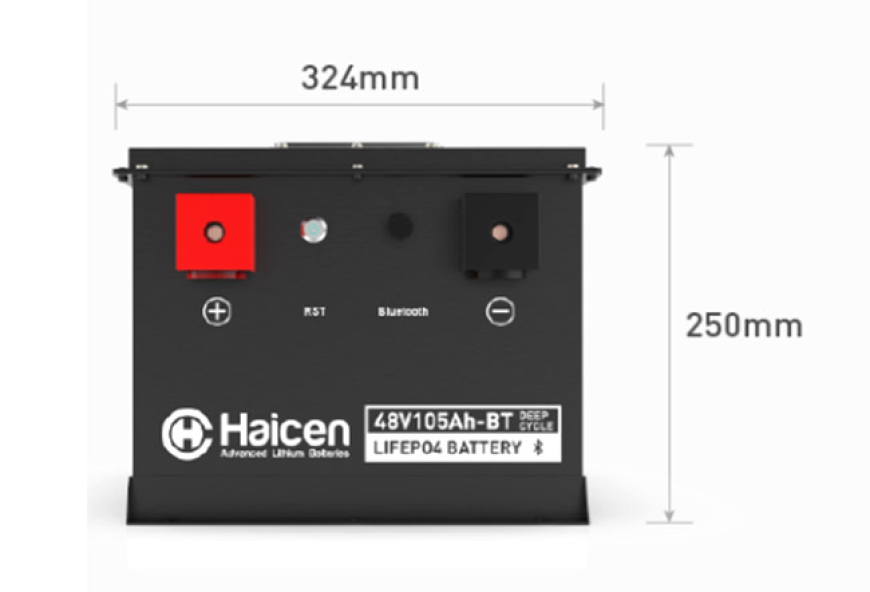

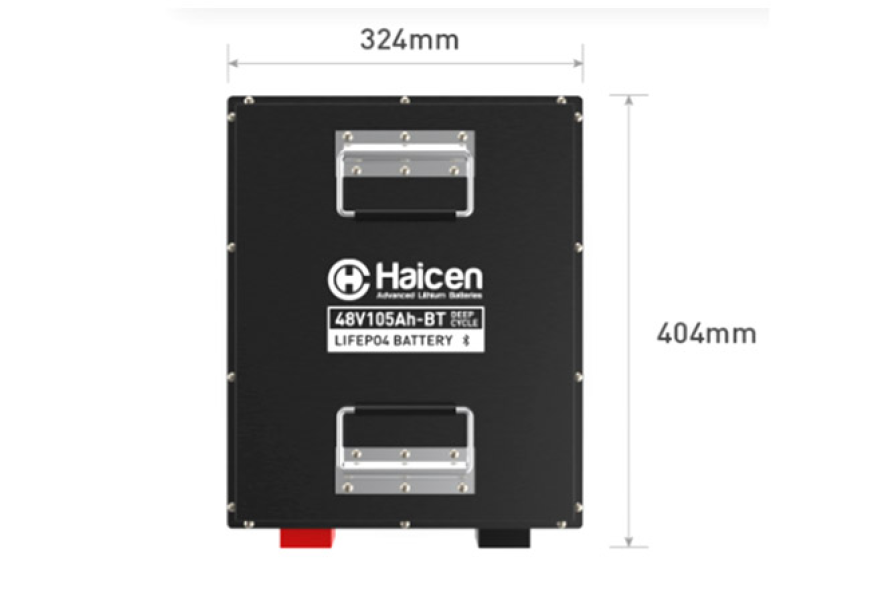

Dimensions:
Internal Structure:
Ideal For: Tech-savvy golfers, fleet managers who need to monitor an entire fleet's health remotely, and course mechanics who want advanced diagnostic tools to simplify maintenance.
Customized Items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Experience Intelligent Power. Download the app preview and see how our smart BMS series brings transparency and control to your golf game.
| TECH & SPECS | Model | |
| HC Golf-48105BT-A | ||
| Electrical Specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 105Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | No | |
| BMS | 16S200A | |
| Bluetooth | Android/IOS | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Optional Function | Rs485 ,CAN; LCD; Active balancing module | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 57.6±0.8V |
| Standard Current | 21A | |
| Fast Current | 52A | |
| Discharge Specifications | Standard Current | 21A |
| Max. Con. Current | 200A | |
| Peak Current | 900A(100ms) | |
| Cut-off Voltage | 40V | |
| Mechanical Specifications | Dimensions (mm) | 404x324x250mm |
| Approx Weight(KG] | 45 | |
| Terminal Type | M8 | |
| Case Color/material | Black Metal case | |
| IP Rating | IP65 | |
| Cell Type | Prismatic cell | |
| Cell holder | Yes | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | |
