Unleash Your Cart's True Potential
Feel the difference weight makes. Our Lightweight Performance Series LiFePO4 battery sheds unnecessary pounds to dramatically improve your cart's acceleration, hill-climbing ability, and agility. By reducing weight by up to 70% compared to lead-acid, this battery doesn't just power your cart—it transforms its entire driving character.
Product advantages:
Enhanced Acceleration & Torque:
Drastically reduce unsprung mass, allowing your motor to deliver power more efficiently for snappier acceleration and improved hill-climbing performance.
Increased Agility and Handling:
A lighter cart is a more nimble cart. Experience improved maneuverability and a smoother ride, especially on uneven terrain.
Reduced Strain on Components:
Less weight means less wear and tear on your cart's brakes, tires, and suspension, leading to lower long-term maintenance costs.
Easier and Safer Installation:
Weighing in at a fraction of lead-acid batteries, installation and maintenance become a simple one-person job, eliminating strain and risk of injury.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Electrical Specifications:
Nominal Voltage76.8V
Nominal Capacity105Ah
Parallel ConnectionMax. 4units
Serial ConnectionNo
BMS24S150A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationRS485, CAN, LCD , Active balancing module
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage86.4V
Standard Current21A
Fast Current52.5A
Discharge Specifications:
Standard Current21A
Max. Con. Current150A
Peak Current300A (200ms)
Cut-off Voltage60V
Mechanical Specifications:
Dimensions (mm)550×310×230mm
Approx Weight(KG)58
Terminal TypeM8
Case Color/materialBlack Metal case
IP RatingIP65
Cell Type3.2V105Ah Prismatic cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-20°C to 45°C （-4°F to 113°F）
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

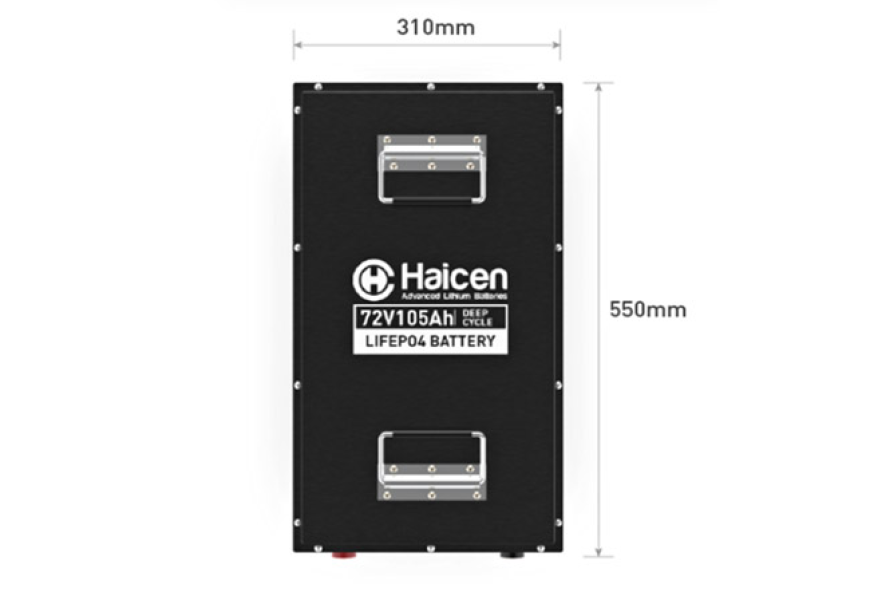

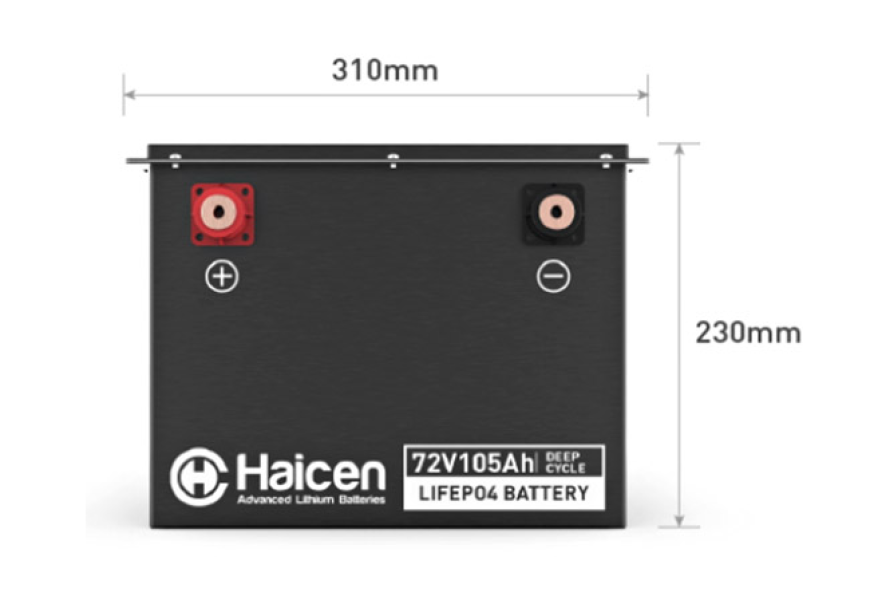

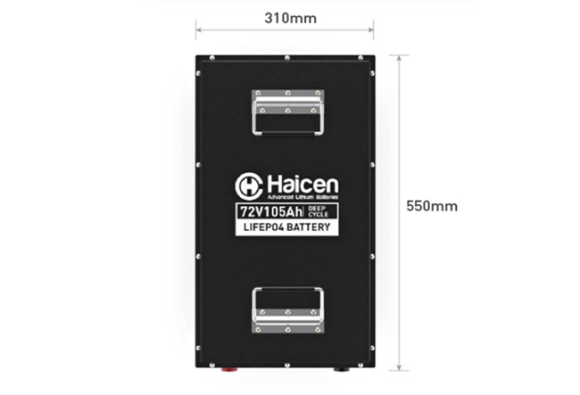

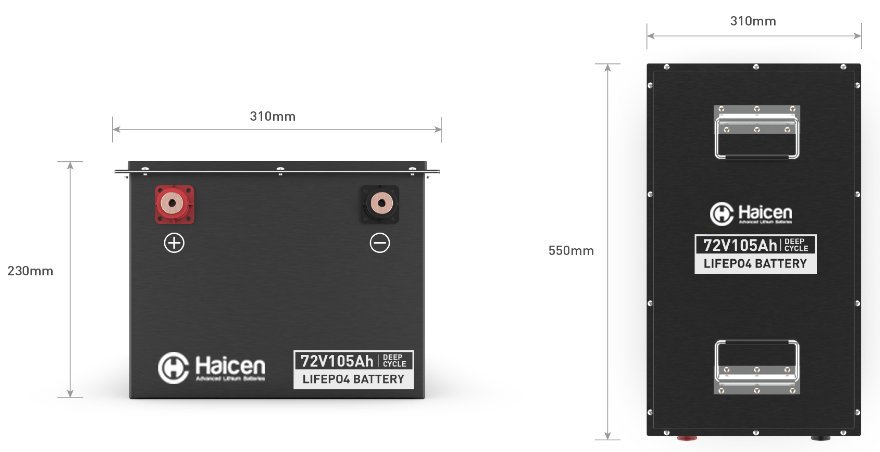

Dimensions:

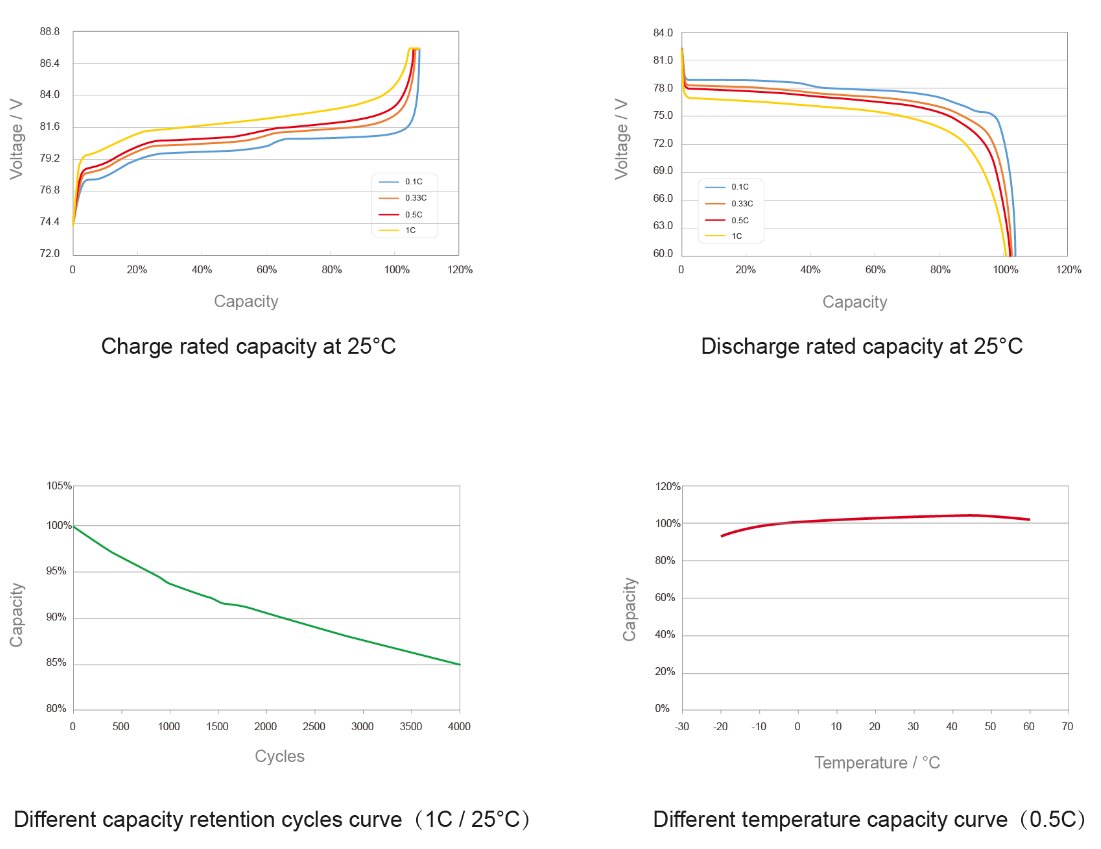

Characteristics Curve:
Ideal For: Performance-oriented golfers, owners of high-speed or upgraded carts, those who play on hilly courses, and anyone who appreciates superior handling and reduced energy consumption.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Experience the Performance Upgrade. Calculate how much weight you can save and feel the difference a lightweight battery makes.
| TECH & SPECS | Model | |
| HC Golf-72105 | ||
| Electrical Specifications | Nominal Voltage | 76.8V |
| Nominal Capacity | 105Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | No | |
| BMS | 24S150A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Optional Function | Rs485 ,CAN; LCD; Active balancing module | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 86.4V |
| Standard Current | 21A | |
| Fast Current | 50A | |
| Discharge Specifications | Standard Current | 21A |
| Max. Con. Current | 150A | |
| Peak Current | 300A(200ms) | |
| Cut-off Voltage | 60V | |
| Mechanical Specifications | Dimensions (mm) | 550x310x230mm |
| Approx Weight(KG] | 58 | |
| Terminal Type | M8 | |
| Case Color/material | Black Metal case | |
| IP Rating | IP65 | |
| Cell Type | Prismatic cell | |
| Cell holder | Yes | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -20℃ to 45℃ (-4℉ to 113℉) | |
LiFePO4 batteries offer significant advantages: they are 50-60% lighter, provide consistent power throughout discharge (no voltage sag), and allow deep discharges up to 80-100% without damage. They also last 5-10x longer (2,000+ cycles), require zero maintenance, and charge 3-5x faster than lead-acid batteries, ensuring uninterrupted rounds and reduced long-term costs.
Yes. Our LiFePO4 batteries are designed as drop-in replacements for common golf cart voltages (36V, 48V, 72V) and fit standard battery trays. They include adaptive BMS to ensure compatibility with both old and new cart motor controllers. Installation requires no modifications for most models.
Our batteries feature Bluetooth-enabled BMS for:
Real-time tracking: Check voltage, state of charge, and health via smartphone.
Maintenance alerts: Receive notifications for charging errors or system faults.
Cycle analytics: View historical data to optimize usage and predict replacement timing.
