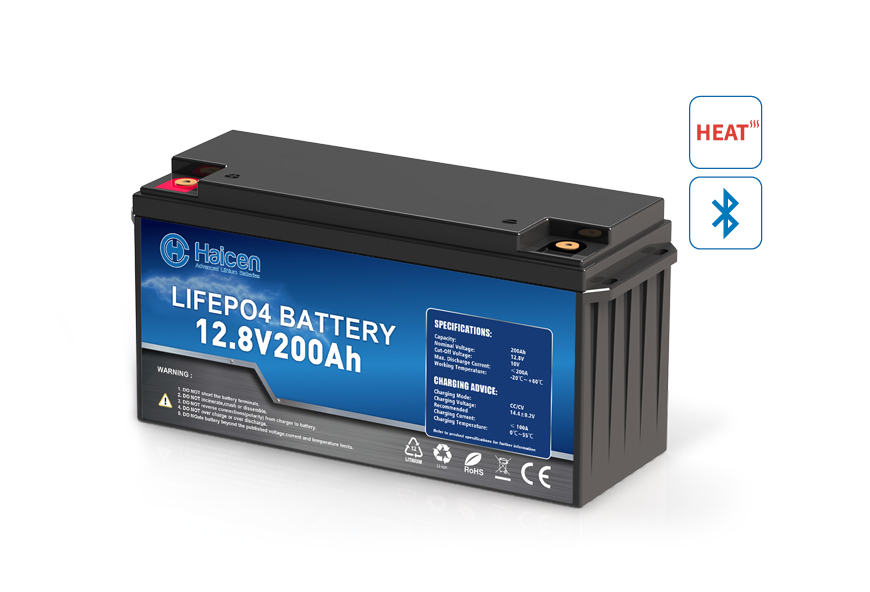

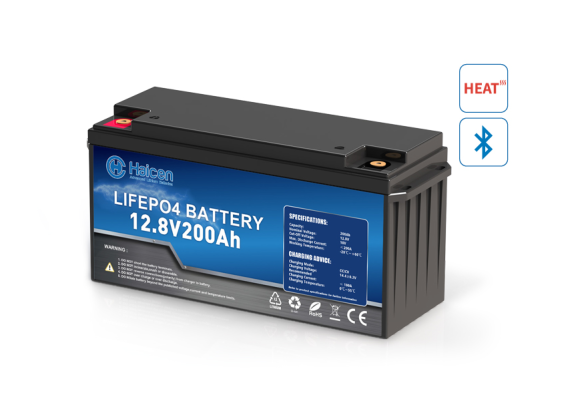

High-Capacity Power for Demanding Group 49 Applications
Meet the energy demands of your largest equipment without sacrificing an inch of space. Our Group 49 LiFePO4 battery delivers massive capacity and robust power in the industry-standard size. It's the ultimate drop-in solution for high-performance applications that require serious, reliable energy all day long.
Engineered for Demanding Applications:
Unrivaled Capacity in a Standard Size:
Packing a high amp-hour (Ah) rating into the standard Group 49 (8D) form factor, it provides exceptional runtime for the most power-hungry devices and systems.
Massive Cranking & Reserve Power:
Delivers explosive starting power (CCA) for large diesel engines and ample reserve capacity (RC) to run accessories for extended periods without the engine running.
Built for Heavy-Duty Use:
Features reinforced terminals and a robust casing designed to handle the high currents and vibrations found in commercial and industrial environments.
Superior Cycle Life:
Outperforms and outlasts any lead-acid equivalent, providing thousands of cycles for a dramatically lower total cost of ownership over its lifespan.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Electrical Specifications:
Nominal Voltage12.8V
Nominal Capacity200Ah
Parallel ConnectionMax. 4units
Serial ConnectionMax. 4units
BMS4S150A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationBluetooth, Heating, Display, RS485 or CANBus
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage14.4±0.2V
Standard Current40A
Fast Current100A
Discharge Specifications:
Standard Current40A
Max. Con. Current150A
Peak Current600A (300ms)
Cut-off Voltage10V
Mechanical Specifications:
Dimensions (mm)490×171×240mm
Approx Weight(KG)18.5
Terminal TypeM8
Case Color/materialBlack Plastic Case (ABS)
IP RatingIP65
Cell Type3.2V100Ah Prismatic Cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-5°C to 45°C （23°F to 113°F）
Engineered for Demanding Applications:
Sustained Power Delivery:
Prismatic cells provide a stable voltage platform, ensuring your cart maintains peak performance throughout its entire charge, not just the first half.
Optimized for OEMs:
We offer cost-effective pricing and rapid delivery schedules on bulk orders, making us the ideal partner for golf cart manufacturers and fleets.
Superior Longevity:
Outlast hundreds of lead-acid charge cycles. The robust build of our prismatic cells translates into a lower total cost of ownership.
Maintenance-Free Reliability:
Seal your investment with a battery that requires no watering, no acid leaks, and no constant maintenance.
Characteristics Curve:
Group49 12.8V200Ah Battery Dimensions:
Ideal For: Large yachts and commercial vessels, heavy-duty trucks and agricultural machinery, large RVs and motorhomes, and as a backbone power source for off-grid solar systems requiring a 12V battery bank.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Power Your Largest Projects with Confidence. Explore the high-capacity specs of our Group 49 lithium solution.
| TECH & SPECS | Model | |
| 12.8V200Ah Deep Cycle Lithium Battery | ||
| Electrical Specifications | Nominal Voltage | 12.8V |
| Nominal Capacity | 200Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | Max. 4units | |
| BMS | 4S150A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | Bluetooth, Heating, Display, RS485 or CANBus | |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 14.4±0.2V |
| Standard Current | 40A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 40A |
| Max. Con. Current | 150A | |
| Peak Current | 600A(300ms) | |
| Cut-off Voltage | 10V | |
| Mechanical Specifications | Dimensions (mm) | 490×171×240mm |
| Approx Weight(KG] | 18.5 | |
| Terminal Type | M8 | |
| Case Color/material | Black Plastic Case (ABS) | |
| IP Rating | IP65 | |
| Cell Type | 3.2V100Ah Prismatic Cell | |
| Temperature Specifications | Charge Temp | 0°C to 55°C （32°F to 131°F） |
| Discharge Temp | -20°C to 60°C （-4°F to 140°F） | |
| Storage Temp | -5°C to 45°C （23°F to 113°F） | |
