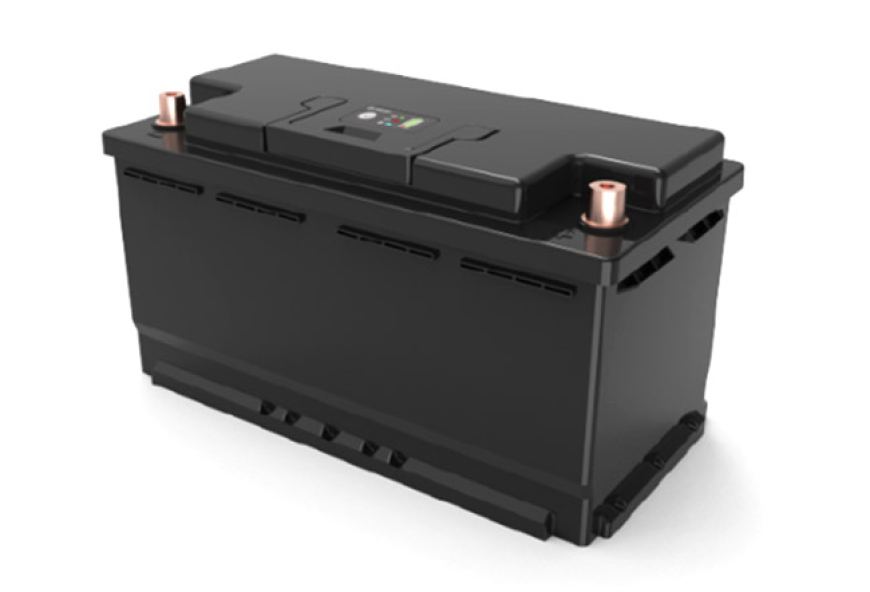

The Ultimate Drop-In Power Upgrade

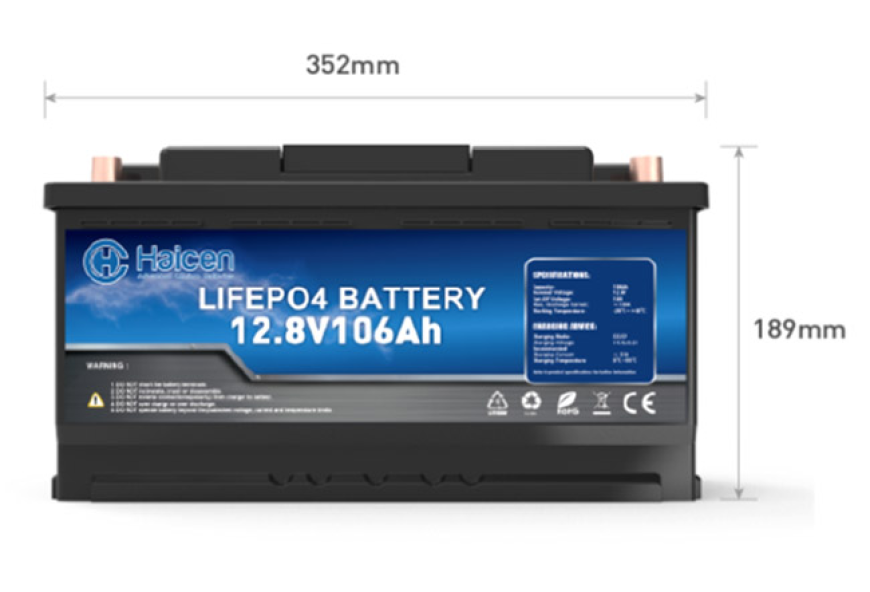

Upgrade your system effortlessly with our fully assembled 12V106Ah LiFePO4 battery pack. Designed to the common 352 size standard, this ready-to-use battery is a direct, hassle-free replacement for traditional lead-acid batteries, delivering instant benefits: more power, zero maintenance, and a dramatically longer lifespan.
Product advantages:
Plug-and-Play Simplicity:
Forget complex wiring or assembly. This is a complete, integrated battery with built-in terminals, ready to connect and power your system immediately.
Smart Built-In Battery Management System (BMS):
Protected against overcharge, over-discharge, short circuit, and over-current. The BMS ensures safety, maximizes performance, and balances the cells for longevity.
Superior Cycle Life:
Experience over 3,000 deep-cycle charges thanks to the high-quality LiFePO4 cells inside, providing years of reliable service.
Maintenance-Free & Lightweight:
Enjoy the convenience of a sealed, zero-maintenance power source that is less than half the weight of an equivalent lead-acid battery.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1973 (Cell) | CE (Pack) | UL9540 (Cell) |
| UN38.3 (Cell / Pack) | IEC62133 (Cell) | ROHS (Cell) |
| IEC62919 (Cell) |

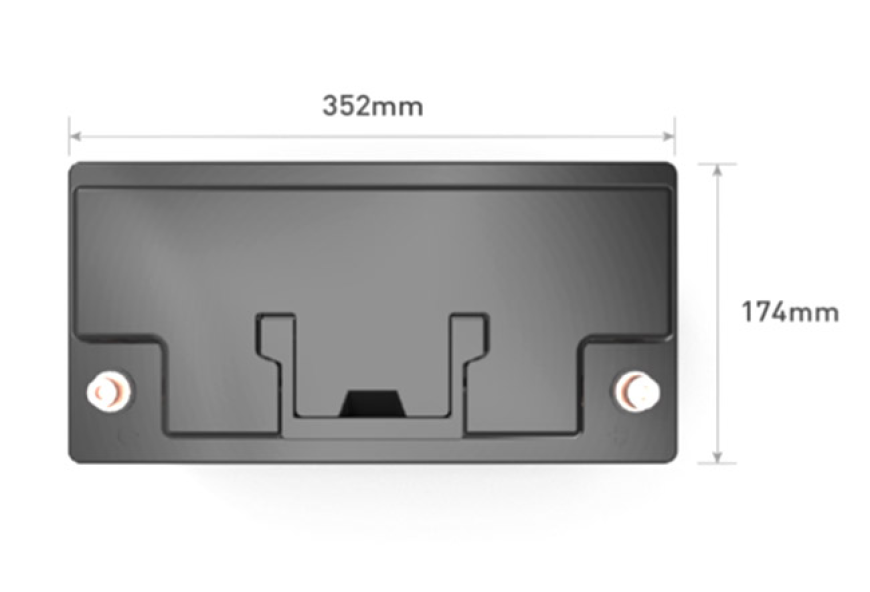

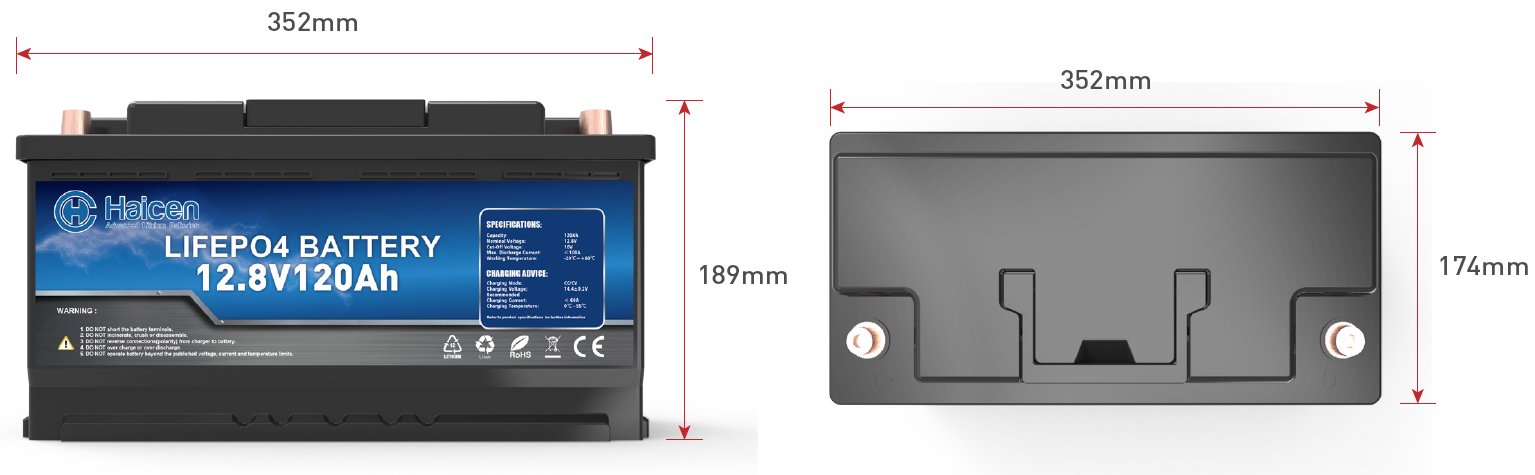

Dimensions:

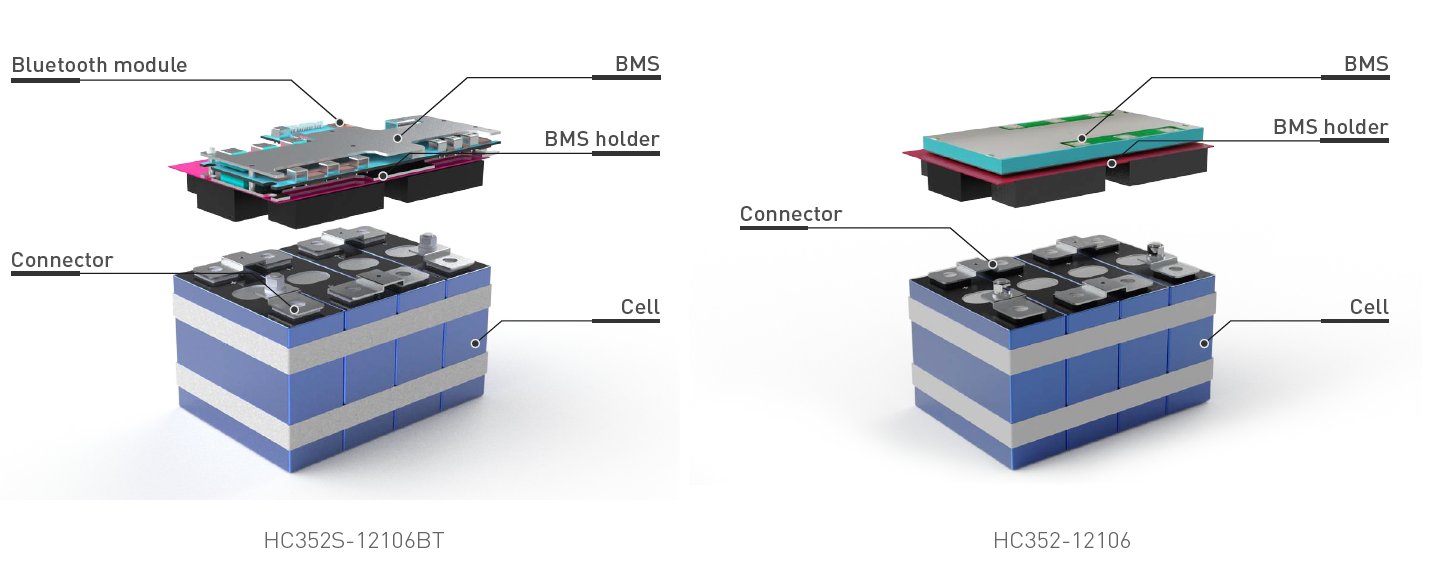

Internal Structure:

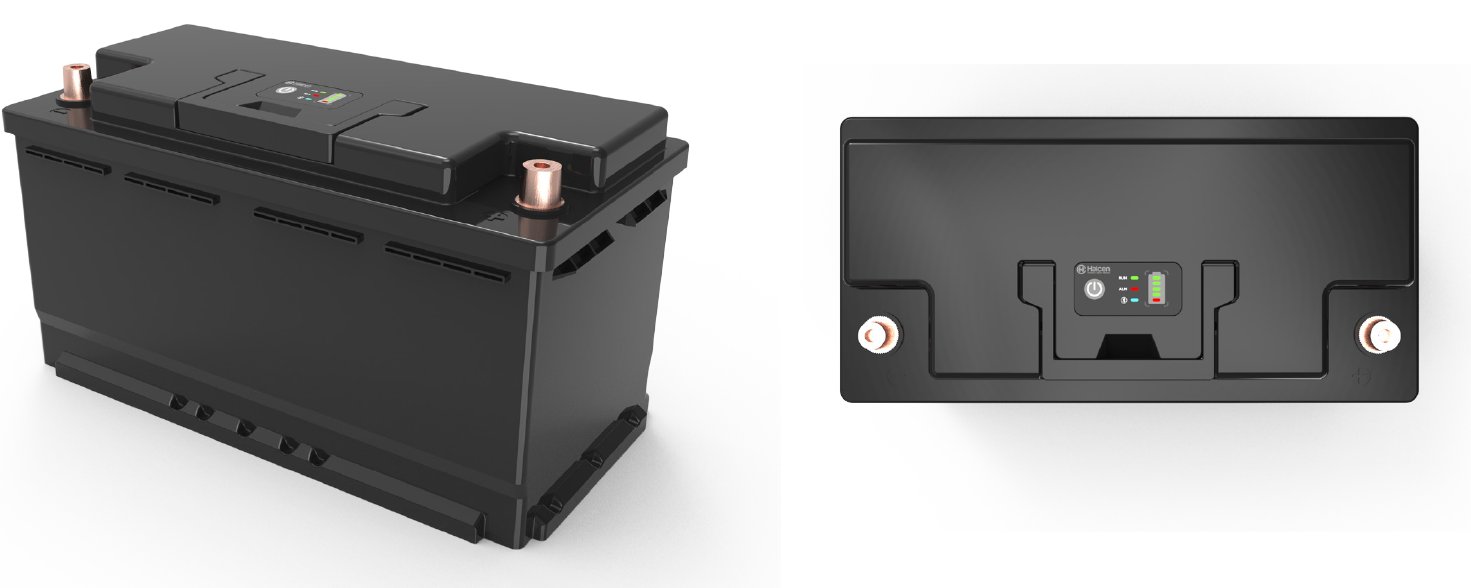

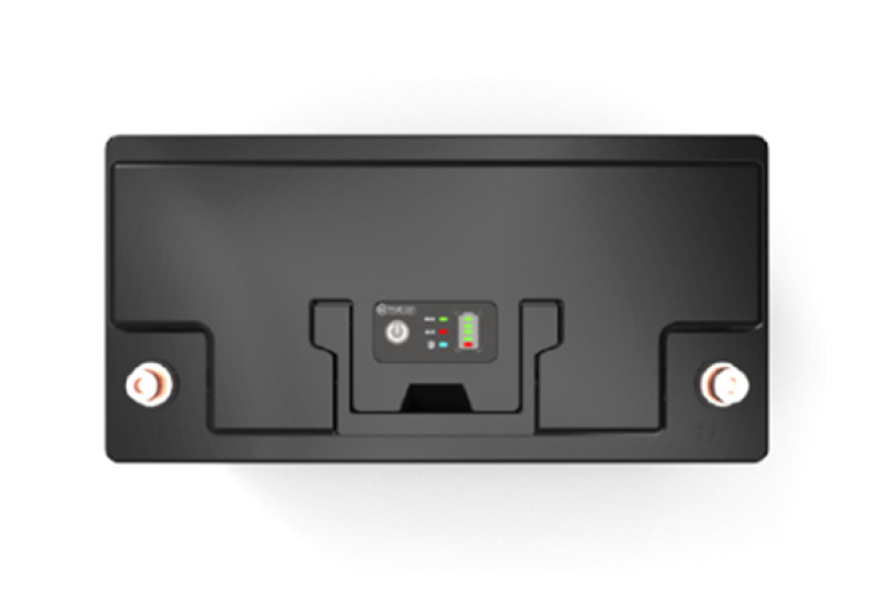

SOC Display (optional):
Characteristics Curve:
Perfect for a Wide Range of 12V Systems: This battery is the ideal choice for solar energy storage systems, powering recreational vehicles (RVs) and campervans, running trolling motors on boats, and providing backup power for off-grid applications.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Upgrade Your Power Today. Check the stock availability and pricing for this specific 12V 106Ah model.
| TECH & SPECS | Model | ||
| HC352-12106 | HC352S-12106BT | ||
| Electrical Specifications | Nominal Voltage | 12.8V | 12.8V |
| Nominal Capacity | 106Ah | 106Ah | |
| Parallel Connection | Max. 4units | Max. 4units | |
| Serial Connection | Max. 4units | Max. 4units | |
| BMS | 4S100A | 4S100A | |
| Bluetooth | No | Android/IOS | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | ||
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | ||
| Self Discharge | Less than 3% per month | ||
| Charge Efficiency | 100%@0.2C | ||
| Discharge Efficiency | 98-100%@1C | ||
| Charge Specifications | Charge Voltage | 14.4±0.2V | 14.4±0.2V |
| Standard Current | 21A | 21A | |
| Fast Current | 53A | 53A | |
| Discharge Specifications | Standard Current | 21A | 21A |
| Max. Con. Current | 100A | 100A | |
| Peak Current | 500A(300ms) | 700A(300ms) | |
| Cut-off Voltage | 10V | 10V | |
| Mechanical Specifications | Dimensions (mm) | 352x174x189mm | |
| Approx Weight(KG) | 10 | 10 | |
| Terminal Type | M8 | ||
| Case Color/material | Black Plastic case(ABS) | ||
| IP Rating | IP65 | ||
| Cell Type | 3.2V106Ah prismatic cell | ||
| Cell holder | Yes | ||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉ to 131℉) | |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | ||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | ||
Prismatic cells offer higher energy density within a compact rectangular design, making them ideal for space-constrained applications. They provide better heat dissipation due to larger surface area, enhanced structural stability, and simpler integration into battery packs. Compared to cylindrical cells, prismatic designs also reduce internal resistance for improved efficiency and support more flexible terminal placement for easier installation.
Yes. Our 12V prismatic LiFePO4 batteries are designed as drop-in replacements for lead-acid batteries (AGM/gel/flooded). They feature standardized terminal layouts (e.g., M8 threads), compatible voltage profiles (12.8V nominal), and built-in BMS to ensure seamless integration with automotive, solar, or marine systems without requiring additional components or modifications.
The Battery Management System (BMS) monitors voltage, current, and temperature in real time. It protects against overcharge, over-discharge, short circuits, and thermal extremes. Additionally, the prismatic cell design inherently resists swelling and leakage, while the robust casing provides mechanical protection and flame retardancy.
