Built for Reliability in Demanding Environments
Our specialized cylindrical lithium cells are optimized for applications where longevity, stability, and performance under slightly elevated temperatures are critical. These cells excel in energy storage systems, telecom backup, and other industrial uses, offering an exceptional cycle life and reliable power when it's needed most.
Key Features:
Enhanced Cycle Life:
Specially formulated for 3000+ deep cycles, ideal for daily charging.
Stable High-Temperature Performance:
Maintains performance and longevity in challenging environments.
High Energy Density:
Offers more watt-hours per cell for longer runtimes.
Extended Shelf Life:
Low self-discharge rate for backup and storage applications.
Cost-Effective for ESS:
Optimized for energy storage system total cost of ownership.

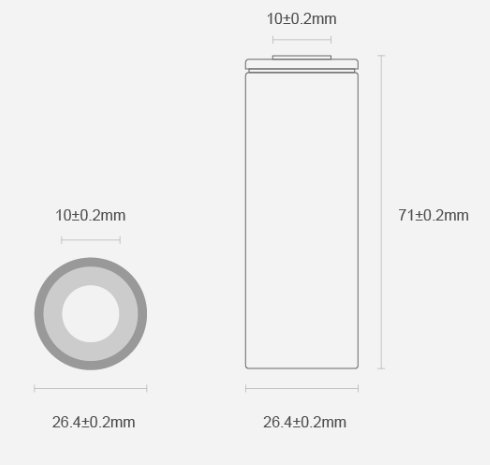

Dimensions:
Major Technical Parameters:
| HCITR26/70-50E | |||
| Item | Standard | Note | |
| Standard Capacity | 5000mAh | 0.5C | |
| Minimum Capacity | 4960mAh | 0.5C | |
| Standard Voltage | 3.2V | ||
| Alternating Internal Resistance | ≤20mΩ | ||
| Charge Conditions | 3.65±0.05V 0.01C | 3.65±0.05V 0.02C | Constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.02C mA |
| Standard Charge Current | 0.2C | ||
| Max. Charging Current | 1C | ||
| Discharge Cut-off Voltage | 2.0V | ||
| Standard Discharge Current | 0.5C | ||
| Max. Continuous Discharge Current | 2C | ||
| Cycle Characteristic | 3000 times (100%DOD) 6000 times (80%DOD) | The residual capacity is no less than 80% of rated capacity at 0.5C rate | |
| Working Temperature | Charge: 0℃~55℃ Discharge: -20℃~60℃ | ||
| Storage Temperature | -20℃~55℃ | Short-term storage (< 3 months) | |
| Cell Weight | <100g | ||

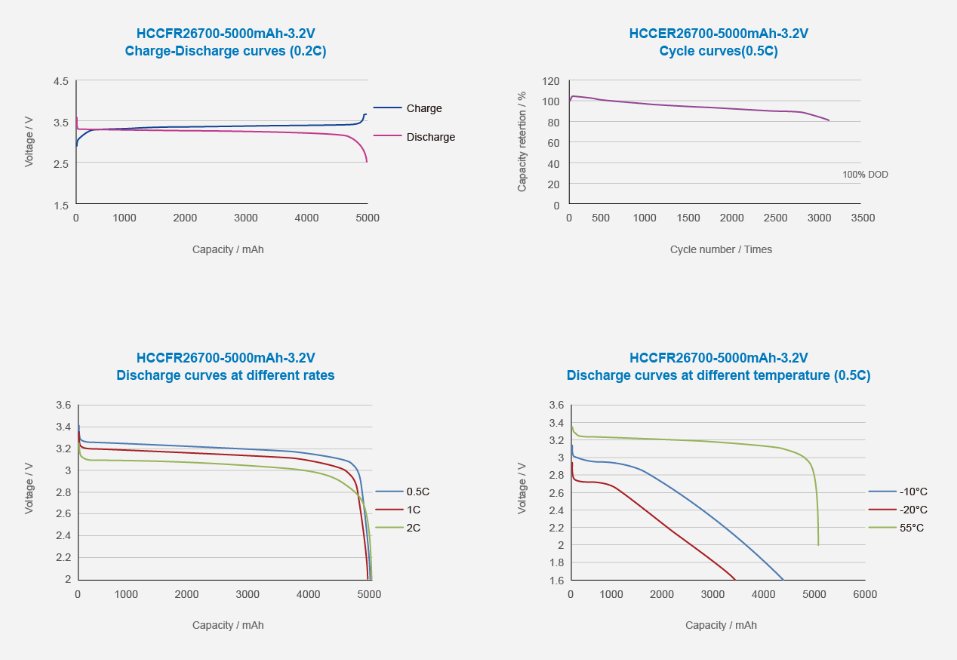

Characteristics Curves:
Applications:
● Home & Commercial Energy Storage Systems (ESS)
● Telecom Base Station Backup Power
● Solar Street Lights and Garden Lights
● Medical and Industrial Equipment
Ready to Upgrade Your Power?
[➔ Download the Full Specification Sheet (PDF)]
[⮟ Contact Our Experts for a Quote]
| HCITR26/70-50E | |||
| Item | Standard | Note | |
| Standard Capacity | 5000mAh | 0.5C | |
| Minimum Capacity | 4960mAh | 0.5C | |
| Standard Voltage | 3.2V | ||
| Alternating Internal Resistance | ≤20mΩ | ||
| Charge Conditions | 3.65±0.05V 0.01C | 3.65±0.05V 0.02C | Constant-current charge to 3.65V at 0.5C, constant voltage charge to stop until 0.02C mA |
| Standard Charge Current | 0.2C | ||
| Max. Charging Current | 1C | ||
| Discharge Cut-off Voltage | 2.0V | ||
| Standard Discharge Current | 0.5C | ||
| Max. Continuous Discharge Current | 2C | ||
| Cycle Characteristic | 3000 times (100%DOD) 6000 times (80%DOD) | The residual capacity is no less than 80% of rated capacity at 0.5C rate | |
| Working Temperature | Charge: 0℃~55℃ Discharge: -20℃~60℃ | ||
| Storage Temperature | -20℃~55℃ | Short-term storage (< 3 months) | |
| Cell Weight | <100g | ||
Our cells incorporate multiple safety features, including proprietary electrode coatings to prevent dendrite formation, built-in CID (Current Interrupt Device) for overpressure protection, and ceramic separators that withstand high temperatures. Each cell undergoes rigorous testing including nail penetration and overcharge tests.
Under standard conditions (25°C, 80% DoD):
LiFePO4 cells: 3,000-5,000 cycles with ≥80% capacity retention
NMC cells: 1,500-2,000 cycles with ≥80% capacity retention
Actual lifespan depends on operating temperature, discharge rates, and maintenance practices.
All cells meet international standards including UN38.3, IEC62619, and UL1642. Our manufacturing process is ISO9001 certified, with complete traceability from raw materials to finished products. Each batch undergoes comprehensive testing including cycle life, internal resistance, and thermal stability assessments.
