Connected Power for the Tech-Savvy Golfer
Stay informed with real-time battery monitoring through our smart Bluetooth system. Track charge levels, predict runtime, and optimize performance directly from your smartphone.
Product advantages:
Real-time Monitoring - Mobile app displays battery status
Smart Prediction - AI algorithm predicts remaining range
Data Logging - Complete charge/discharge history
Precision Metering - ±1% SOC accuracy
Smart Alerts - Early warnings for low power and maintenance
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Electrical Specifications:
Nominal Voltage48V
Nominal Capacity64Ah
Parallel ConnectionMax. 4units
Serial ConnectionNo
BMS16S100A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationRS485, CAN, LCD , Active balancing module
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage57.6±0.8V
Standard Current12.8A
Fast Current32A
Discharge Specifications:
Standard Current12.8A
Max. Con. Current64A
Peak Current700A (300ms)
Cut-off Voltage40V
Mechanical Specifications:
Dimensions (mm)440×285×230mm
Approx Weight(KG)32
Terminal TypeM8
Case Color/materialBlack Metal case
IP RatingIP65
Cell TypeCylinder LiFePO4 cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-20°C to 45°C （-4°F to 113°F）
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

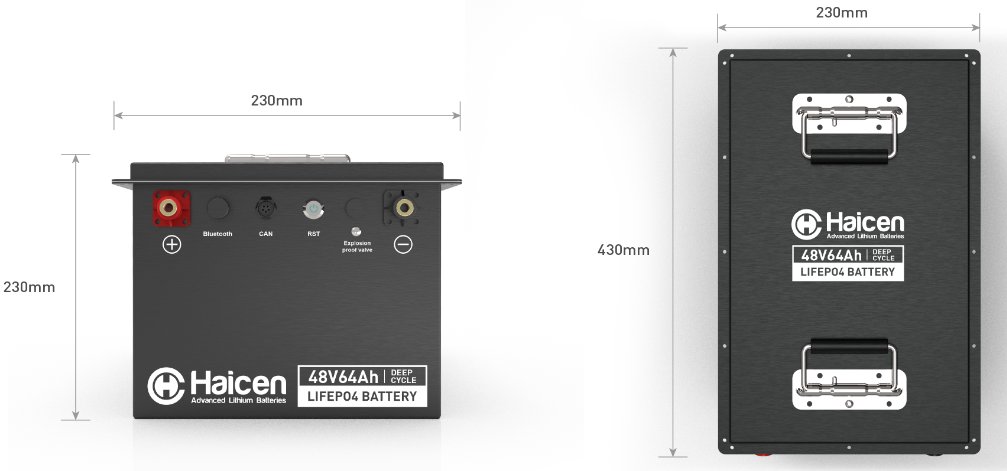

Dimensions:

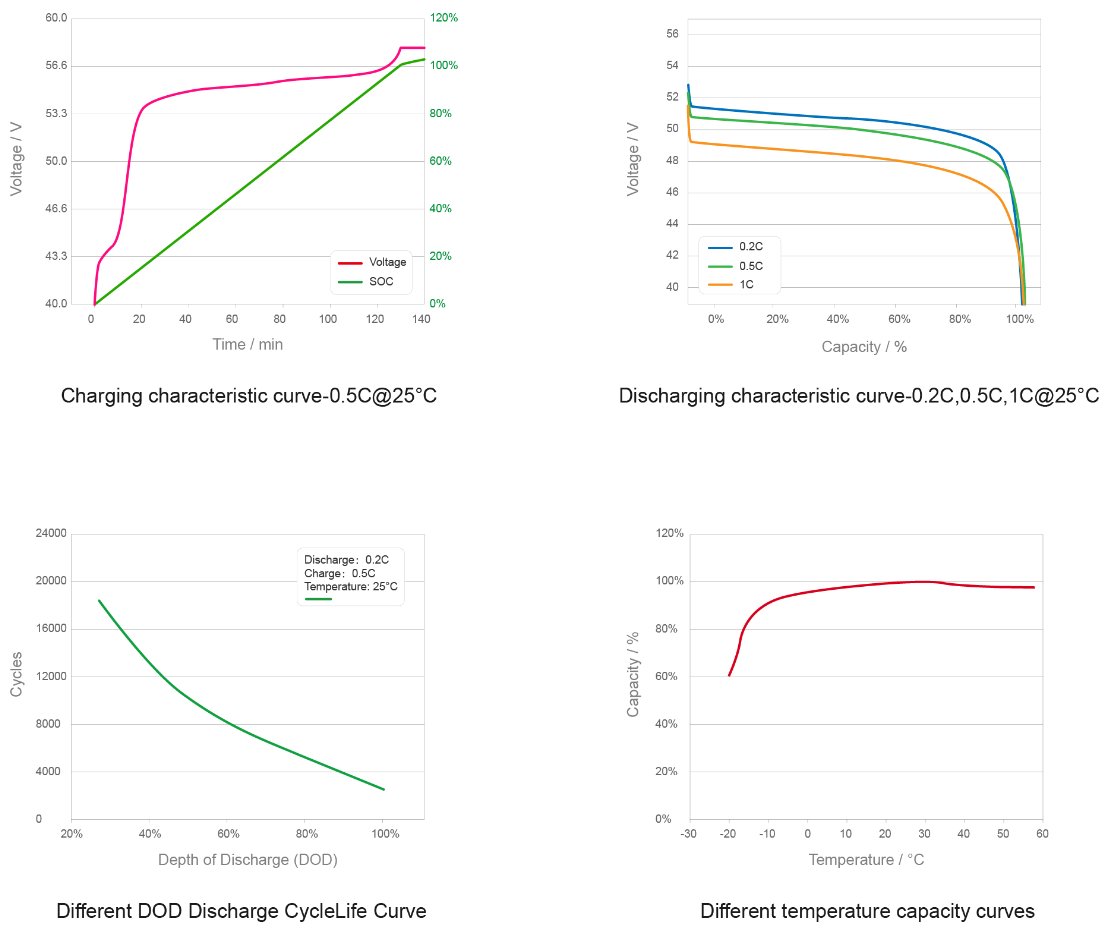

Characteristics Curve:
Market Applications:
● Tech-savvy golfers and young players
● Tournaments requiring precise power management
● Golf cart modification enthusiasts
● Modern courses emphasizing data management
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Ready to Upgrade Your Power?
[➔ Download the Full Specification Sheet (PDF)]
[⮟ Contact Our Experts for a Quote]
| TECH & SPECS | Model | |
| HC Golf-4864 | ||
| Electrical Specifications | Nominal Voltage | 48V |
| Nominal Capacity | 64Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | No | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Optional Function | Rs485 ,CAN; LCD; Active balancing module | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 57.6±0.8V |
| Standard Current | 12.8A | |
| Fast Current | 32A | |
| Discharge Specifications | Standard Current | 12.8A |
| Max. Con. Current | 64A | |
| Peak Current | 700A(300ms) | |
| Cut-off Voltage | 40V | |
| Mechanical Specifications | Dimensions (mm) | 440x285x230mm |
| Approx Weight(KG] | 32 | |
| Terminal Type | M8 | |
| Case Color/material | Black Metal case | |
| IP Rating | IP65 | |
| Cell Type | Cylinder LiFePO4 cell | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -20℃ to 45℃ (-4℉ to 113℉) | |
