Engineered for the Internet of Things
Powering the Internet of Things requires a new kind of battery. Haicen's thin-profile lithium batteries are the ideal power core for smart home gadgets and IoT sensors, delivering years of maintenance-free operation. Enable your devices to work smarter and longer, even in challenging environments.
Product advantages:
Exceptional Longevity:
Our batteries are optimized for low-power applications, enabling devices to run for months or even years on a single charge, drastically reducing maintenance visits.
Ultra-Low Self-Discharge:
A battery that stays charged when you need it most. Our cells retain charge significantly longer during storage, ensuring devices are ready for action.
Wide Operating Temperature Range:
Perform reliably in both indoor and outdoor conditions, from the chill of a warehouse to the heat of an attic.
Compact and Lightweight:
The slim form factor is perfect for space-constrained IoT devices and sleek smart home products without adding bulk.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

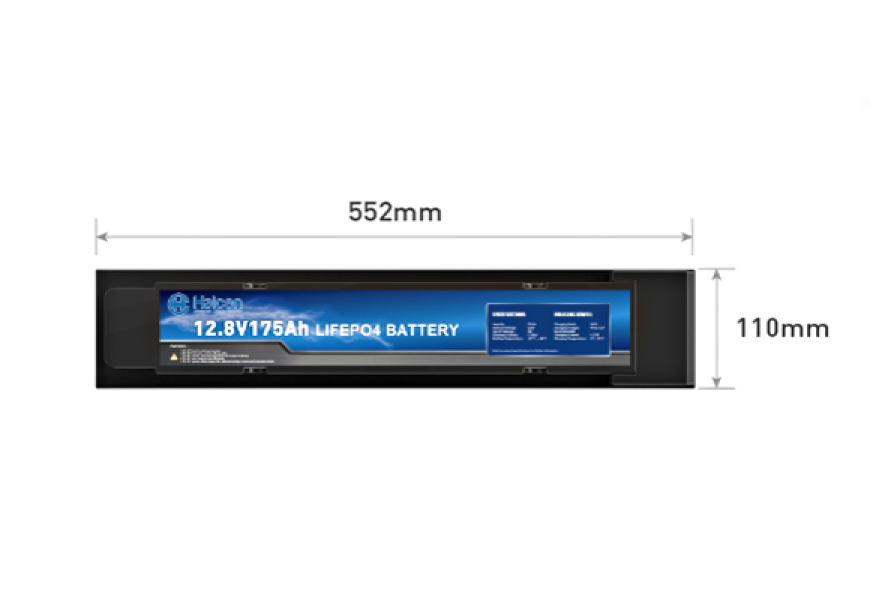

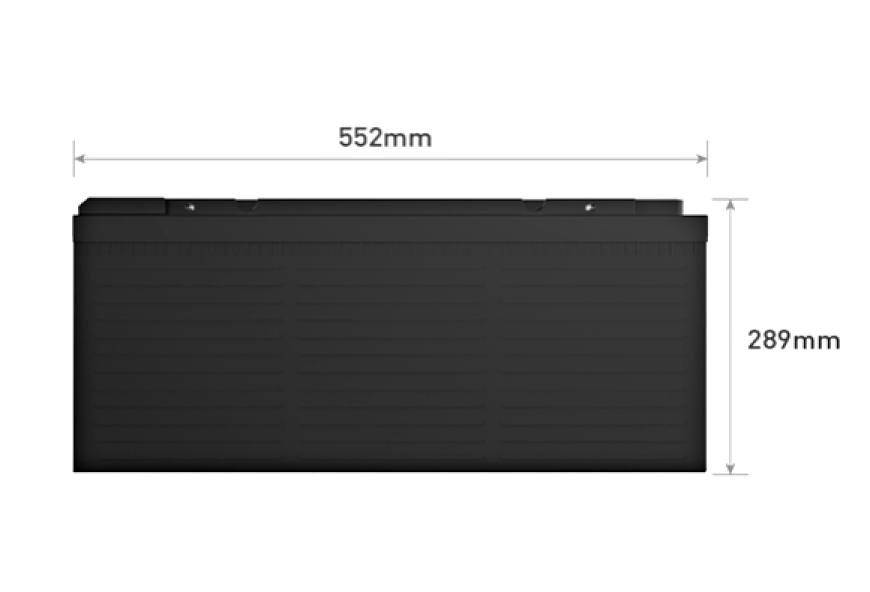

Dimensions:
Internal Structure:

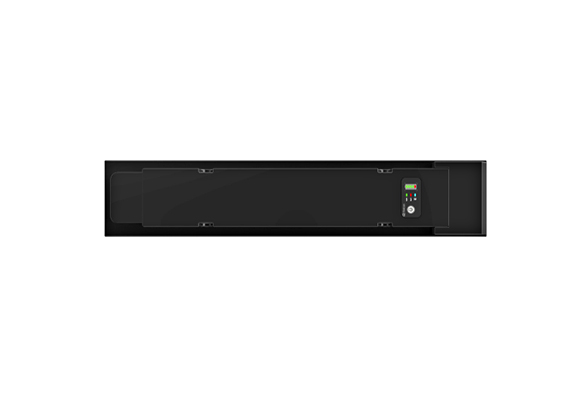

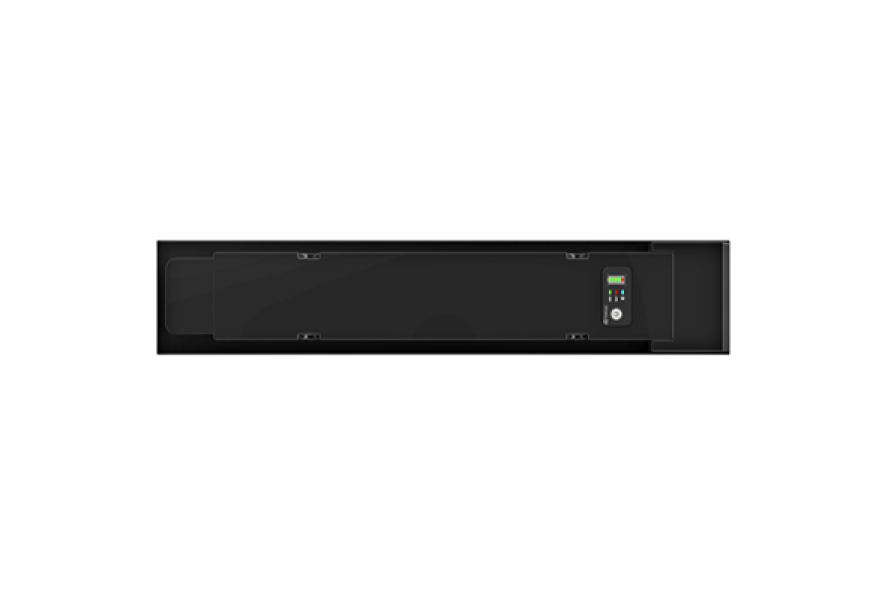

SOC Display (optional):
Characteristics Curve:
Perfect for: Smart locks, environmental sensors (temperature/humidity), wearable health trackers, asset tags, wireless modules, and voice-controlled assistants.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Engineer worry-free connectivity. Download our technical guide for IoT battery selection or speak to our team about a custom solution for your volume production.
| TECH & SPECS | Model | ||
| HC552S-12175BT | HC552S-12200BT | ||
| Electrical Specifications | Nominal Voltage | 12.8V | 12.8V |
| Nominal Capacity | 175Ah | 200Ah | |
| Parallel Connection | Max. 6units | Max. 6units | |
| Serial Connection | Max. 4units | Max. 4units | |
| BMS | 4S150A | 4S150A | |
| Bluetooth | Android/IOS | Android/IOS | |
| Heat | No | Yes | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp | ||
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | ||
| Self Discharge | Less than 3% per month | ||
| Charge Efficiency | 100%@0.2C | ||
| Discharge Efficiency | 98-100%@1C | ||
| Charge Specifications | Charge Voltage | 14.4±0.2V | 14.4±0.2V |
| Standard Current | 35A | 40A | |
| Fast Current | 87A | 100A | |
| Discharge Specifications | Standard Current | 35A | 40A |
| Max. Con. Current | 150A | 150A | |
| Peak Current | 800A(300ms) | 800A(300ms) | |
| Cut-off Voltage | 10V | 10V | |
| Mechanical Specifications | Dimensions (mm) | 552x110x289mm | |
| Approx Weight(KG] | 18.5 | 20.5 | |
| Terminal Type | M8 | ||
| Case Color/material | Black Plastic case(ABS) | ||
| IP Rating | IP65 | ||
| Cell Type | Cylinder LiFePO4 cell | ||
| Cell holder | Yes | ||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉ to 131℉) | |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | ||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | ||

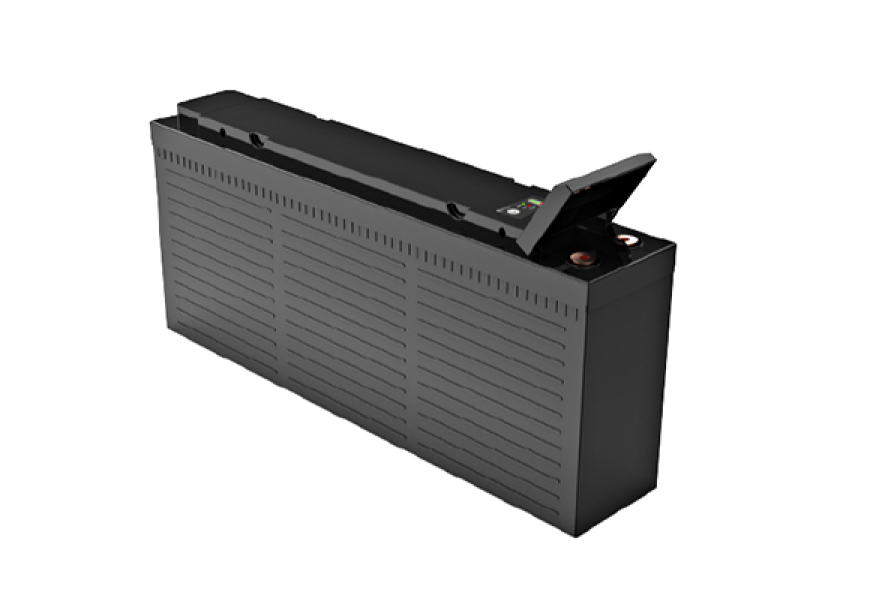

Our Slimline Smart LiFePO4 Battery combines an ultra-thin profile with advanced intelligent management systems. Unlike standard lithium batteries, it features integrated Bluetooth connectivity for real-time monitoring (voltage, temperature, state of charge), built-in Battery Management System (BMS) protection, and a compact design optimized for space-constrained applications like marine, RV, and portable energy systems. Its high energy density and lightweight structure ensure maximum power without compromising safety or performance.
The Bluetooth module enables wireless communication with smartphones or tablets via a dedicated app. Users can remotely monitor battery status (e.g., cycle count, health metrics), receive alerts for abnormal conditions (overvoltage, overheating), and adjust settings in real time. This proactive management extends battery lifespan and prevents operational failures.
The battery employs multi-layered safety protocols:
Advanced BMS: Protects against overcharge, over-discharge, short circuits, and temperature extremes.
Thermal Stability: LiFePO4 chemistry inherently resists thermal runaway.
Mechanical Robustness: Slimline design with impact-resistant casing and flame-retardant materials.
