The Reliable Workhorse for Everyday Golf
Meet the dependable heart of your golf cart. Our Standard Series LiFePO4 battery delivers all the essential benefits of lithium technology—maintenance-free operation, long life, and lightweight power—in a no-frills, proven package. It's the straightforward, reliable upgrade you've been waiting for, offering exceptional value and performance for the everyday golfer.
Key Benefits:
Proven Core Lithium Technology:
Experience the fundamental advantages of safe, stable LiFePO4 chemistry, providing consistent power and a lifespan that dwarfs any lead-acid battery.
Essential Protection Built-In:
A reliable built-in BMS safeguards against overcharging, deep discharge, and short circuits, ensuring safety and long-term durability without complexity.
Zero Maintenance, Full Freedom:
Never water a battery again. Enjoy a sealed, hassle-free power source that eliminates corrosion and monthly upkeep, saving you time and money.
Instant Lead-Acid Replacement:
Designed as a direct drop-in replacement, upgrading is simple. Just install, charge, and play.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

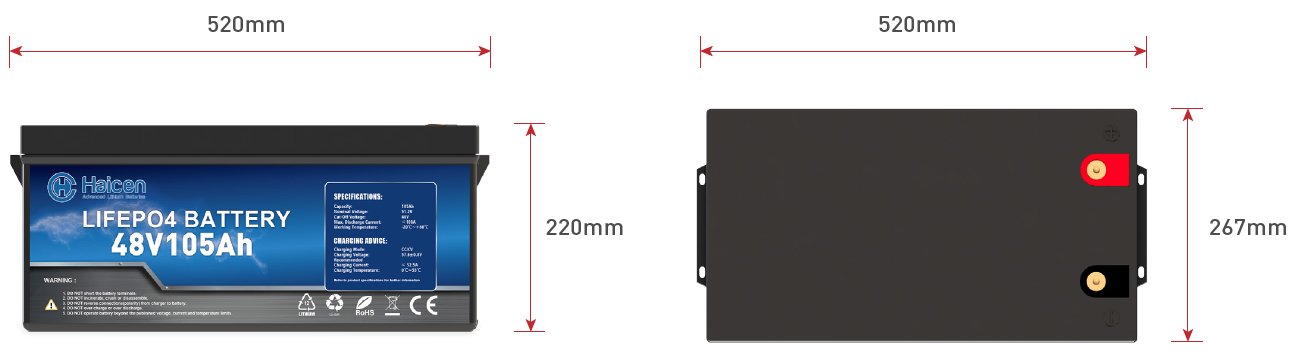

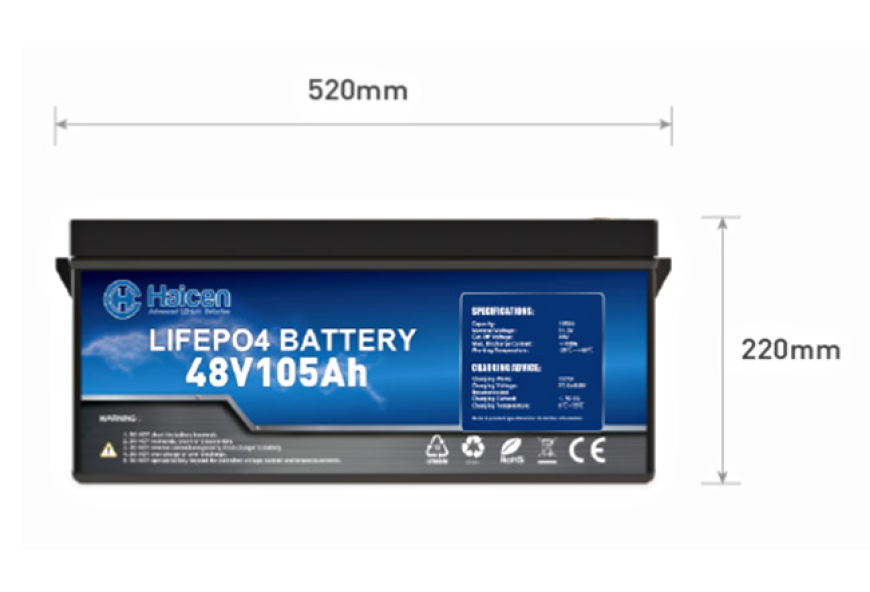

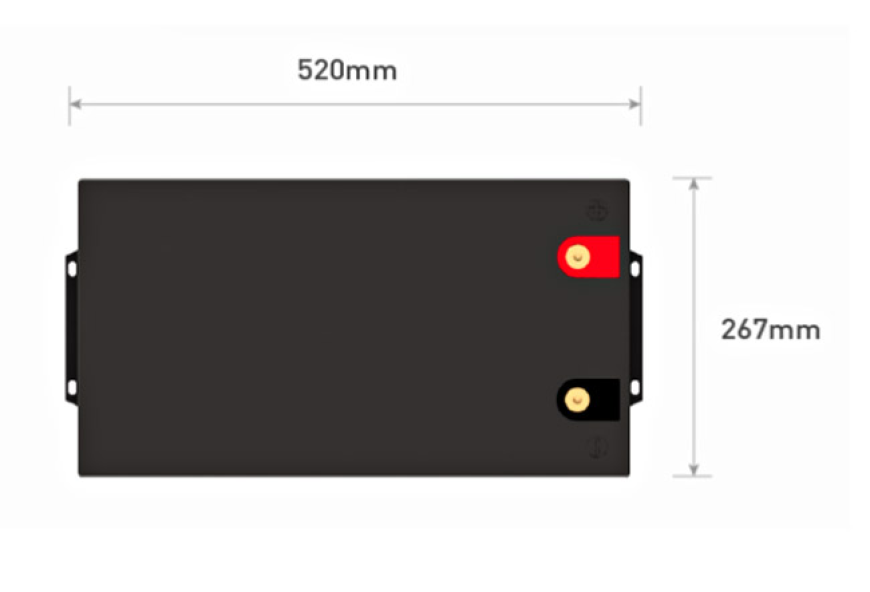

Dimensions:

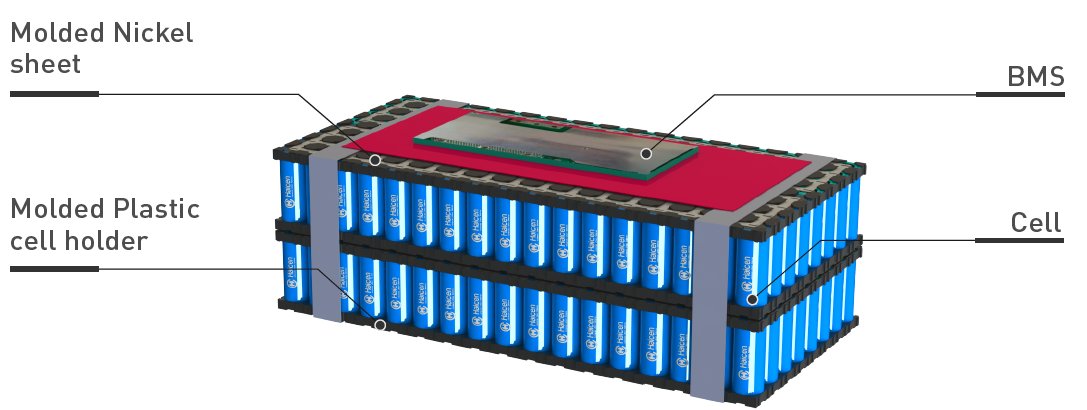

Internal Structure:
SOC Display (optional):

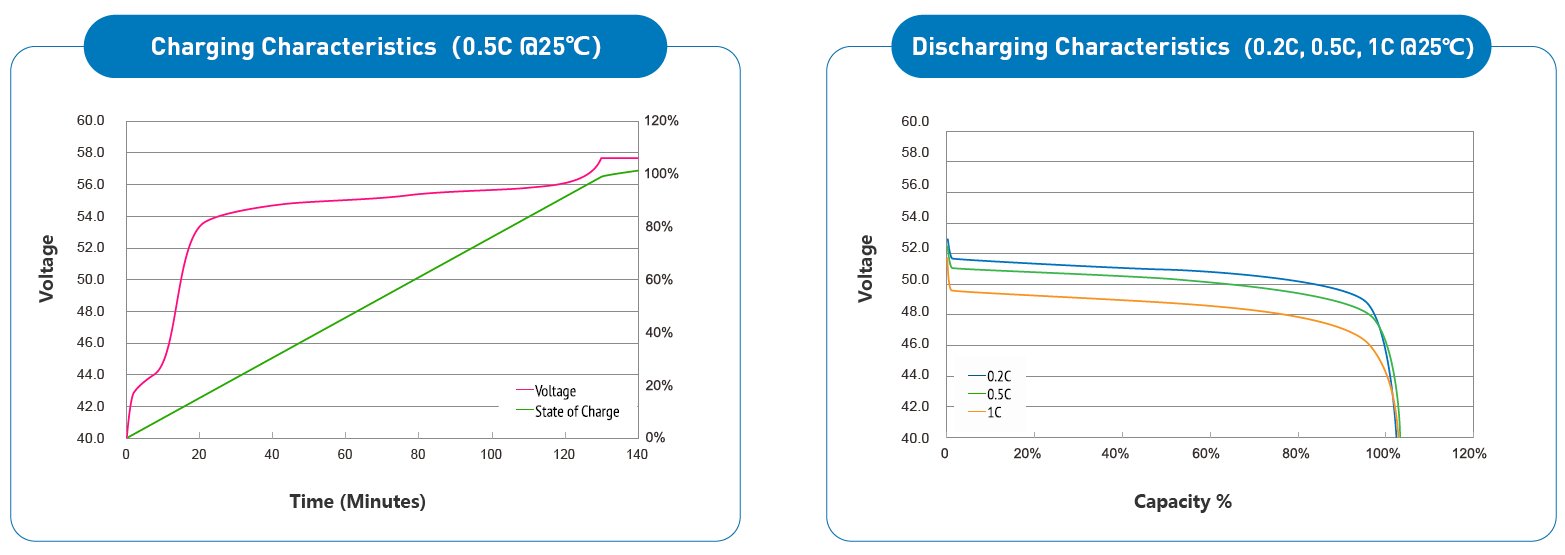

Characteristics Curve:
Ideal For: The everyday golfer, weekend players, and personal cart owners seeking a dependable, set-and-forget battery that delivers reliable performance for years without a premium price tag.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Upgrade to Simple, Reliable Power. Discover our most popular standard model and experience the essential lithium advantage.
| TECH & SPECS | Model | ||
| HCG8D-48105 | HCG8DS-48105BT | ||
| Electrical Specifications | Nominal Voltage | 51.2V | 51.2V |
| Nominal Capacity | 105Ah | 105Ah | |
| Parallel Connection | Max.6units | Max.6units | |
| Serial Connection | NO | NO | |
| BMS | 16S200A | 16S200A | |
| Bluetooth | No | Android/IOS | |
| Heat | No | No | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance, Low temp | ||
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | ||
| Self Discharge | Less than 3% per month | ||
| Charge Efficiency | 100%@0.2C | ||
| Discharge Efficiency | 98-100%@1C | ||
| Charge Specifications | Charge Voltage | 57.6±0.8V | 57.6±0.8V |
| Standard Current | 21A | 21A | |
| Fast Current | 52A | 52A | |
| Discharge Specifications | Standard Current | 21A | 21A |
| Max. Con. Current | 100A | 100A | |
| Peak Current | 850A(20ms) | 900A(100ms) | |
| Cut-off Voltage | 40V | 40V | |
| Mechanical Specifications | Dimensions (mm) | 552x110x289mm | |
| Approx Weight(KG] | 38 | 38 | |
| Terminal Type | M8 | ||
| Case Color/material | Black Plastic case(ABS) | ||
| IP Rating | IP65 | ||
| Cell Type | Cylinder LiFePO4 cell | ||
| Cell holder | Yes | ||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉ to 131℉) | |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | ||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | ||
LiFePO4 batteries offer significant advantages: they are 50-60% lighter, provide consistent power throughout discharge (no voltage sag), and allow deep discharges up to 80-100% without damage. They also last 5-10x longer (2,000+ cycles), require zero maintenance, and charge 3-5x faster than lead-acid batteries, ensuring uninterrupted rounds and reduced long-term costs.
Yes. Our LiFePO4 batteries are designed as drop-in replacements for common golf cart voltages (36V, 48V, 72V) and fit standard battery trays. They include adaptive BMS to ensure compatibility with both old and new cart motor controllers. Installation requires no modifications for most models.
Our batteries feature Bluetooth-enabled BMS for:
Real-time tracking: Check voltage, state of charge, and health via smartphone.
Maintenance alerts: Receive notifications for charging errors or system faults.
Cycle analytics: View historical data to optimize usage and predict replacement timing.
