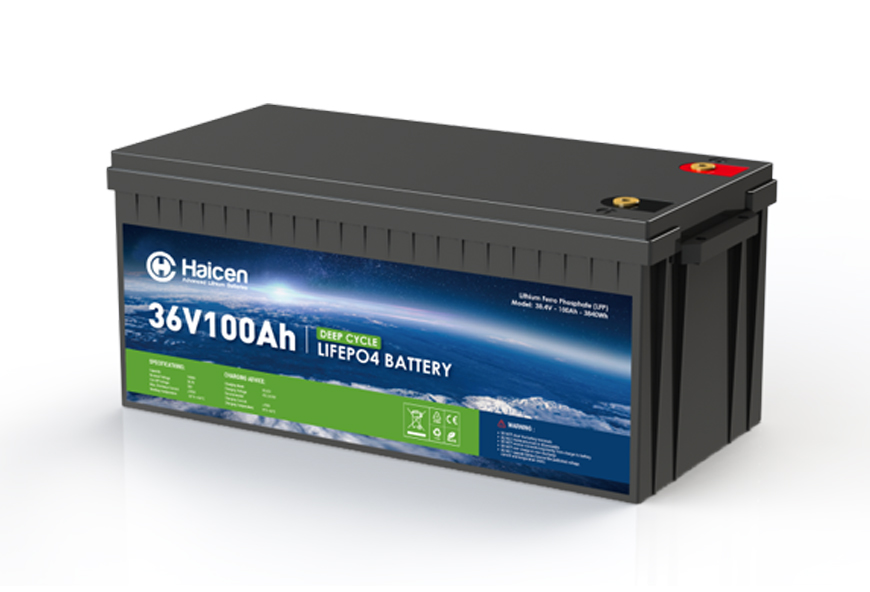

The Precision Engineered Heart of Your 36V System
Breathe new life into your 36V platform. This complete G4D 36V 100Ah battery pack is designed as a direct, hassle-free replacement for outdated lead-acid setups. It delivers instant benefits: dramatic weight reduction, zero maintenance, and consistent power that revitalizes your vehicle's performance.
Key Features:
Complete 36V Integration:
A fully assembled battery pack with an integrated BMS tuned for 36V operation, providing optimal performance and protection out of the box.
Revolutionary Weight Savings:
Weighs a fraction of three 12V lead-acid batteries, reducing vehicle weight by hundreds of pounds to improve efficiency, acceleration, and reduce wear on components.
Optimized Voltage Platform:
Provides the perfect voltage for 36V motor controllers, ensuring full power utilization and compatibility without the need for voltage converters.
Maintenance-Free Reliability:
A sealed, rugged design means no more watering, no corrosive acid leaks, and no need for equalization charges. Install it and forget it.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Electrical Specifications:
Nominal Voltage38.4V
Nominal Capacity100Ah
Parallel ConnectionMax. 4units
Serial ConnectionNO
BMS12S100A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationBluetooth, Heating, Display, RS485 or CANBus
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage43.2±0.6V
Standard Current20A
Fast Current50A
Discharge Specifications:
Standard Current20A
Max. Con. Current100A
Peak Current500A(300ms)
Cut-off Voltage30V
Mechanical Specifications:
Dimensions (mm)521x238x218mm (G4D)
Approx Weight(KG)27
Terminal TypeM8
Case Color/materialBlack Plastic case (ABS)
IP RatingIP65
Cell Type3.2V100Ah Prismatic cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-5°C to 45°C （23°F to 113°F）

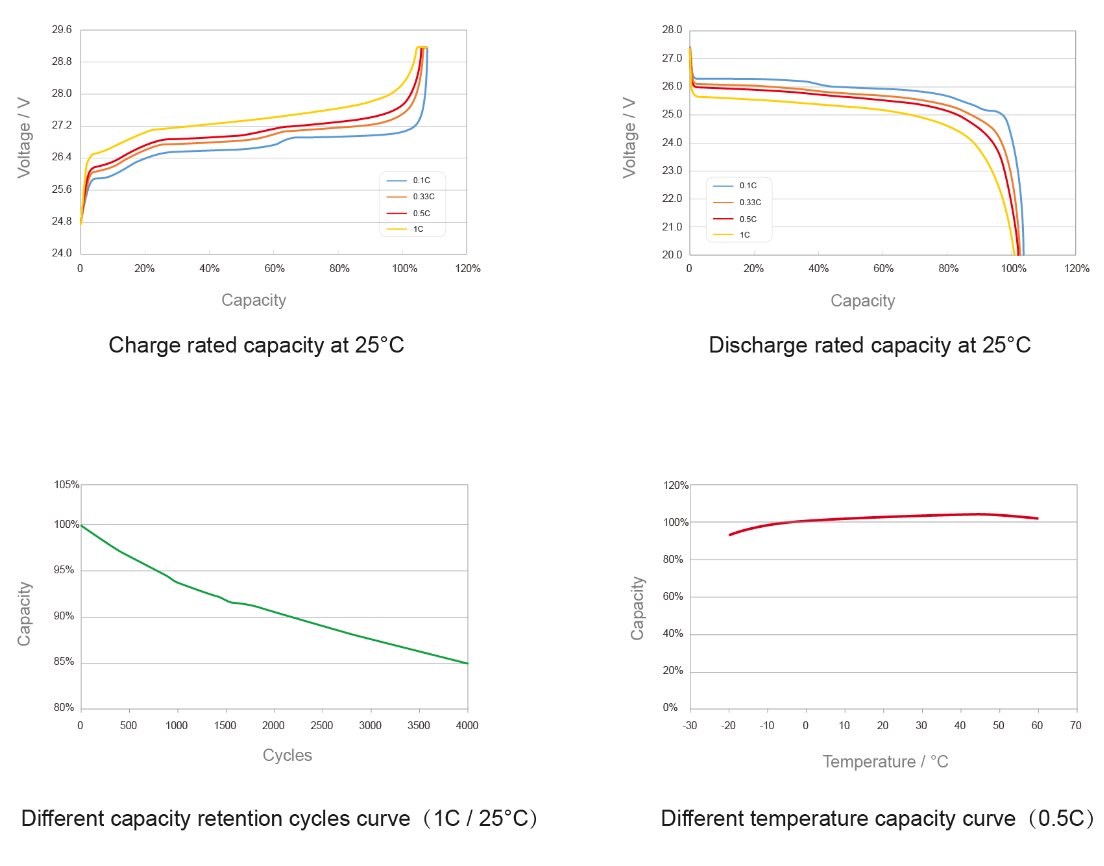

Characteristics Curve:

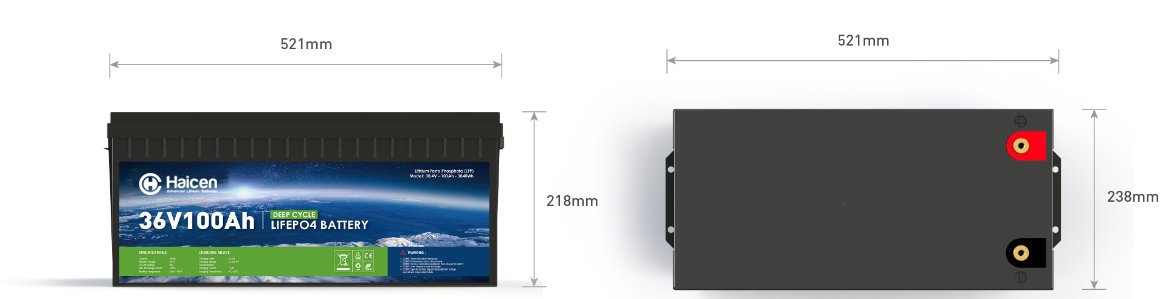

Group 36V100Ah Battery Dimensions:
Ideal For: 36V EZ-GO and Club Car golf carts (e.g., older TXT models), some industrial floor cleaners, and a variety of older electric vehicles and material handling equipment designed around a 36V architecture.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Revitalize Your 36V Vehicle. Confirm your model's voltage and discover how this pack can restore like-new performance.
| TECH & SPECS | Model | |
| 36V100Ah Deep Cycle Lithium Battery | ||
| Electrical Specifications | Nominal Voltage | 38.4V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | NO | |
| BMS | 12S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | Bluetooth, Heating, Display, RS485 or CANBus | |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 43.2±0.6V |
| Standard Current | 20A | |
| Fast Current | 50A | |
| Discharge Specifications | Standard Current | 20A |
| Max. Con. Current | 100A | |
| Peak Current | 500A(300ms) | |
| Cut-off Voltage | 30V | |
| Mechanical Specifications | Dimensions (mm) | 521x238x218mm (G4D) |
| Approx Weight(KG] | 27 | |
| Terminal Type | M8 | |
| Case Color/material | Black Plastic Case (ABS) | |
| IP Rating | IP65 | |
| Cell Type | 3.2V100Ah Prismatic Cell | |
| Temperature Specifications | Charge Temp | 0°C to 55°C （32°F to 131°F） |
| Discharge Temp | -20°C to 60°C （-4°F to 140°F） | |
| Storage Temp | -5°C to 45°C （23°F to 113°F） | |
A deep cycle battery is designed to provide sustained power over extended periods and can be discharged up to 80% of its capacity repeatedly without damage. Unlike automotive starter batteries (which deliver short, high-current bursts for engine ignition), deep cycle batteries prioritize deep discharges and recharges. They feature thicker plates and denser active material to withstand cycling stress, making them ideal for renewable energy, marine, RV, and industrial applications.
Recharge immediately after use to avoid prolonged states of partial or full discharge. Do not regularly discharge below 50% Depth of Discharge (DoD) for lead-acid types or 80% for LiFePO4 batteries. For optimal longevity, recharge when the battery reaches 50% capacity (lead-acid) or 20% (LiFePO4). Avoid storing the battery in a discharged state, as sulfation (lead-acid) or cell degradation (lithium) can occur.
Lifespan depends on chemistry, usage, and maintenance:
Flooded Lead-Acid: 3–7 years (with regular watering and equalization).
AGM/Gel: 4–8 years (maintenance-free but sensitive to overcharging).
LiFePO4: 10–15 years (2,000+ cycles at 80% DoD; minimal maintenance).
Factors like depth of discharge, temperature, and charging practices significantly impact longevity.
