Power Mobility and Innovation
In a world where technology is in-hand, power shouldn't be a constraint. Haicen's portable slim batteries are engineered to unleash the full potential of your handheld devices. We provide the lightweight, durable energy source that empowers users to work and create freely, without being tethered to an outlet.
Product advantages:
Lightweight Power for Maximum Portability:
Our advanced lithium-polymer cells significantly reduce device weight, enhancing user comfort and mobility for applications where every gram counts.
Extended Runtime for All-Day Operation:
Experience uninterrupted productivity. Our high-efficiency designs deliver exceptional energy capacity, ensuring your devices last through the longest shifts or projects.
Ergonomic Design for User Comfort:
Beyond power, we design for people. Our slim profiles allow for sleek, comfortable device contours that feel natural in the hand, improving the overall user experience.
Rugged and Reliable:
Built to withstand the rigors of daily use, our batteries undergo strict testing for vibration, shock, and variable temperatures, guaranteeing reliability in demanding environments.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

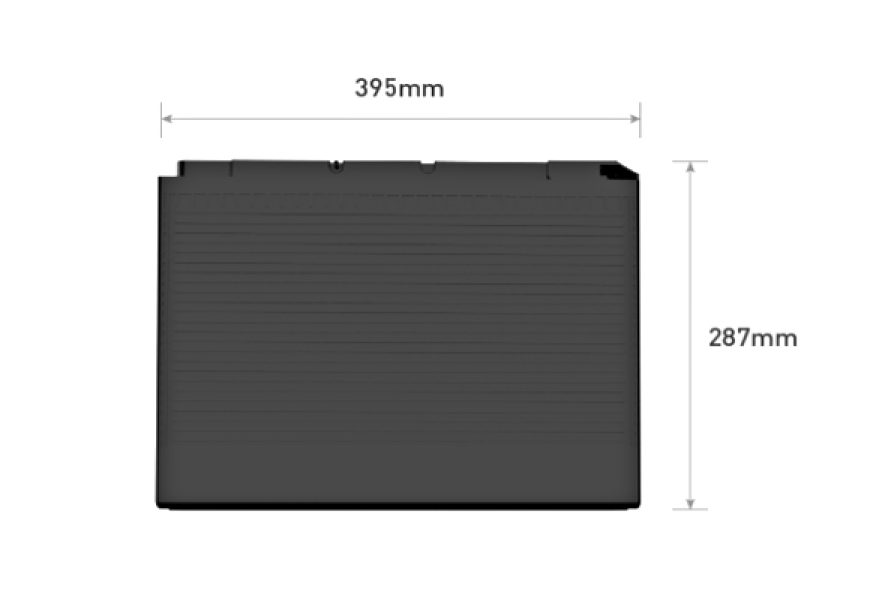

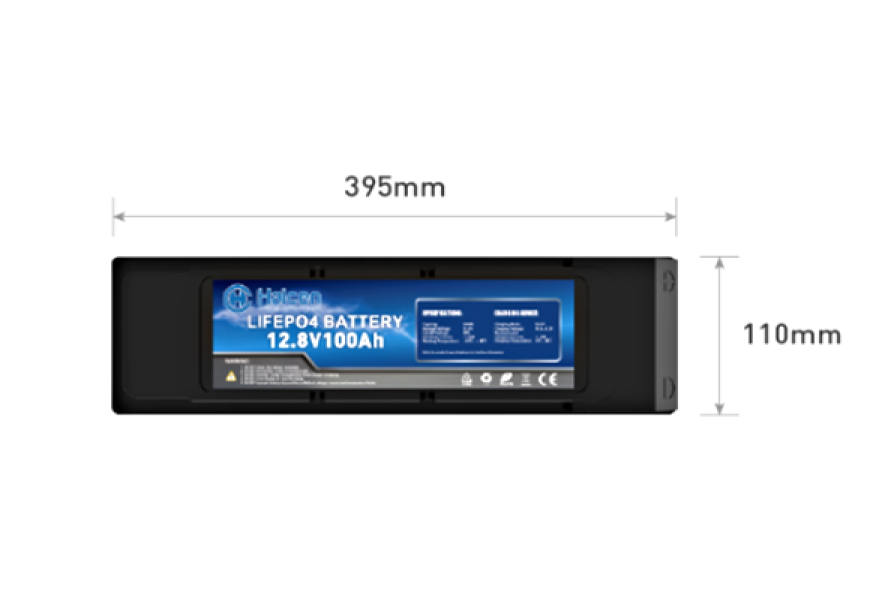

Dimensions:

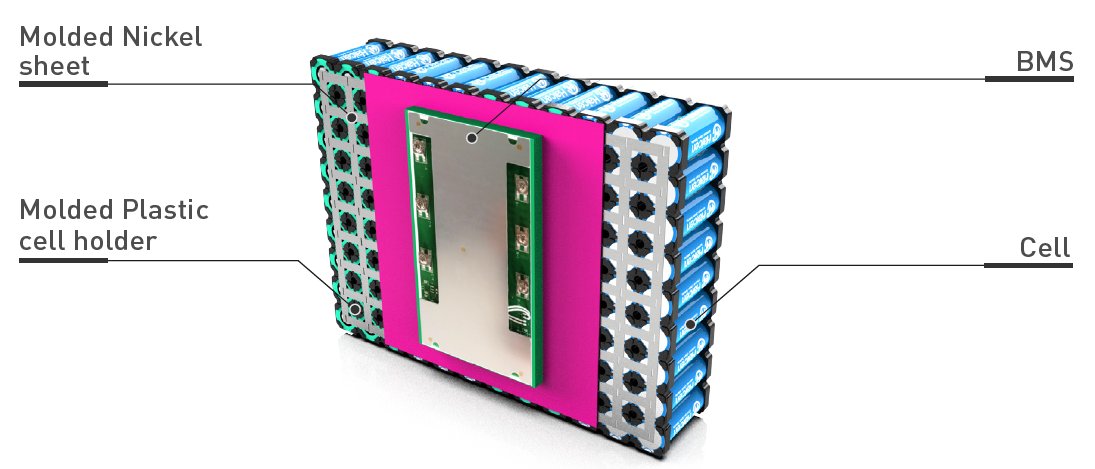

Internal Structure:
Characteristics Curve:
Ideal for: Handheld inventory scanners and POS systems, portable medical diagnostic devices, barcode readers, professional photography equipment, and advanced communication tools.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Ready to cut the cord? Explore our catalog of standard portable battery models or contact us to find the perfect power solution for your application.
| TECH & SPECS | Model | |||
| HC395-12100 | HC395-12135 | HC395-2465 | ||
| Electrical Specifications | Nominal Voltage | 12.8V | 12.8V | 24V |
| Nominal Capacity | 100Ah | 135Ah | 65Ah | |
| Parallel Connection | Max. 6units | Max. 6units | Max.6units | |
| Serial Connection | Max. 4units | Max. 4units | Max.2units | |
| BMS | 4S100A | 4S150A | 8S80A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |||
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |||
| Self Discharge | Less than 3% per month | |||
| Charge Efficiency | 100%@0.2C | |||
| Discharge Efficiency | 98-100%@1C | |||
| Charge Specifications | Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V |
| Standard Current | 20A | 27A | 13A | |
| Fast Current | 50A | 67A | 32A | |
| Discharge Specifications | Standard Current | 20A | 27A | 13A |
| Max. Con. Current | 100A | 135A | 65A | |
| Peak Current | 500A(300ms) | 600A(300ms) | 400A(300ms) | |
| Cut-off Voltage | 10V | 10V | 20V | |
| Mechanical Specifications | Dimensions (mm) | 95x110x287mm | ||
| Approx Weight(KG] | 11.5 | 13 | 12.5 | |
| Terminal Type | M8 | |||
| Case Color/material | Black Plastic case(ABS) | |||
| IP Rating | IP65 | |||
| Cell Type | Cylinder LiFePO4 cell | |||
| Cell holder | Yes | |||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) | ||
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | |||
