The Frontier of Portable Power Density
When your innovation is limited by the size and weight of its power source, compromise is not an option. Haicen's high-energy-density slim batteries represent the cutting edge of Li-ion technology, delivering unprecedented runtime and power from an incredibly minimal footprint, enabling the next generation of portable technology.
Product advantages:
The Pinnacle of Power-to-Size Ratio:
Utilizing the latest advancements in cell chemistry and pack engineering, we maximize watt-hours per liter (Wh/L) and watt-hours per kilogram (Wh/kg), giving your product a critical competitive advantage.
Advanced Chemistry for Peak Performance:
Our batteries are built with top-tier NMC or LiFePO4 cells, optimized for low internal resistance and high discharge rates to support power-hungry applications without bulking up.
Thermal Management Excellence:
High density demands superior thermal management. Our designs incorporate advanced materials and engineering to maintain safe temperatures and ensure stability under high load, protecting your premium product.
Enabling Next-Generation Technology:
We provide the power that makes ambitious designs possible, from flight time for heavy-lift drones to immersive experiences in untethered VR.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

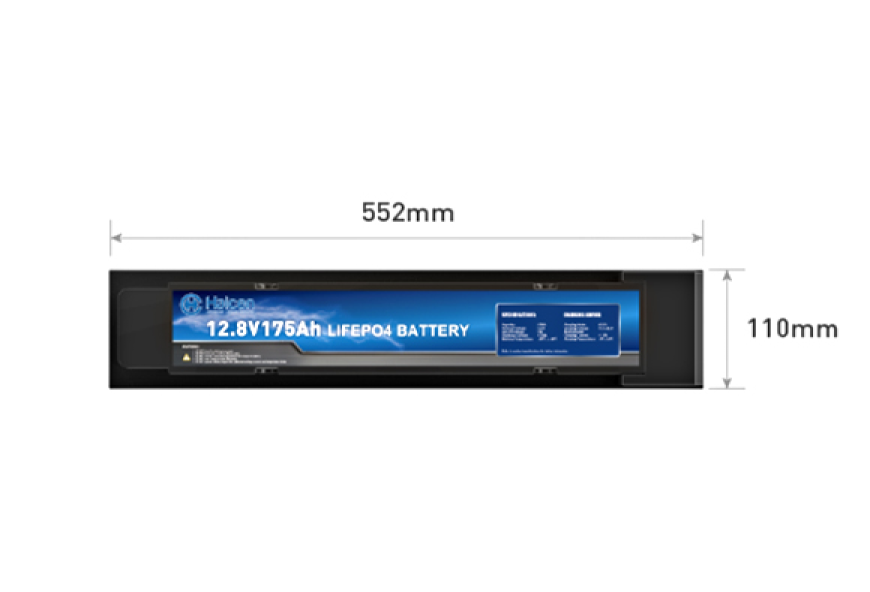

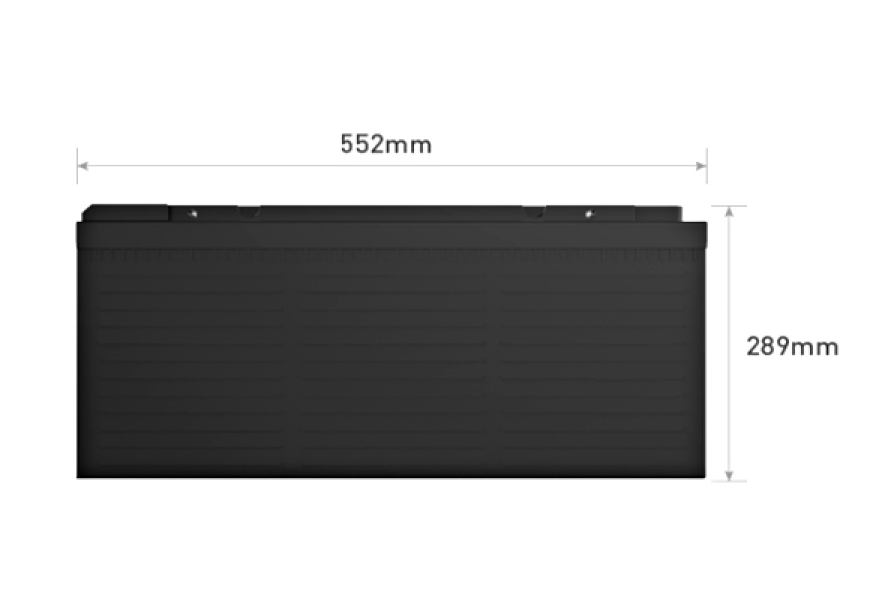

Dimensions:
Internal Structure:
Characteristics Curve:
Powering the future of: High-performance drones (UAVs), advanced augmented and virtual reality (AR/VR) headsets, wearable medical devices, military and field equipment, and sophisticated robotic systems.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Demand more from your power source. Download our whitepaper on high-density battery technology or speak directly with our engineering team about your project's challenges.
| TECH & SPECS | Model | ||||
| HC552-12175 | HC552-12200 | HC552-2480 | HC552-24100 | ||
| Electrical Specifications | Nominal Voltage | 12.8V | 12.8V | 24V | 24V |
| Nominal Capacity | 175Ah | 200Ah | 80Ah | 100Ah | |
| Parallel Connection | Max. 6units | Max. 6units | Max. 6units | Max. 6units | |
| Serial Connection | Max. 4units | Max. 4units | Max. 2units | Max. 2units | |
| BMS | 4S150A | 4S150A | 8S80A | 8S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | ||||
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | ||||
| Self Discharge | Less than 3% per month | ||||
| Charge Efficiency | 100%@0.2C | ||||
| Discharge Efficiency | 98-100%@1C | ||||
| Charge Specifications | Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 28.8±0.4V |
| Standard Current | 35A | 40A | 16A | 20A | |
| Fast Current | 87A | 100A | 40A | 50A | |
| Discharge Specifications | Standard Current | 35A | 40A | 16A | 20A |
| Max. Con. Current | 150A | 150A | 80A | 100A | |
| Peak Current | 600A(300ms) | 600A(300ms) | 400A(300ms) | 500A(300ms) | |
| Cut-off Voltage | 10V | 10V | 20V | 20V | |
| Mechanical Specifications | Dimensions (mm) | 552x110x289mm | |||
| Approx Weight(KG] | 18.5 | 20.5 | 18.5 | 19.5 | |
| Terminal Type | M8 | ||||
| Case Color/material | Black Plastic case(ABS) | ||||
| IP Rating | IP65 | ||||
| Cell Type | Cylinder LiFePO4 cell | ||||
| Cell holder | Yes | ||||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) | |||
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | ||||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | ||||

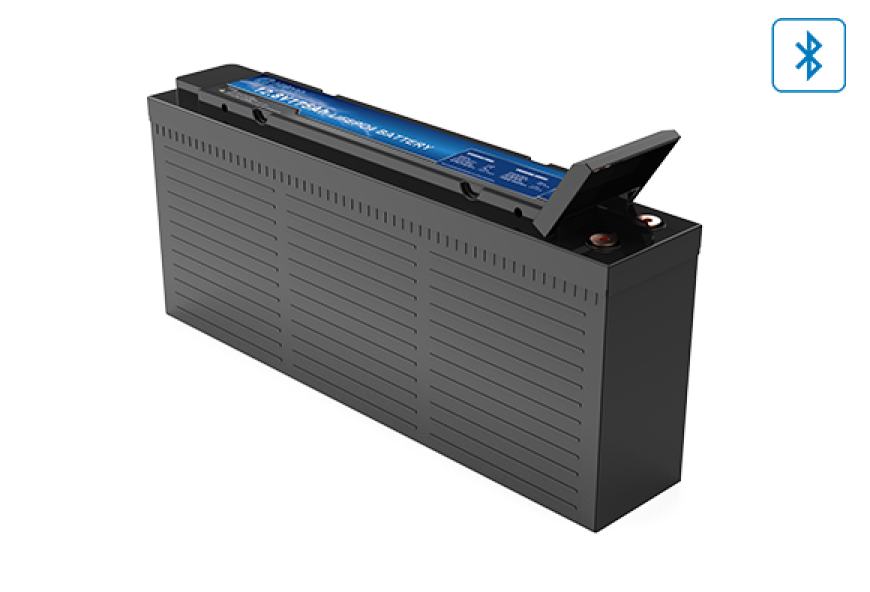

Our Slimline Smart LiFePO4 Battery combines an ultra-thin profile with advanced intelligent management systems. Unlike standard lithium batteries, it features integrated Bluetooth connectivity for real-time monitoring (voltage, temperature, state of charge), built-in Battery Management System (BMS) protection, and a compact design optimized for space-constrained applications like marine, RV, and portable energy systems. Its high energy density and lightweight structure ensure maximum power without compromising safety or performance.
The Bluetooth module enables wireless communication with smartphones or tablets via a dedicated app. Users can remotely monitor battery status (e.g., cycle count, health metrics), receive alerts for abnormal conditions (overvoltage, overheating), and adjust settings in real time. This proactive management extends battery lifespan and prevents operational failures.
Its thin form factor and smart features make it perfect for:
Marine: Trolling motors, onboard electronics.
RV/Camping: Powering lighting, appliances, and off-grid systems.
Solar Storage: Integration with residential/commercial solar setups.
Portable Power: Medical devices, mobile workshops, and emergency backups.
