Engineered for Demanding Duty
When downtime is not an option, you need power engineered for relentless performance. Haicen's industrial-grade LiFePO4 prismatic batteries are built from the ground up to deliver unwavering reliability in the most critical and harsh environments, from telecom huts to factory floors.
Product advantages:
Unmatched Cycle Life for Lower TCO:
With a lifespan exceeding 6,000 cycles, our industrial cells drastically reduce replacement frequency and downtime, offering a superior return on investment.
Built to Endure Extreme Conditions:
Engineered to operate flawlessly across a wide temperature range and built to resist vibration and shock, ensuring continuity in mission-critical industrial settings.
High-Rate Discharge Capability:
Deliver high burst currents when needed to power heavy-duty equipment and machinery without compromising voltage stability or cell integrity.
Designed for Scalability and Integration:
Our prismatic format is ideal for building large-scale battery banks for massive ESS projects, with robust construction for series and parallel configurations.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1973 (Cell) | CE (Pack) | UL9540 (Cell) |
| UN38.3 (Cell / Pack) | IEC62133 (Cell) | ROHS (Cell) |
| IEC62919 (Cell) |

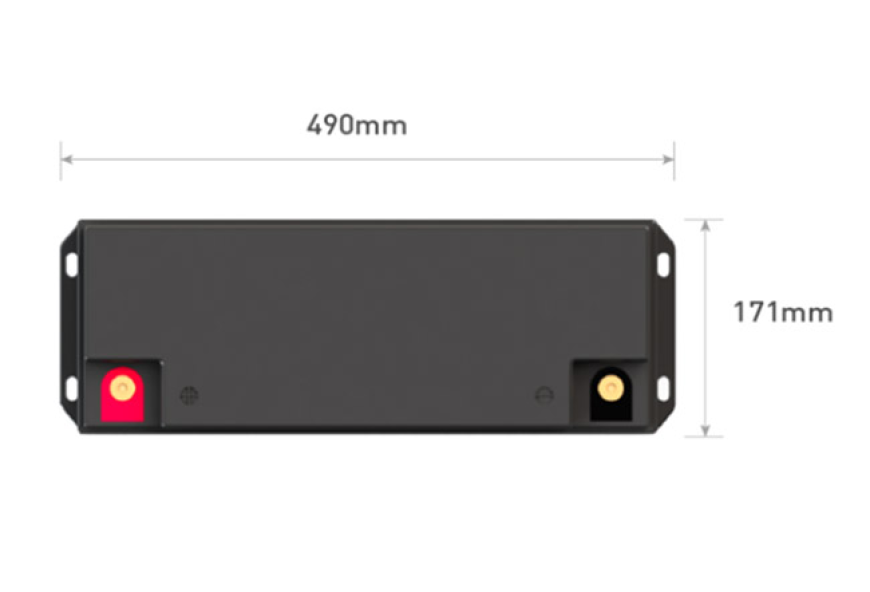

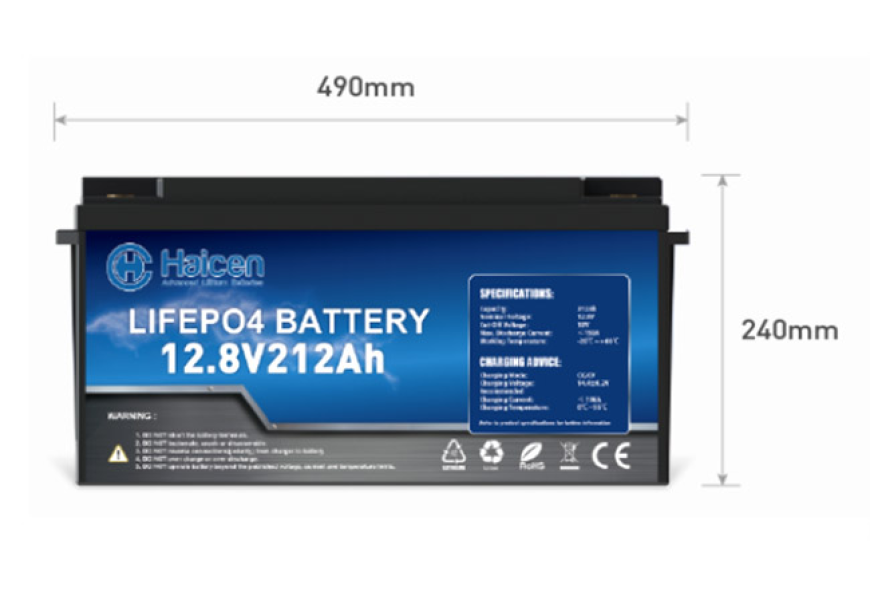

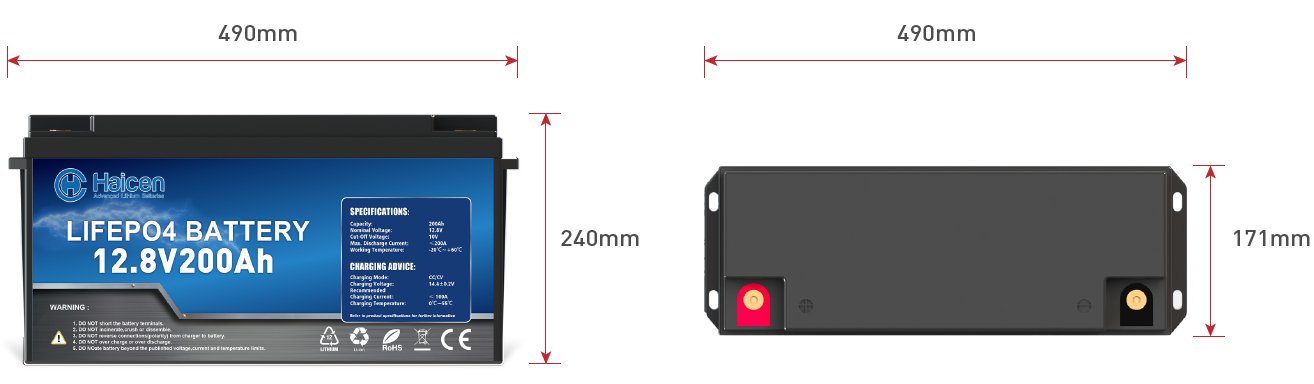

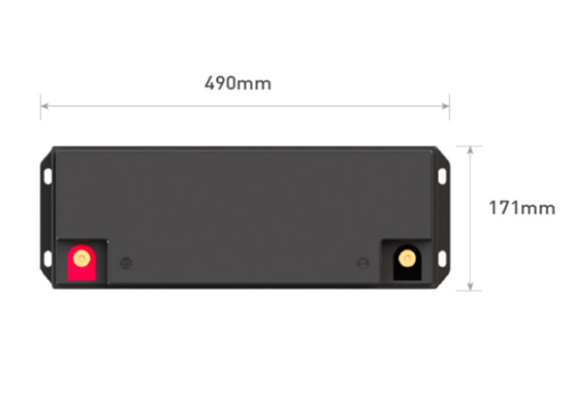

Dimensions:

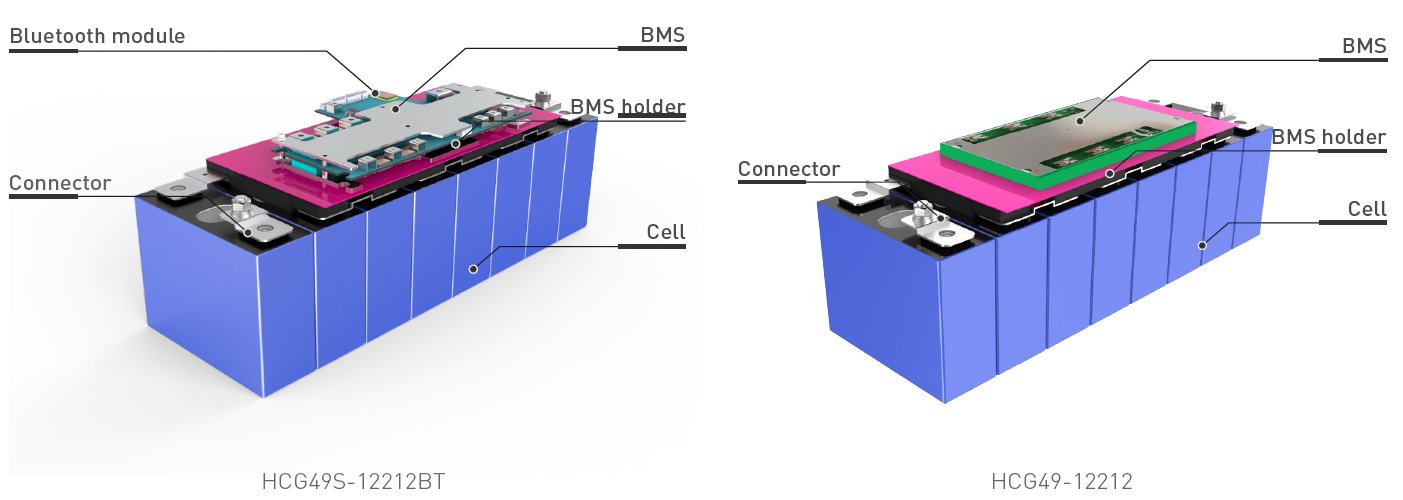

Internal Structure:

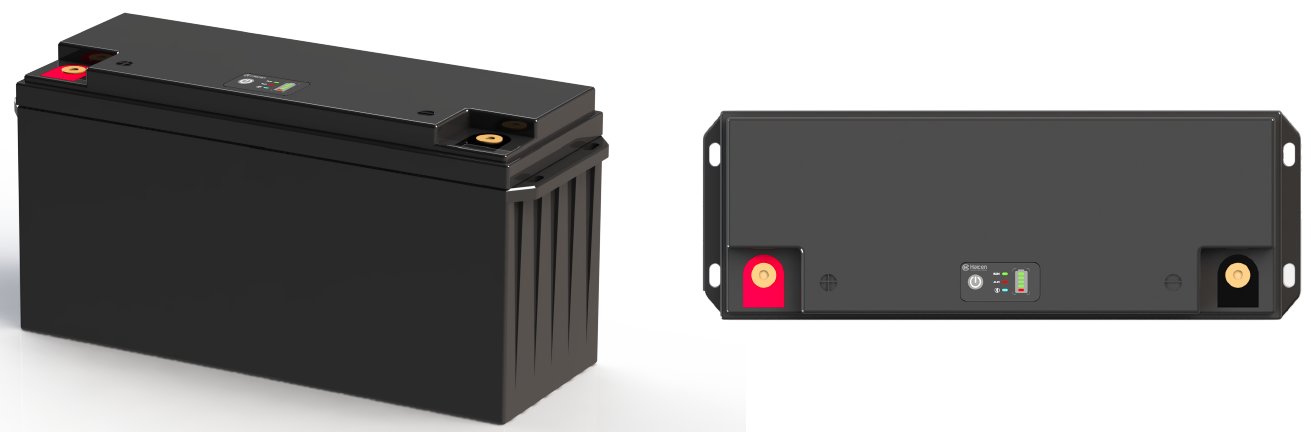

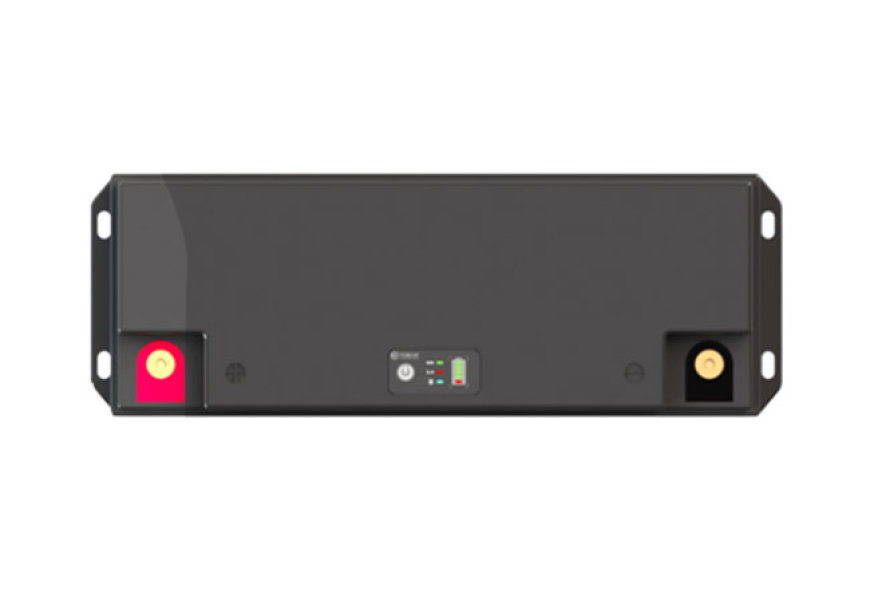

SOC Display (optional):
Characteristics Curve:
Trusted in Critical Infrastructure: Providing backup power for 5G/telecom base stations, serving as the core for grid-scale and commercial energy storage systems (ESS), powering heavy-duty industrial equipment like forklifts and AGVs, and ensuring uptime for data center backup systems.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Specify Power That Won't Let You Down. Download our industrial battery whitepaper or speak to an engineer about your specific environmental and performance requirements.
| TECH & SPECS | Model | ||||
| HCG49-12212 | HCG49S-12212BT | HCG49-24106 | HCG49S-24106BT | ||
| Electrical Specifications | Nominal Voltage | 12.8V | 12.8V | 24V | 24V |
| Nominal Capacity | 212Ah | 212Ah | 106Ah | 106Ah | |
| Parallel Connection | Max. 4units | Max. 4units | Max. 4units | Max. 4units | |
| Serial Connection | Max. 4units | Max. 4units | Max. 2units | Max. 2units | |
| BMS | 4S150A | 4S150A | 8S100A | 8S100A | |
| Bluetooth | No | Android/IOS | No | Android/IOS | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | ||||
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | ||||
| Self Discharge | Less than 3% per month | ||||
| Charge Efficiency | 100%@0.2C | ||||
| Discharge Efficiency | 98-100%@1C | ||||
| Charge Specifications | Charge Voltage | 14.4±0.2V | 14.4±0.2V | 28.8±0.4V | 28.8±0.4V |
| Standard Current | 42A | 42A | 21A | 21A | |
| Fast Current | 106A | 106A | 53A | 53A | |
| Discharge Specifications | Standard Current | 42A | 42A | 21A | 21A |
| Max. Con. Current | 150A | 150A | 100A | 100A | |
| Peak Current | 600A(300ms) | 800A(300ms) | 500A(300ms) | 700A(300ms) | |
| Cut-off Voltage | 10V | 10V | 20V | 20V | |
| Mechanical Specifications | Dimensions (mm) | 490x171x240mm | |||
| Approx Weight(KG) | 18.5 | 18.5 | 18.5 | 18.5 | |
| Terminal Type | M8 | ||||
| Case Color/material | Black Plastic case(ABS) | ||||
| IP Rating | IP65 | ||||
| Cell Type | 3.2V106Ah prismatic cell | ||||
| Cell holder | Yes | ||||
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉ to 131℉) | |||
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | ||||
| Storage Temp | -5℃ to 45℃ (23℉ to 113℉) | ||||
Yes. Our 12V prismatic LiFePO4 batteries are designed as drop-in replacements for lead-acid batteries (AGM/gel/flooded). They feature standardized terminal layouts (e.g., M8 threads), compatible voltage profiles (12.8V nominal), and built-in BMS to ensure seamless integration with automotive, solar, or marine systems without requiring additional components or modifications.
The Battery Management System (BMS) monitors voltage, current, and temperature in real time. It protects against overcharge, over-discharge, short circuits, and thermal extremes. Additionally, the prismatic cell design inherently resists swelling and leakage, while the robust casing provides mechanical protection and flame retardancy.
These batteries deliver 3,000–5,000 cycles while retaining ≥80% capacity, even with regular deep discharges (80–100% DoD). For context:
Daily use: 8–15 years of service life.
Partial cycling: Extends lifespan further due to reduced stress on cells.
