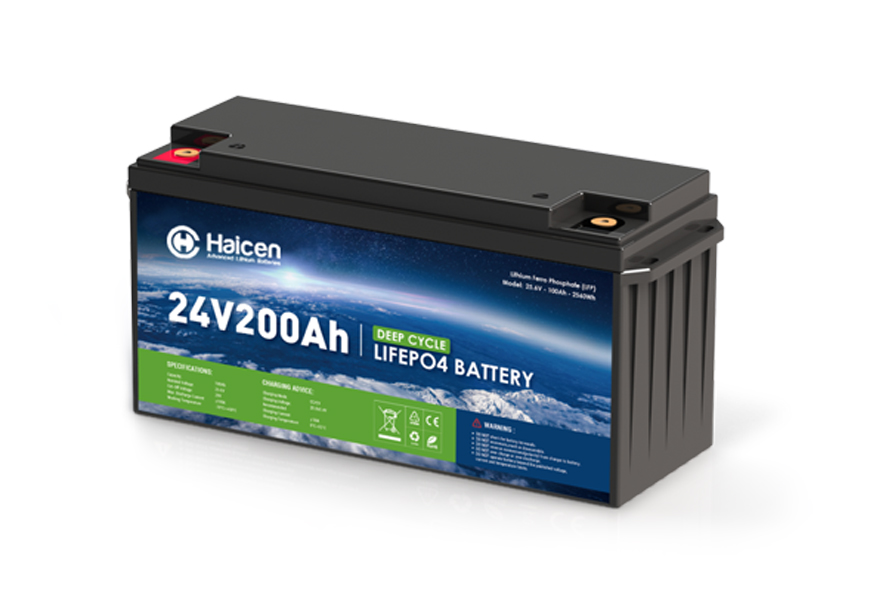

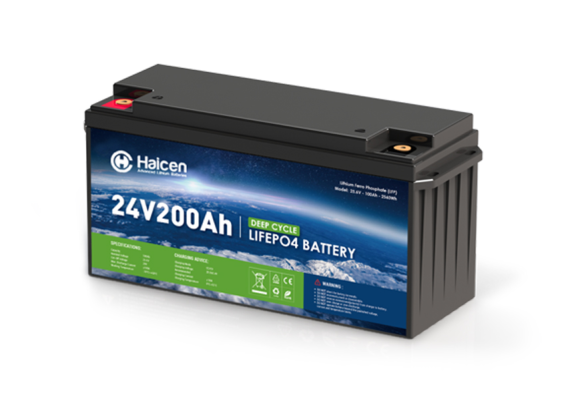

Unmatched Range for 24V Golf Carts and Utility Vehicles
Double your runtime without doubling your space. Our G4D 24V 200Ah battery pack is engineered to provide exceptional capacity for 24V vehicle systems. It is the ultimate drop-in upgrade for users who need extended operation between charges, delivering unprecedented range and endurance.
Key Features:
Exceptional Energy Density:
Packs a massive 200Ah of capacity into the standard G4D form factor, offering one of the highest energy densities available for 24V platforms.
All-Day Operation:
Provides enough power for multiple rounds of golf or long days of work on a single charge, effectively eliminating range anxiety for 24V carts and UTVs.
Sustained Power Output:
Maintains stable voltage under load, ensuring consistent speed and torque even as the battery discharges, thanks to the stable discharge curve of LiFePO4 chemistry.
Direct Fit Replacement:
Designed to seamlessly replace existing battery setups in 24V vehicles, utilizing standard mounting points and terminals.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Electrical Specifications:
Nominal Voltage25.6V
Nominal Capacity200Ah
Parallel ConnectionMax. 4units
Serial ConnectionMax. 2units
BMS8S100A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationBluetooth, Heating, Display, RS485 or CANBus
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage28.8±0.4V
Standard Current40A
Fast Current100A
Discharge Specifications:
Standard Current40A
Max. Con. Current200A
Peak Current600A(300ms)
Cut-off Voltage20V
Mechanical Specifications:
Dimensions (mm)521x238x218mm (G4D)
Approx Weight(KG)36
Terminal TypeM8
Case Color/materialBlack Plastic Case (ABS)
IP RatingIP65
Cell Type3.2V100Ah Prismatic Cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-5°C to 45°C （23°F to 113°F）
Characteristics Curve:

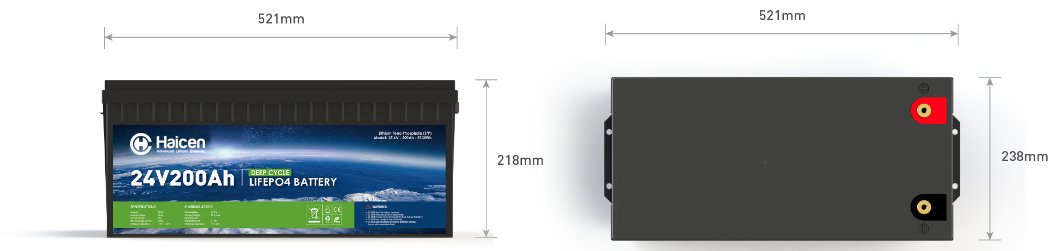

Group 24V200Ah Battery Dimensions:
Ideal For: 24V EZ-GO and Club Car golf carts, large 24V utility vehicles (UTVs), small industrial tow tractors, and other material handling equipment that requires extended runtime.
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Experience Uninterrupted Productivity. Check compatibility for your 24V vehicle and learn how our high-capacity pack can extend your operational time.
| TECH & SPECS | Model | |
| 24V200Ah Deep Cycle Lithium Battery | ||
| Electrical Specifications | Nominal Voltage | 25.6V |
| Nominal Capacity | 200Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | Max. 2units | |
| BMS | 8S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | Bluetooth, Heating, Display, RS485 or CANBus | |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 28.8±0.4V |
| Standard Current | 40A | |
| Fast Current | 100A | |
| Discharge Specifications | Standard Current | 40A |
| Max. Con. Current | 200A | |
| Peak Current | 600A(300ms) | |
| Cut-off Voltage | 20V | |
| Mechanical Specifications | Dimensions (mm) | 521x238x218mm (G4D) |
| Approx Weight(KG] | 36 | |
| Terminal Type | M8 | |
| Case Color/material | Black Plastic Case (ABS) | |
| IP Rating | IP65 | |
| Cell Type | 3.2V100Ah Prismatic Cell | |
| Temperature Specifications | Charge Temp | 0°C to 55°C （32°F to 131°F） |
| Discharge Temp | -20°C to 60°C （-4°F to 140°F） | |
| Storage Temp | -5°C to 45°C （23°F to 113°F） | |
A deep cycle battery is designed to provide sustained power over extended periods and can be discharged up to 80% of its capacity repeatedly without damage. Unlike automotive starter batteries (which deliver short, high-current bursts for engine ignition), deep cycle batteries prioritize deep discharges and recharges. They feature thicker plates and denser active material to withstand cycling stress, making them ideal for renewable energy, marine, RV, and industrial applications.
Recharge immediately after use to avoid prolonged states of partial or full discharge. Do not regularly discharge below 50% Depth of Discharge (DoD) for lead-acid types or 80% for LiFePO4 batteries. For optimal longevity, recharge when the battery reaches 50% capacity (lead-acid) or 20% (LiFePO4). Avoid storing the battery in a discharged state, as sulfation (lead-acid) or cell degradation (lithium) can occur.
Yes, they are commonly used in off-grid and hybrid solar systems due to their ability to handle daily charge/discharge cycles. LiFePO4 batteries are increasingly preferred for solar applications thanks to their higher DoD tolerance, faster charging, longer lifespan, and minimal maintenance compared to traditional lead-acid batteries. Ensure compatibility with solar charge controllers and system voltage requirements.
