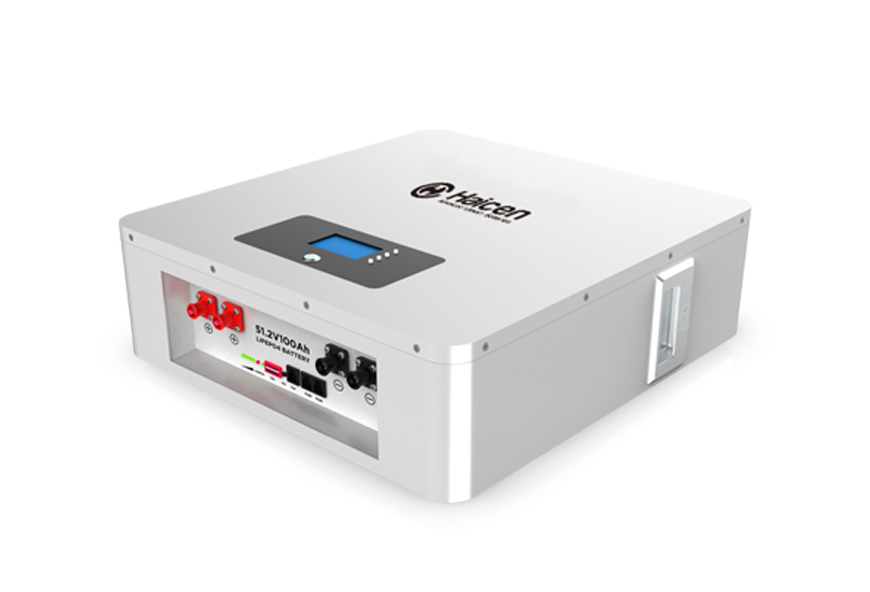

Wall-Mounted Solid-State Energy Storage Battery

Benefits of 48V100Ah Wall Mounted Solid State Battery:

Unrivaled Safety for Your Home:

The solid-state LiFePO4 chemistry is inherently non-flammable, eliminating any risk of thermal runaway or fire. Feel confident mounting it on your garage, basement, or even living room wall.

Space-Saving Vertical Design:

Its slim, wall-mounted form factor frees up valuable floor space, making it the perfect choice for homes, apartments, small offices, and shops where every square foot counts.

Effortless Installation and Integration:

Designed for a clean and simple installation process. It easily integrates with most popular solar inverters and energy management systems, getting your system online faster.

Silent and Maintenance-Free Operation:

Provides clean, silent power without any moving parts, fumes, or required maintenance. Once it's on the wall, you can simply enjoy the energy security.

Solid-state lithium battery: the next generation of lithium battery technology

●    Solid-state lithium battery combines high safety and high energy density battery technology.

●    The fundamental feature is the replacement of a liquid electrolyte with a solid electrolyte.

●    The crucial technology is the innovative development of materials.

●    Fully replace all solid state batteries; partially replace solid state batteries.

●    Most traditional lithium battery applications can be replaced by safer solid-state lithium batteries;

●    Due to safety factors, some areas that cannot use traditional lithium batteries are also potential markets for solid-state lithium batteries;

●    High safety, high energy density solid-state lithium batteries will greatly promote the trend of electrification in more fields.

SOLID-STATE LITHIUM BATTERY TECHNOLOGY

High Safety

Solid-state electrolyte material

●  In 2007, LLZO conductivity 310-4S / cm, lithium metal stability.

●  In 2015, Ta-LLZO, with a conductivity of 1.6 mS / cm.

●  In 2017, Ga-LLZO, a conductivity of 1.46 mS / cm.

Solid-state electrolyte material

●  Safety and cycle stability is further improved by electrolyte coating

Safety performance comparison

High Energy Density

Ceramic and lithium supplement material technology

●  High environmental stability of ceramic lithium supplement material.

●  Break the bottleneck of lithium supplement technology for high-gram capacity materials.

●  High specific energy materials such as lithium metal can be used

●  Lift the voltage through the core material

●  Further increase the energy density

Low Cost

Surface modification technology of lithium metal

●  Multilayer composite film can be mass-produced.

●  Realize ion blending, dendrite protection, surface passivation function.

●  Material cost did not increase significantly

●  High ratio can reduce unit costs

●  Simplify thermal management and reduce PACK costs

SOLID TECHNOLOGY PRODUCT ROADMAP

●    Improved Performance From Material Innovation.

●    Reduce Battery Cost By Production Upgrade.

●    Mass-production Through Facilities Modification.

Electrical Specifications:

Nominal Voltage51.2V

Nominal Capacity100Ah

Parallel ConnectionMax. 16units

Serial ConnectionNo

BMS16S100A

ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance

Communication2×RS485 and 1×CAN; LCD

Cycle Life5000times Cycles @100%DOD and 10000times @80% DOD

Self DischargeLess than 3% per month

Charge Efficiency100% @0.2C

Discharge Efficiency98-100% @1C

Charge Specifications:

Charge Voltage57.6±0.8V

Standard Current20A

Fast Current50A

Discharge Specifications:

Standard Current20A

Max. Con. Current100A

Peak Current250A (30ms)

Cut-off Voltage40V

Mechanical Specifications:

Dimensions (mm)482×500×178mm

Approx Weight(KG)45

Terminal TypeES08 Energy Storage Quick Insert

Case Color/materialWhite Metal case

IP RatingIP54

Cell Type3.2V 50Ah solid state cell

Temperature Specifications:

Charge Temp0°C to 55°C （32°F to 131°F）

Discharge Temp-20°C to 60°C （-4°F to 140°F）

Storage Temp-20°C to 45°C （-4°F to 113°F）

Key Points for Quality control:

Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.

Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.

100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.

Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.

Product advantages:

   Higher Safety：no fire and no smoke even if penetrated by nails.

   Longer Cycle life: over 5000times at 100% DOD and over 10000times at 80% DOD

   Better performance at low temperature: over 97% capacity discharged at -20°C.

   Lower temperature rising when working, less than 7°C rising at 0.5C.

   Max. 16pcs in Parallel to get Max. 86kwh system.

   Compatible with most Brands inverters.

   Maintenance Free.

   Modular, Scalable & Proven Performance.

Characteristics Curve:

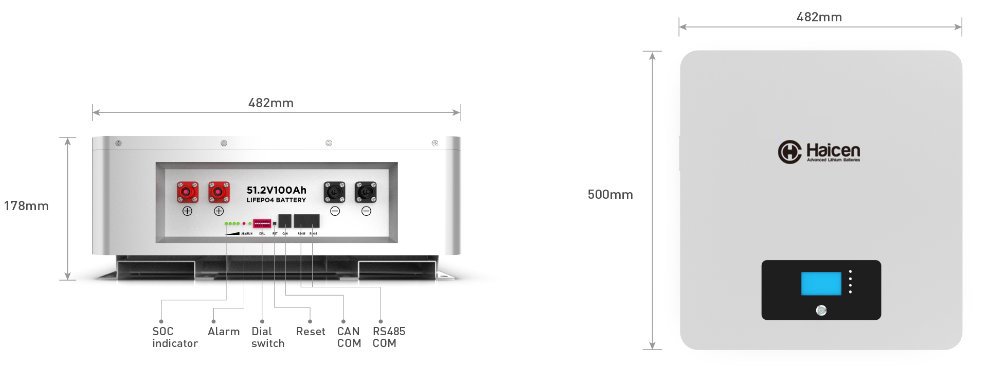

Dimensions:

Ideal For: Residential homeowners with solar panels, small business owners seeking energy independence, backup power for home offices and critical home appliances, and as a scalable storage solution for off-grid cabins and tiny homes

Customized items:

Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.

Label design: We can help you to design customized label on the battery.

Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.

Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.

NDA agreement: NDA agreement is allowed and necessary to protect your benefits.

Design Your Safe and Sleek Energy System. Contact our energy storage specialists to plan your installation.
