Go Farther, Last Longer
Designed for golfers who demand more from every charge. This battery delivers significantly extended runtime and enhanced durability for its price, handling frequent deep cycles with ease. The perfect balance of performance, longevity, and value.
Product advantages:
Extended Runtime:
Engineered for 20% more range per charge compared to standard models, letting you play more holes.
Enhanced Durability:
Built with quality cells for 3,500+ deep cycles, designed for more frequent use.
Consistent Power Delivery:
Maintains stable voltage output, even on hilly terrain, preventing power drop-off.
Optimized for Deep Cycling:
Thrives on regular discharging and recharging, making it ideal for daily use.
Great Value:
Offers superior runtime and life expectancy without the premium cost of smart features.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Electrical Specifications:
Nominal Voltage48V
Nominal Capacity150Ah
Parallel ConnectionMax. 4units
Serial ConnectionNo
BMS16S150A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationRS485, CAN, LCD , Active balancing module
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage57.6±0.8V
Standard Current30A
Fast Current75A
Discharge Specifications:
Standard Current30A
Max. Con. Current150A
Peak Current400A (300ms)
Cut-off Voltage40V
Mechanical Specifications:
Dimensions (mm)620×320×233mm
Approx Weight(KG)62
Terminal TypeM8
Case Color/materialBlack Metal case
IP RatingIP65
Cell TypeCylinder LiFePO4 cell
Temperature Specifications:
Charge Temp0°C to 55°C （32°F to 131°F）
Discharge Temp-20°C to 60°C （-4°F to 140°F）
Storage Temp-20°C to 45°C （-4°F to 113°F）
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |

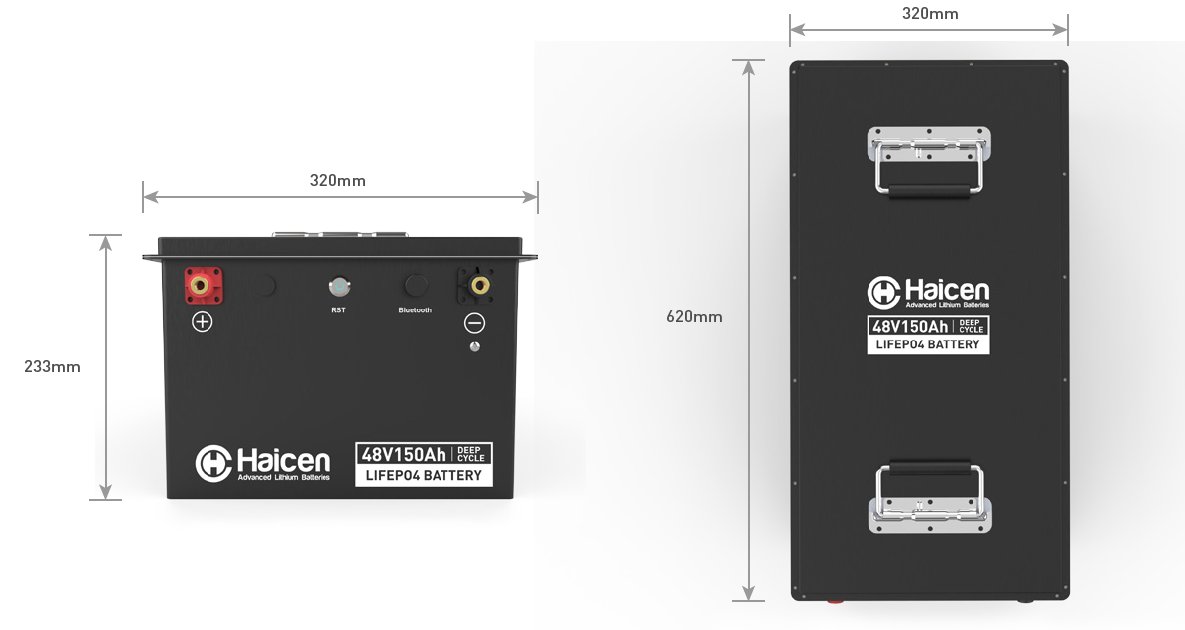

Dimensions:
Characteristics Curve:
Market Applications:
● Avid Golfers Who Play Frequently
● Golf Courses with Hilly Terrain
● Large Residential Communities
● Users Seeking the Best "Bang for Buck" on Performance
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Ready to Upgrade Your Power?
[➔ Download the Full Specification Sheet (PDF)]
[⮟ Contact Our Experts for a Quote]
| TECH & SPECS | Model | |
| HC Golf-36105 | ||
| Electrical Specifications | Nominal Voltage | 38.4V |
| Nominal Capacity | 105Ah | |
| Parallel Connection | Max. 4units | |
| Serial Connection | No | |
| BMS | 12S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Optional Function | Rs485 ,CAN; LCD; Active balancing module | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 43.2±0.6V |
| Standard Current | 21A | |
| Fast Current | 52.5A | |
| Discharge Specifications | Standard Current | 21A |
| Max. Con. Current | 100A | |
| Peak Current | 700A(300ms) | |
| Cut-off Voltage | 30V | |
| Mechanical Specifications | Dimensions (mm) | 320x310x262mm |
| Approx Weight(KG] | 32 | |
| Terminal Type | M8 | |
| Case Color/material | Black Metal case | |
| IP Rating | IP65 | |
| Cell Type | 3.2V105Ah Prismatic Cell | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -20℃ to 45℃ (-4℉ to 113℉) | |
