Your Technical Partner for Next-Generation AWP Power
We are a trusted OEM partner for leading aerial work platform manufacturers. We specialize in co-designing and producing high-performance, custom LiFePO4 battery systems that integrate seamlessly into your new equipment. From cell selection to BMS communication protocols, we deliver tailored power solutions that enhance your product's value, performance, and reliability.
Key Features:
Full Customization:
Tailored solutions for voltage, capacity, dimensions, connectors, and mounting points.
Advanced BMS Integration:
Supports CAN Bus, J1939, or other protocols for seamless communication with the host machine's control system.
Engineered for Durability:
Designed to withstand the vibrations, shocks, and environmental conditions of construction sites.
Grade-A LiFePO4 Cells:
We use top-tier prismatic cells for unmatched energy density, cycle life, and safety.
Dedicated Engineering Support:
Collaborative approach from design to production and after-sales.
Electrical Specifications:
Nominal Voltage/Discharge Voltage Range51.2V(30~43.2Ah)
Nominal Capacity105Ah
Stored Energy
5.37 KWh
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Continuous Charge30A
Discharge Specifications:
Continuous Discharge150A
Maximum Discharge250A (30s)
Mechanical Specifications:
Dimensions (L*W*H)20.6×14.2×10.3 inch (524×360×261 mm)
Approx Weight(KG)101 lbs. (46 kg)
Casing materialSteel
IP RatingIP65
Temperature Specifications:
Charge Temp-4°F~131°F(-20°C ~ 55°C)
Discharge Temp-4°F~131°F(-20°C ~ 55°C)
Storage Temp(one month)-4°F~113°F (-20°C~45°C)
Storage Temp(one year)32°F~95°F ( 0°C ~ 35°C)
Benefits
● 5-year manufacturer warranty.
● Charges 2-3times faster the lead acid ones.
● Last 3times longer for the advanced lithium batteries.
● Twice the power with better performance.
● Save up to 75% expenditures in 5 years.
● The batteries perform well down to -4°F.
● Lower CO2 emissions no fumes, and no acid spill.
● No frequent battery replacements.
An advanced battery built for lifting performance:
● They are zero maintenance, so you don’t need to handle any hard work like the lead-acid makes you do.
● Our batteries have much longer life than the lead-acid one, almost over 3 times, providing you exceptional lifetime value.
● They can recharge in -20°C temperature and work well for the heating design inside.
● Engineered with Lithium Iron Phosphate (LiFePO4) technology this battery has twice the power.
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642(Cell) | IEC62619 (Cell) | UN38.3(Cell/ Pack) |
| IEC62133(Cell) | ROHS(Cell) | CE(Pack) |
Support multiple protection, including battery reverse polarity protection, output short circuit protection, output over/under voltage protection, over-temperature protection, and input over/under voltage protection, for ultimate charging safety.
Key Benefits:
Higher qualified cylindrical cell:
UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000times and excellent consistency.
Bluetooth:
enable to monitor the battery status(charge, discharge, current, temperature, cycle life and so on) and change the data for different applications.
Heating function system:
Uniform internal heating is an important feature of our cold-weather performance batteries, as many external heating blanket options currently available cannot sense the internal temperature of the cells and may not be completely effective at heating the battery throughout. The system features proprietary technology that draws power from the charger itself, requiring no additional components. The entire process of heating and charging is completely seamless. Simply plug the battery into the regular lithium charger and the internal heating and monitoring system takes care of the rest.
More stable and firm internal structure:
Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.
Smaller size and less weight:
The size of our battery is just 3/4 size of the standard 12V 100Ah battery from other suppliers.
Market Applications:
● Integration into New Scissor Lift and Boom Lift Designs
● Powering Electric Telehandlers and Access Platforms
● Custom Solutions for Specialized Material Handling Equipment
● OEM/ODM Projects
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Ready to Upgrade Your Power?
[➔ Download the Full Specification Sheet (PDF)]
[⮟ Contact Our Experts for a Quote]
| TECH & SPECS | Model | |

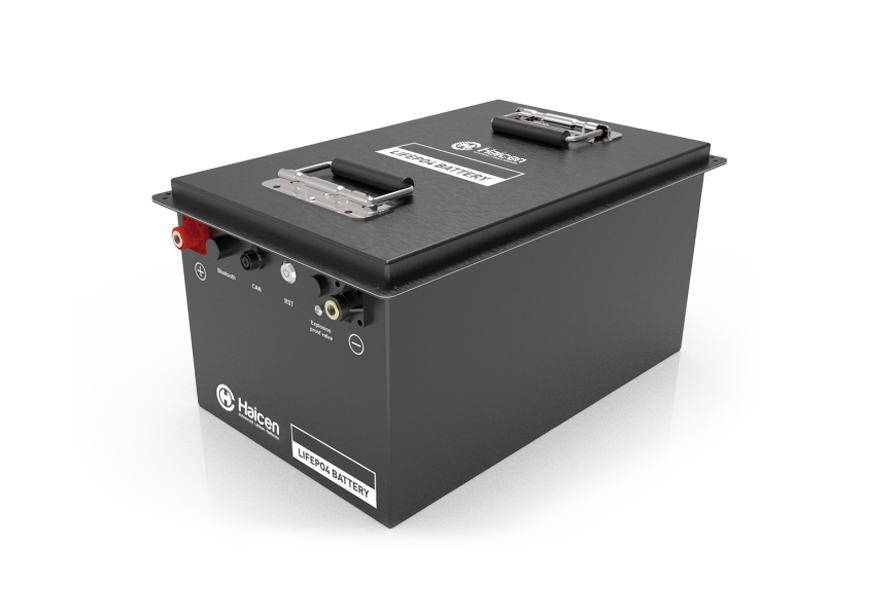

48V 105Ah Aerial Work Platform Battery | ||
| Electrical Specifications | Nominal Voltage Nominal Capacity | 51.2V(30~43.2 V) 105Ah |
| Stored Energy | 5.37 kWh | |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | |
| Charge Specifications | Continuous Charge | 30A |
| Discharge Specifications | Continuous Discharge | 150A |
Maximum Discharge | 250A(30s) | |
| Mechanical Specifications | Dimensions (LxDxH) | 20.6×14.2×10.3 inch (524×360×261 mm) |
Weight lbs.(kg) With Counterweight | 101 lbs. (46 kg) | |
| Case Color/material | Steel | |
| IP Rating | IP65 | |
| Temperature Specifications | Charge Temp | -4°F~131°F(-20°C ~ 55°C) |
| Discharge Temp | -4°F~131°F(-20°C ~ 55°C) | |
| Storage Temp(1 month) | -4°F~113°F (-20°C~45°C) | |
| Storage Temp(1 year) | 32°F~95°F ( 0°C ~ 35°C) | |
