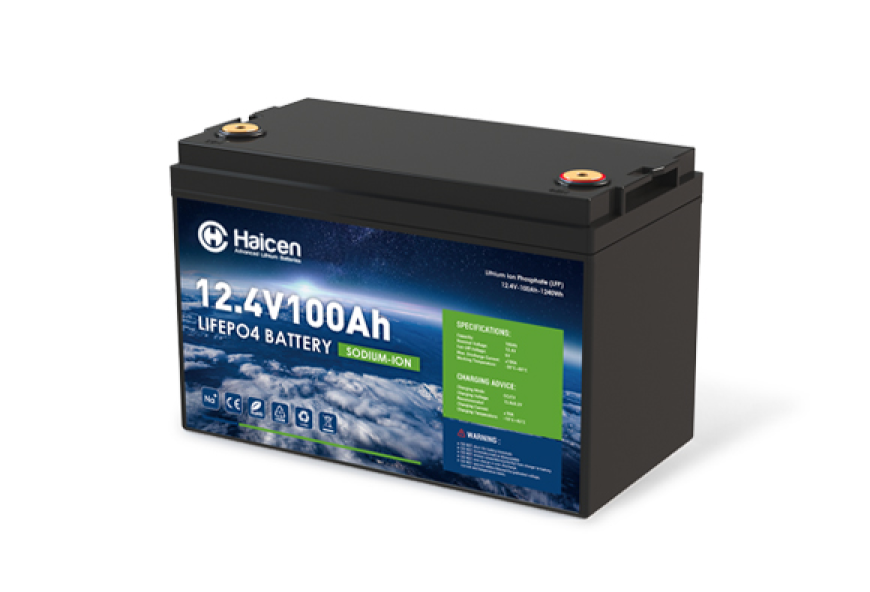

Plug-and-Play Power for Rapid Integration
Simplify your product development with our pre-assembled sodium-ion battery modules. Each module integrates high-quality sodium-ion rechargeable cells with a sophisticated Battery Management System (BMS), providing a reliable and instantly deployable power solution. This plug-and-play approach reduces your R&D time and costs, accelerating your time to market for a wide range of applications.
Key Features:
Fully Integrated System:
Comes with built-in BMS for protection against overcharge, over-discharge, and short circuits.
Robust Design:
High-strength casing and professional assembly ensure reliability in demanding environments.
Easy Scalability:
Modules can be connected in series or parallel to achieve desired voltage and capacity.
Maintenance-Free Operation:
Sealed design requires no user maintenance throughout its long service life.
Wide Operating Temperature Range:
Performs consistently in both high and low ambient temperatures.
Electrical Specifications:
Nominal Voltage12.4V
Nominal Capacity100Ah
Parallel ConnectionMax. 6units
Serial ConnectionMax. 4units
BMS4S150A
ProtectionOver charge, Over discharge, Over current, Over temp, Short, Balance
CommunicationBluetooth, Heating, Display, RS485 or CANBus
Cycle Life3000times Cycles @100%DOD and 6000times @80% DOD
Self DischargeLess than 3% per month
Charge Efficiency100% @0.2C
Discharge Efficiency98-100% @1C
Charge Specifications:
Charge Voltage15.8±0.2V
Standard Current20A
Fast Current50A
Discharge Specifications:
Standard Current20A
Max. Con. Current100A
Peak Current400A (300ms)
Cut-off Voltage6V
Mechanical Specifications:
Dimensions (mm)330×173×216mm (Group 31)
Approx Weight(KG)11.2
Terminal TypeM8
Case Color/materialBlack Plastic Case (ABS)
IP RatingIP65
Cell TypeSodium-ion Rechargeable cell
Temperature Specifications:
Charge Temp-10°C to 45°C （14°F to 113°F）
Discharge Temp-30°C to 60°C （-22°F to 140°F）
Storage Temp-20°C to 45°C （-4°F to 113°F）
Product advantages:
● Better performance at low temperature:
Better low-temperature charging and storage performance, greatly reducing safety hazards.
● More stable and firm internal structure:
Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.
● Stronger BMS:
Can support the batteries in parallel and series connection.
● Smaller size and less weight:
The size of our battery is just 3/4 size of the standard 12V 200Ah battery from other suppliers.
Characteristics Curve:

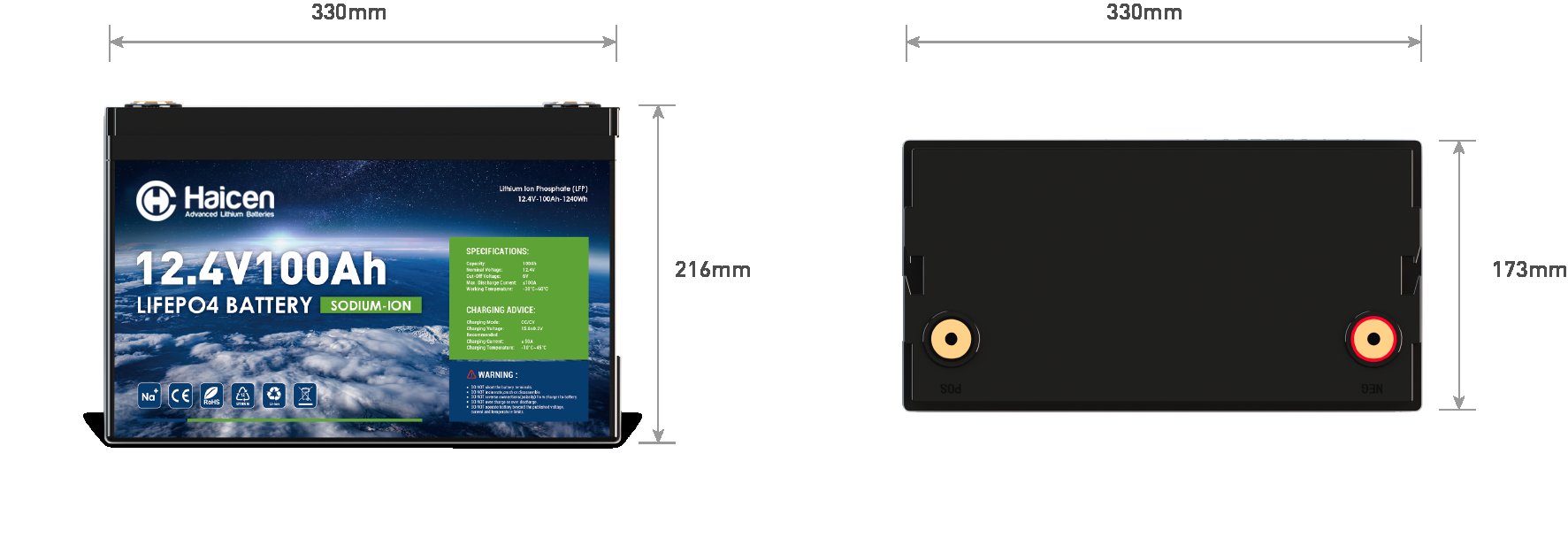

Dimensions:
Market Applications:
● Commercial & Residential Energy Storage Systems (ESS)
● Electric Scooters, E-Bikes, and Golf Carts
● UPS Backup Power Units
● Industrial Equipment and Machinery
Customized items:
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Ready to Upgrade Your Power?
[➔ Download the Full Specification Sheet (PDF)]
[⮟ Contact Our Experts for a Quote]
| TECH & SPECS | Model | |
| 12V100Ah Sodium-ion Battery | ||
| Electrical Specifications | Nominal Voltage | 12.4V |
| Nominal Capacity | 100Ah | |
| Parallel Connection | Max. 6units | |
| Serial Connection | Max. 4units | |
| BMS | 4S150A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | Bluetooth, Heating, Display, RS485 or CANBus | |
| Cycle Life | 3000times Cycles @100%DOD and 6000times @80% DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 15.8±0.2V |
| Standard Current | 20A | |
| Fast Current | 50A | |
| Discharge Specifications | Standard Current | 20A |
| Max. Con. Current | 100A | |
| Peak Current | 400A(300ms) | |
| Cut-off Voltage | 6V | |
| Mechanical Specifications | Dimensions (mm) | 330×173×216mm (Group 31) |
| Approx Weight(KG] | 11.2 | |
| Terminal Type | M8 | |
| Case Color/material | Black Plastic Case (ABS) | |
| IP Rating | IP65 | |
| Cell Type | Sodium-ion Rechargeable Cell | |
| Temperature Specifications | Charge Temp | -10°C to 45°C （14°F to 113°F） |
| Discharge Temp | -30°C to 60°C （-22°F to 140°F） | |
| Storage Temp | -20°C to 45°C （-4°F to 113°F） | |
Current sodium-ion batteries achieve 120–160 Wh/kg, slightly below LiFePO4 (140–180 Wh/kg) but sufficient for applications where cost, safety, and temperature resilience outweigh peak energy density needs. Ongoing R&D aims to close this gap within 2–3 years.
Ideal use cases include:
Stationary energy storage (ESS) for solar/wind farms.
Low-speed electric vehicles (e-bikes, scooters, logistics vehicles).
Backup power systems for telecoms and data centers.
Cold-climate applications due to excellent low-temperature performance.
Commercial sodium-ion batteries deliver 3,000–5,000 cycles at 80% Depth of Discharge (DoD), comparable to mid-tier LiFePO4. Degradation is gradual, with capacity retention >80% after 3,000 cycles.
