The Reliable Core Building Block for Your Next-Generation Battery Packs
As a leading prismatic LiFePO4 cell manufacturer, Haicen provides the core building blocks for the next generation of Energy Storage Systems (ESS). Our cells are manufactured to the highest quality standards, ensuring consistency, safety, and longevity. We specialize in working with OEM and ODM clients to develop custom battery solutions tailored to your specific module or pack design. Partner with us for reliable cells that form the foundation of superior energy storage products.
Key Features:
Grade-A Cell Consistency:
Rigorous grading process ensures unmatched voltage and capacity consistency for stable pack performance.
Customizable Specifications:
Available in various capacities, sizes, and terminal types to meet your design needs.
Superior Cycle Performance:
Core chemistry guarantees a long lifespan, typically 3,000+ cycles at 100% DoD.
Certified and Compliant:
Cells are tested to meet international safety and transportation standards.
Direct Factory Source:
Competitive pricing and reliable supply chain for volume buyers.
The LiFePO4 batteries VS Lead-acid batteries:
| Haicen LiFePO4 batteries | VS | Old technology-Lead-acid batteries |
| Stable discharge condition | Low temperature condition | Unstable discharge condition |
| 3,500 times | Cycle life | ＜500 times |
| Around 10 years | Design life | 3 years |
| As little as 3.5 hours | Charging time | Up to 8 hours |
| No memory, opportunity charge | Charge frequency | Must charge after use |
| Multiple built-in protections, high thermal and chemical stability | Safety | Gas inside may cause explosion |
| 85% or more nominal capacity achieved at high working load | Available capacity | Only 30%~50% nominal capacity achieved under high working load |
| Maintenance-free | Maintenance | Regular water-adding and inspection required |
| Pollution-free | Eco-friendly | Lead is a toxic substance, may cause human lead poisoning |
| Extremely low | Energy loss | 15% |
Key Points for Quality Control:
Cell match: More strict cell matching standard, the difference of lnternal resistance is 1mΩ and voltage is 5mV.
Automatic cells welding: Cells are assembled by Automatic welding equipments to ensure the quality reliability and consistency.
100% Cycle test: All battery packs are 100% cycle tested (Fully Discharged→Fully Charged→Fully Discharged→60% Charged) before package and all test reports are stored.
Unique tracking number: All battery packs are lasered an unique number on the case side for quality tracking.
Certifications:
| UL1642 (Cell) | IEC62619 (Cell) | UN38.3 (Cell / Pack) |
| IEC62133 (Cell) | ROHS (Cell) | CE (Pack) |
| UL1973 (Cell / Pack) |
Product advantages:
● Real double protection (comply with UL1973 and IEC62619).
● High Temperature Tolerance.
● Max. 16pcs in Parallel to get Max. 86kwh system.
● Compatible with most Brands inverters.
● Modular, Scalable & Proven Performance.
● Maintenance Free.

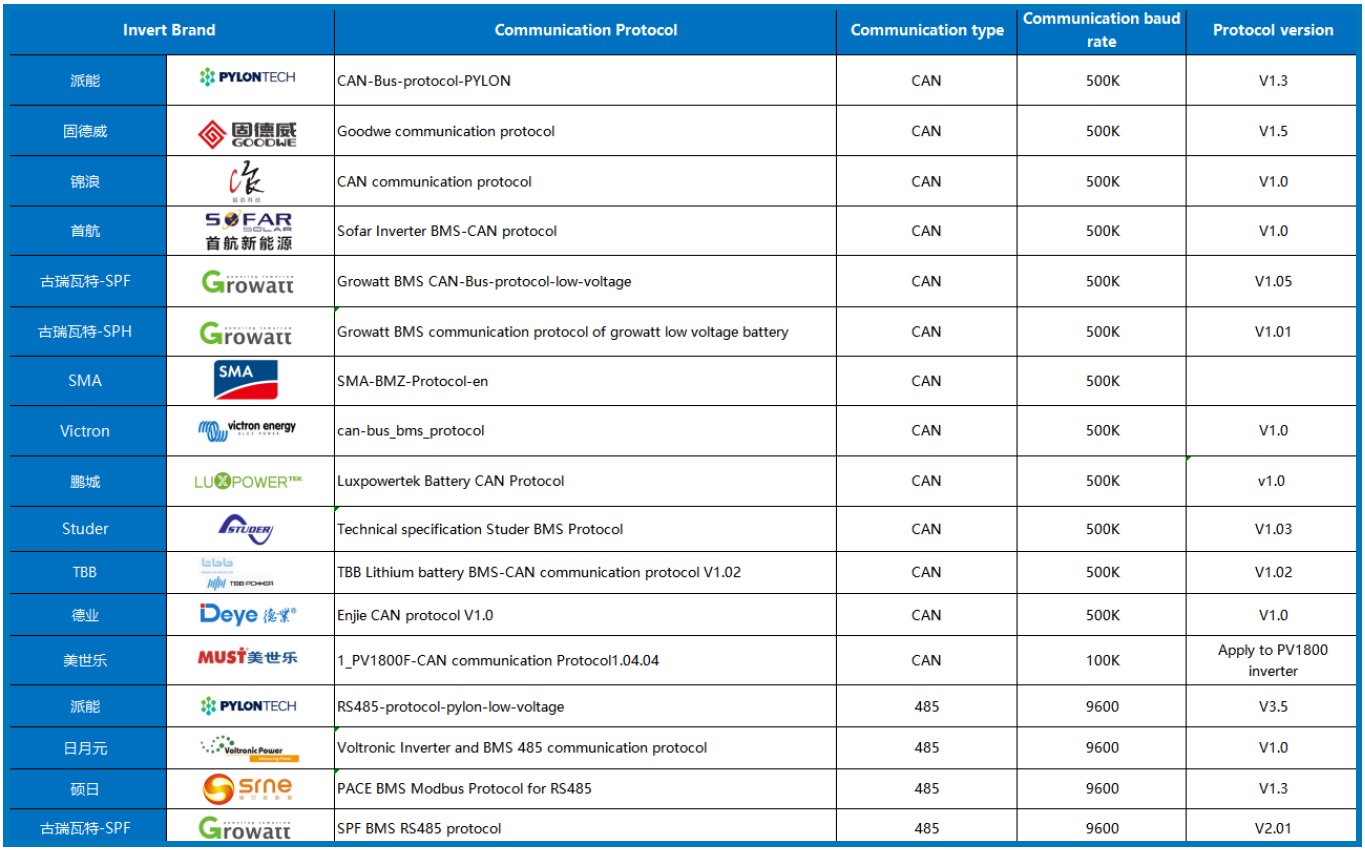

HC48106-W module could be compatible with the inverters as below:
Operating instruction:

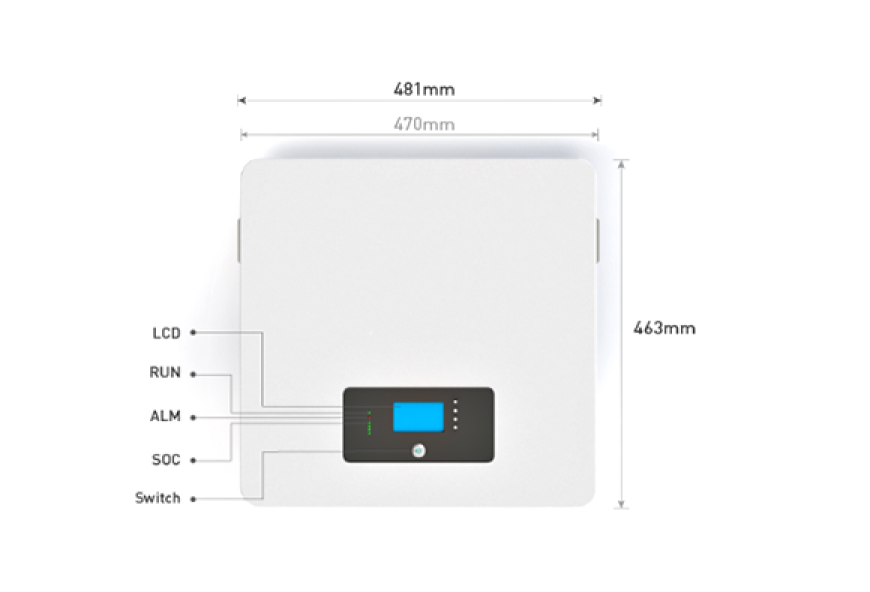

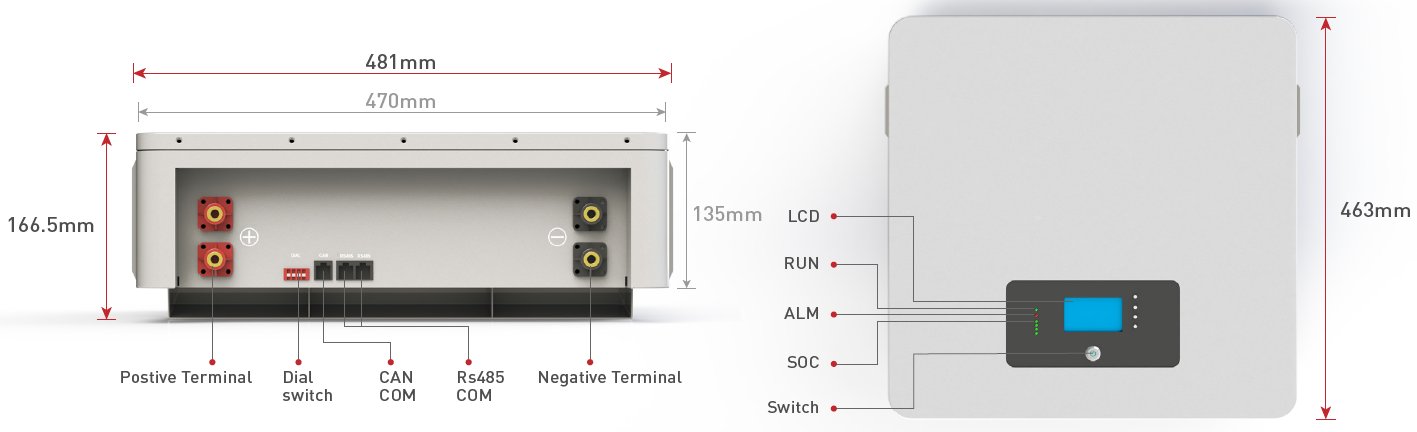

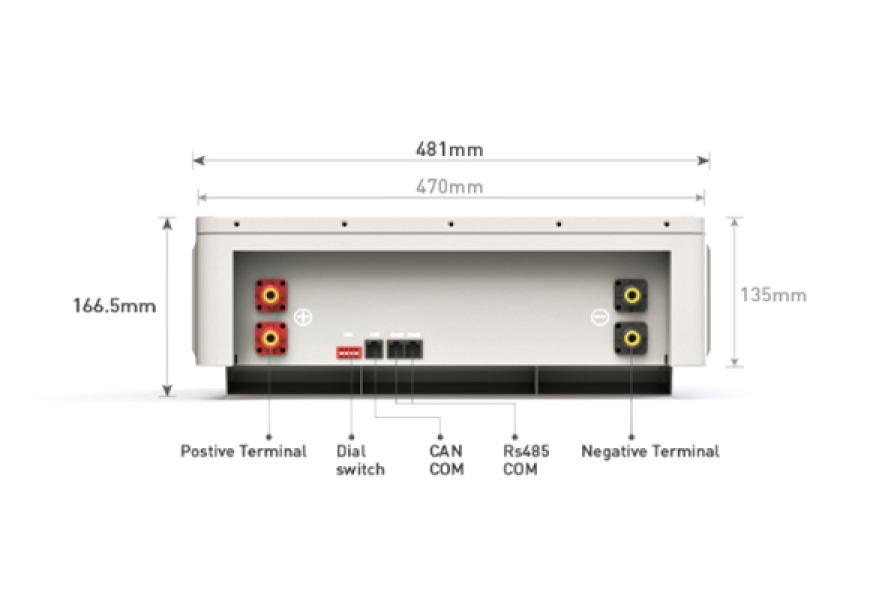

● Step 1: learn Interface Instruction and dimensions:

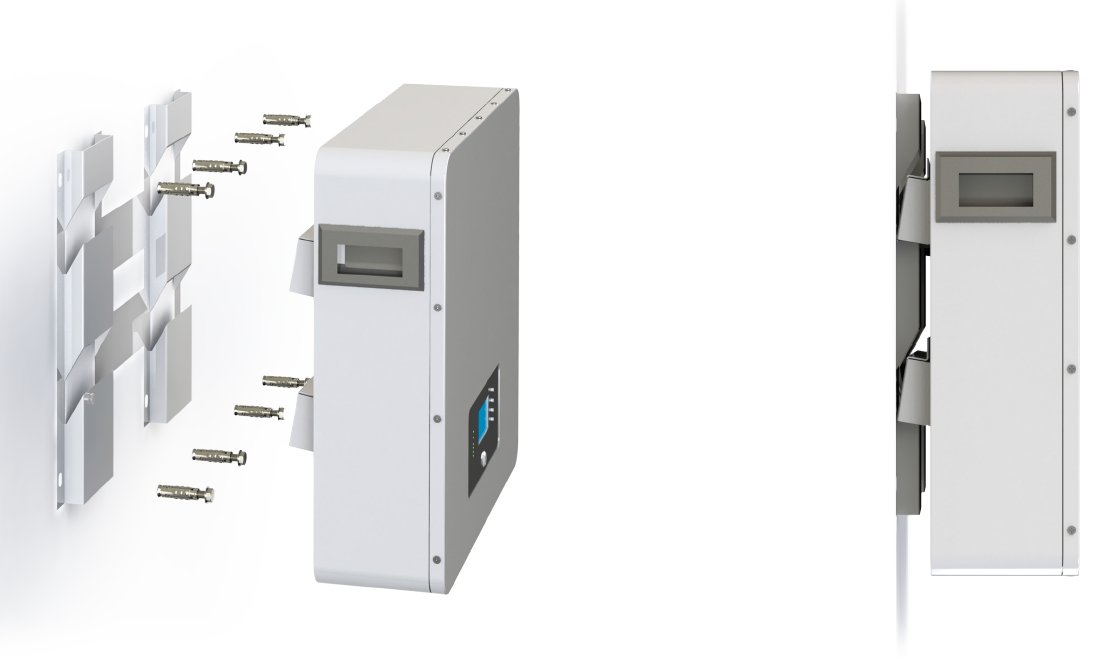

● Step 2: Installation:

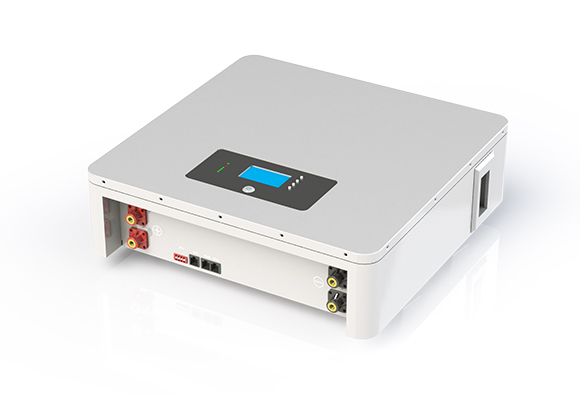

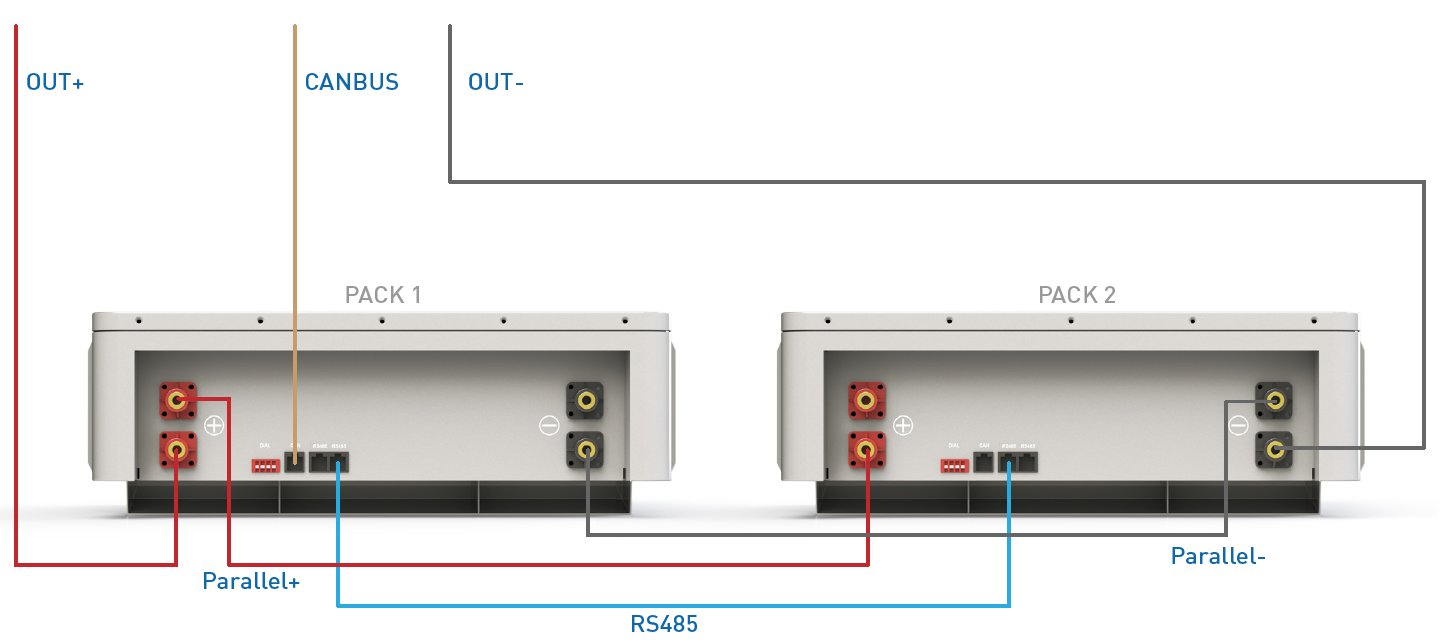

● Step 3: Connection:
● Step 4: Dialing address
Automatic dialing. Manual dialing (optional)
Single machine address setting：0000 0000

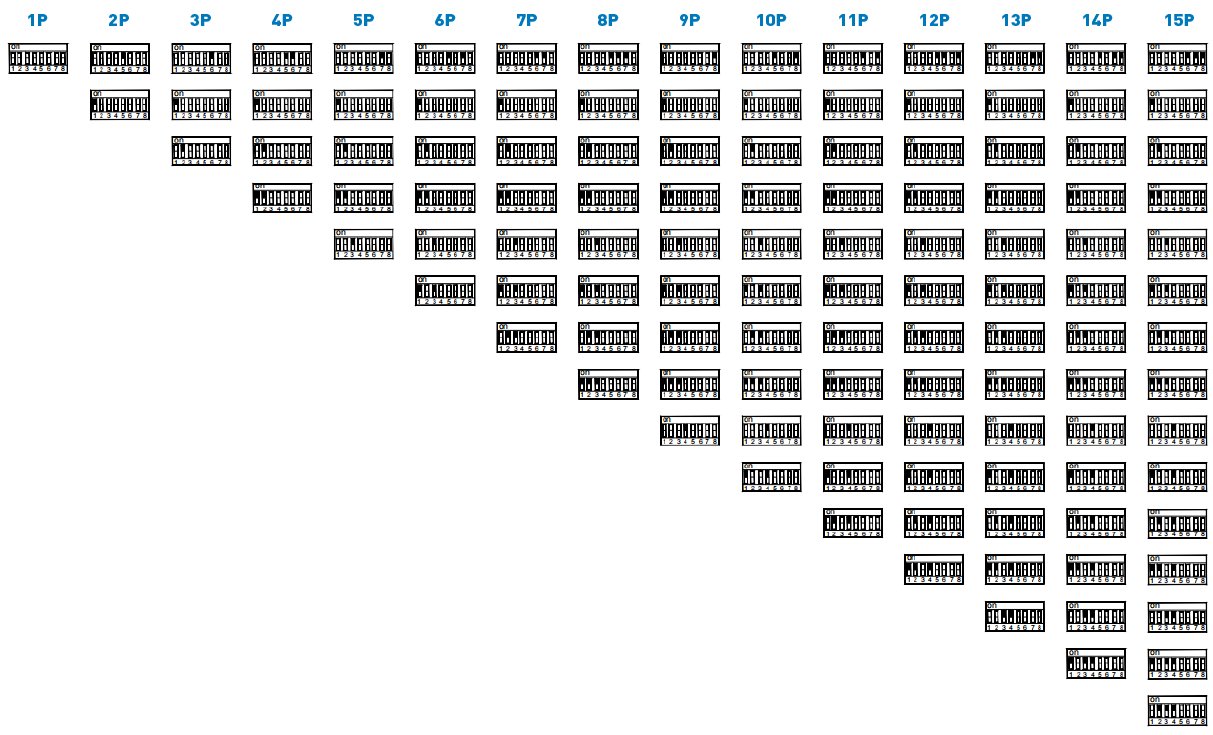

Address setting for parallel operation: the definition of dial switch is shown in the table below.
● Step 5: Turn on the switch separately
● With a load/inverter, the energy storage system start to work!
Noted:
Sleep mode:
a ：The system will immediately go to Standby mode without load or charger, and RUN LED will flash (1s ON, 1s OFF). After 48h later, the system will automatically go to sleep mode. And then all LEDs in panel will turn off.

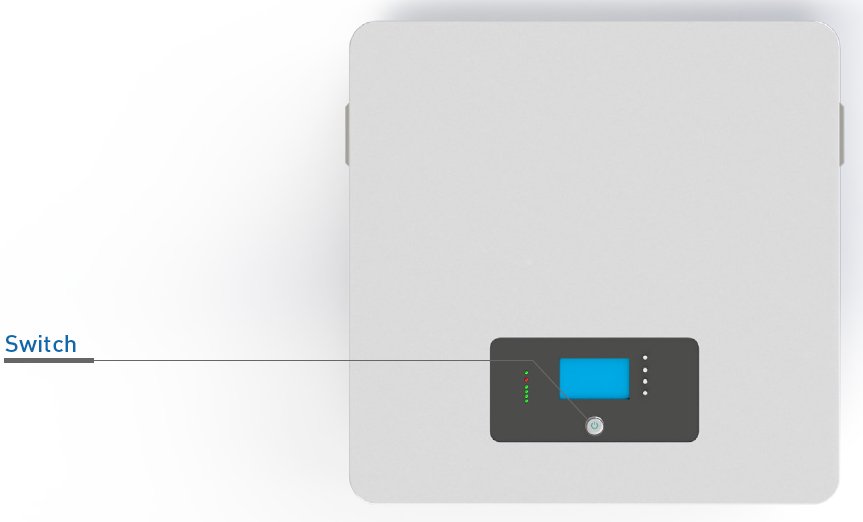

b: With the standby state, the system can be forced into sleep mode through pressing the Switch.
Wake mode:
The following operations can wake up the system from sleep mode：
a. Automatically wake up when connect to a charger.
b. Press on the “Switch” key.

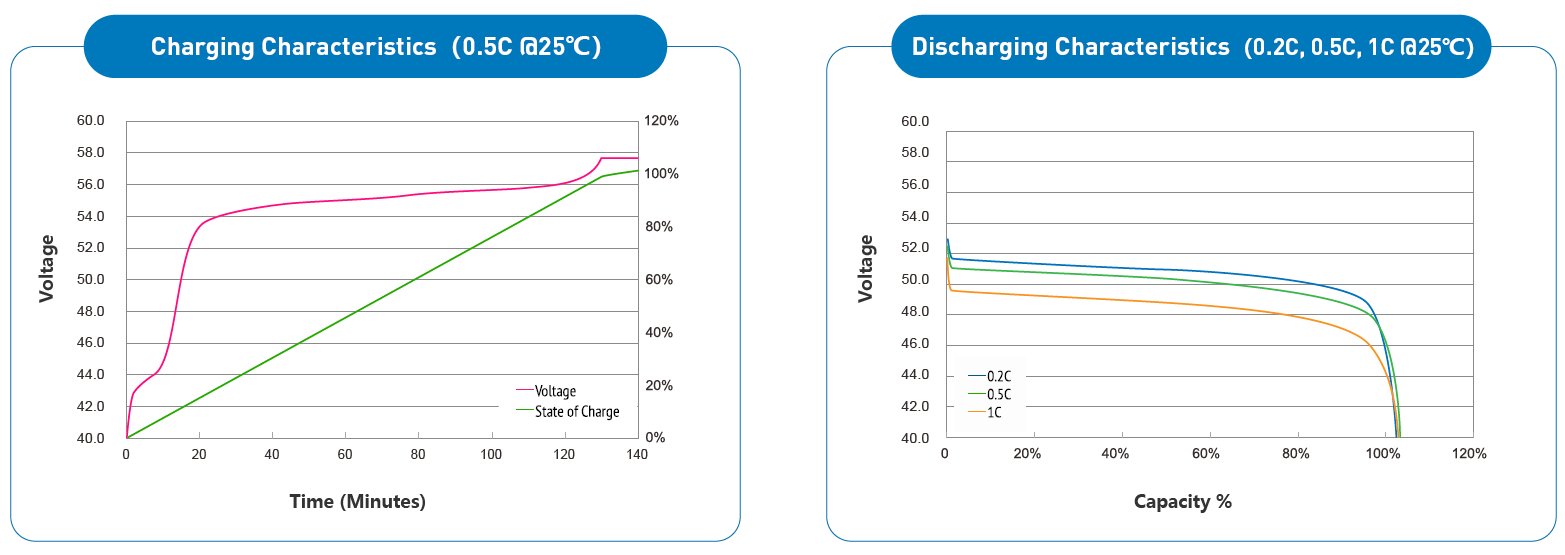

Characteristics Curve:
Market Applications:
● Core Component for ESS Battery Pack Integrators
● OEM/ODM Custom Battery Solutions
● Electric Vehicle (EV) Battery Packs
● Large-Scale Energy Storage Farm Projects
Customized items:
Bluetooth App design: Help you to design and upload customized App, or supply you our Source code for your design.
Case color: Customized case color is acceptable based on quantity more than 300pcs per batch.
Label design: We can help you to design customized label on the battery.
Carton design: Customized carton is acceptable based on quantity more than 200pcs per batch.
Certificates: 50% discount on certificates cost for first bulk order and 100% reback for future orders.
NDA agreement: NDA agreement is allowed and necessary to protect your benefits.
Ready to Upgrade Your Power?
[➔ Download the Full Specification Sheet (PDF)]
[⮟ Contact Our Experts for a Quote]
| TECH & SPECS | Model | |
| HC48100-W | ||
| Electrical Specifications | Nominal Voltage | 51.2V |
| Nominal Capacity | 106Ah | |
| Parallel Connection | Max.16units | |
| Serial Connection | No | |
| BMS | 16S100A | |
| Circuit Protection | Over charge, Over discharge, Over current, Over temp, Short, Balance | |
| Communication | 2xRs485 and 1xCAN, LCD | |
| Cycle Life | 3000times Cycles@100%DODand 6000times @80%DOD | |
| Self Discharge | Less than 3% per month | |
| Charge Efficiency | 100%@0.2C | |
| Discharge Efficiency | 98-100%@1C | |
| Charge Specifications | Charge Voltage | 57.6±0.8V |
| Standard Current | 20A | |
| Fast Current | 50A | |
| Discharge Specifications | Standard Current | 20A |
| Max. Con. Current | 100A | |
| Peak Current | 250A(2s) | |
| Cut-off Voltage | 40V | |
| Mechanical Specifications | Dimensions (mm) | 481x463x166.5mm |
| Approx Weight(KG] | 45 | |
| Terminal Type | 4*M6 | |
| Case Color/material | White Metal case | |
| Cell Type | 3.2V106Ah prismatic cell | |
| Temperature Specifications | Charge Temp | 0℃ to 55℃ (32℉to131℉) |
| Discharge Temp | -20℃ to 60℃ (-4℉ to 140℉) | |
| Storage Temp | -20℃ to 45℃ (-4℉ to 113℉) | |
